Checking M/T Oil

OIL LEAKAGE AND OIL LEVEL
1. Make sure that oil is not leaking from transaxle or around it.

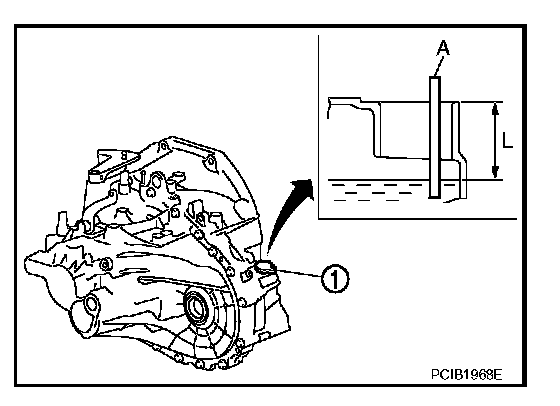

2. Remove plug (with ABS models) (1) or speedometer pinion gear (without ABS models) (1).
3. Check the oil level using suitable gauge (A) as shown.
Oil level "L": 61.0 - 67.0 mm (2.402 - 2.638 in)

CAUTION:
Do not start engine while checking oil level.

4. Set an O-ring on plug (with ABS models) (1) or speedometer pinion gear (without ABS models) (1) and then install it to transaxle. Tighten to the specified torque.

CAUTION:
Do not reuse O-ring.
