Reverse Idler Shaft and Gears

Disassembly and Assembly

DISASSEMBLY

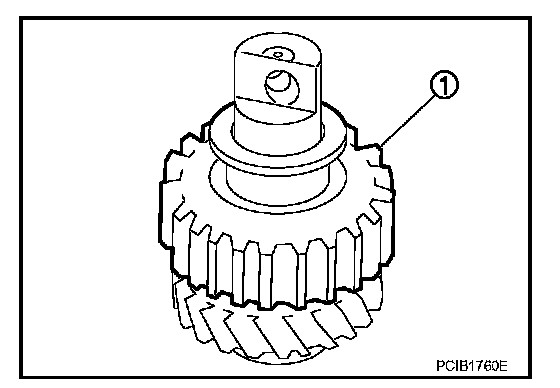

1. Remove reverse output gear (1).

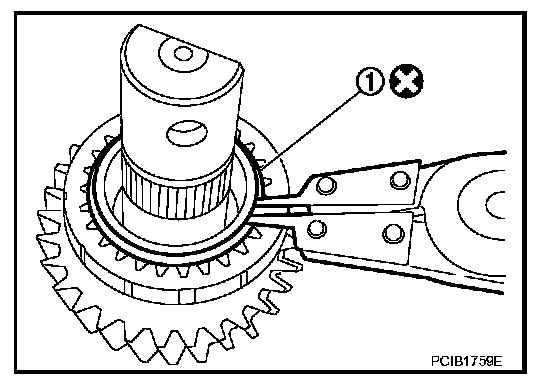

2. Remove snap ring (1).

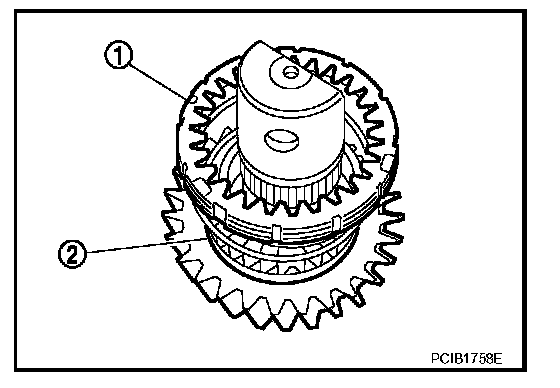

3. Remove reverse baulk ring (1) and return spring (2).

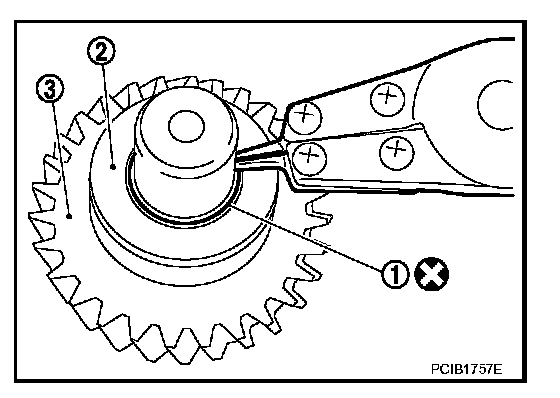

4. Remove snap ring (1), lock washer (2), reverse input gear (3) and washer.

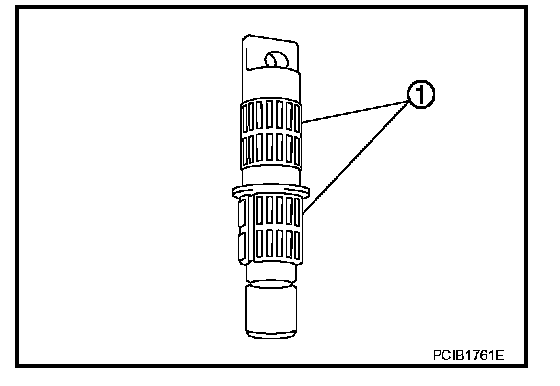

5. Remove needle bearings (1) from reverse idler shaft.
6. Remove washer from reverse idler shaft.

ASSEMBLY
Assembly is in the reverse order of disassembly.

CAUTION:
^ Do not reuse snap ring.
^ Make sure that snap ring is securely installed in the groove.
