Final Drive

Disassembly and Assembly

DISASSEMBLY

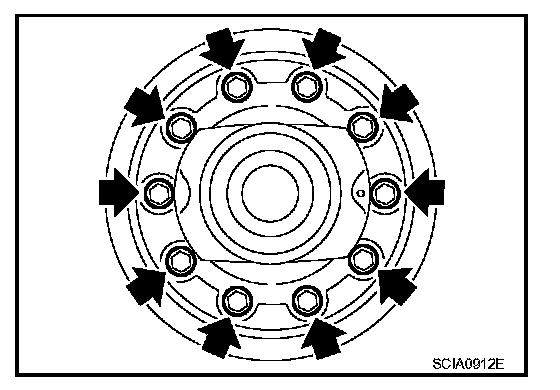

1. Remove final gear bolts and then separate the final gear from differential case.

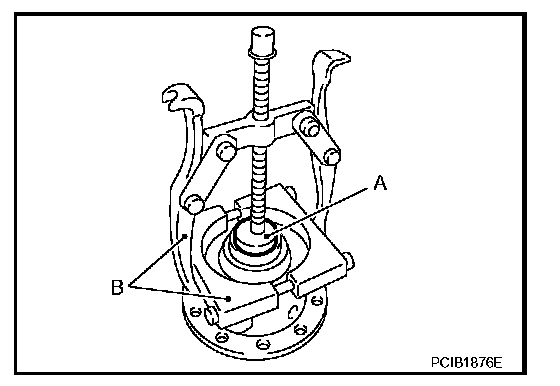

2. Remove differential side bearing (clutch housing side) using Tool and pullers (B).
Tool number A: ST33061000 (J-8107-2)

CAUTION:
Hook a puller on the cage of differential side bearing.

3. Remove speedometer drive gear.

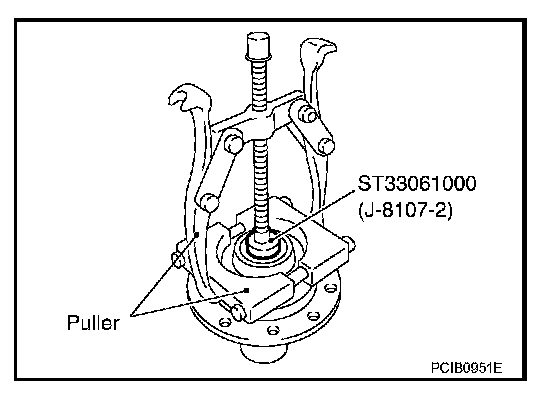

4. Remove differential side bearing (transaxle case side) using Tool and puller.

CAUTION:
Hook a puller on the inner race of differential side bearing.

INSPECTION AFTER DISASSEMBLY

Bearing





^ Check for bearings damage and rough rotation. If necessary, replace with a new one.

CAUTION:
When replacing tapered roller bearing, replace outer and inner races as a set.

ASSEMBLY





1. Press in differential side bearing (transaxle case side) to differential case using Tools.

CAUTION:
Replace differential side bearing and differential side bearing outer race as a set.

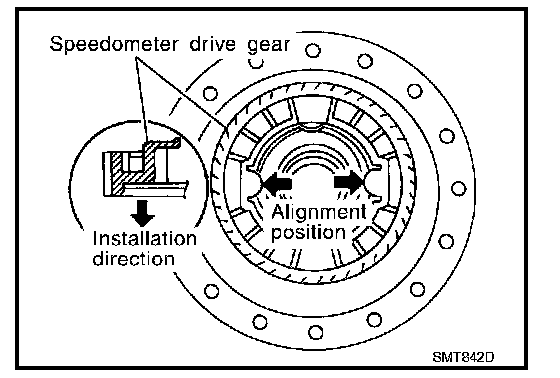

2. Align and install speedometer drive gear onto differential case.

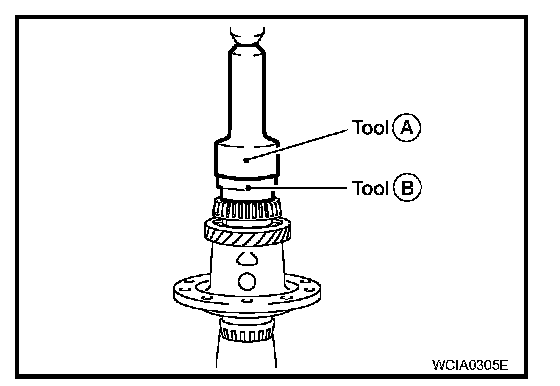

3. Press in differential side bearing (clutch housing side) to differential case using Tools.
Tool number
A: ST30720000 (J-25405)
B: KV38102510 ( - )

CAUTION:
^ Do not reuse differential side bearing and differential side bearing outer race.
^ Replace differential side bearing and differential side bearing outer race as a set.





4. Install final gear into differential case and tighten final gear bolts to the specified torque.
