Shift Control

Disassembly and Assembly

DISASSEMBLY

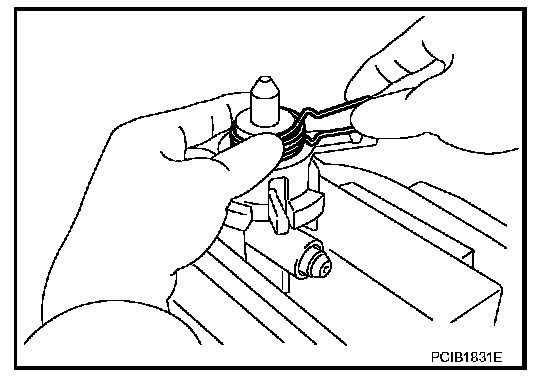

1. Remove return spring to striking rod assembly

INSPECTION AFTER DISASSEMBLY

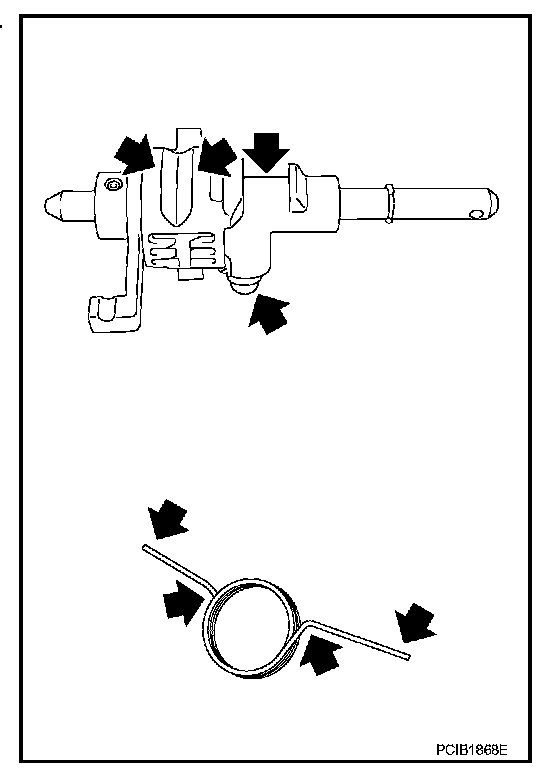

Striking Rod Assembly and Return Spring





^ Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts.

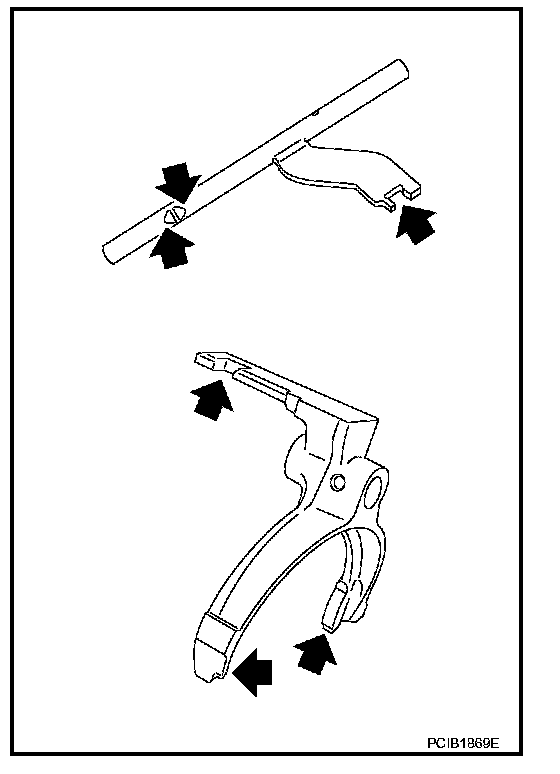

Fork Rod and Shift Fork





^ Check contact surfaces and sliding area for wear, damage, bending, etc. If necessary, replace parts.

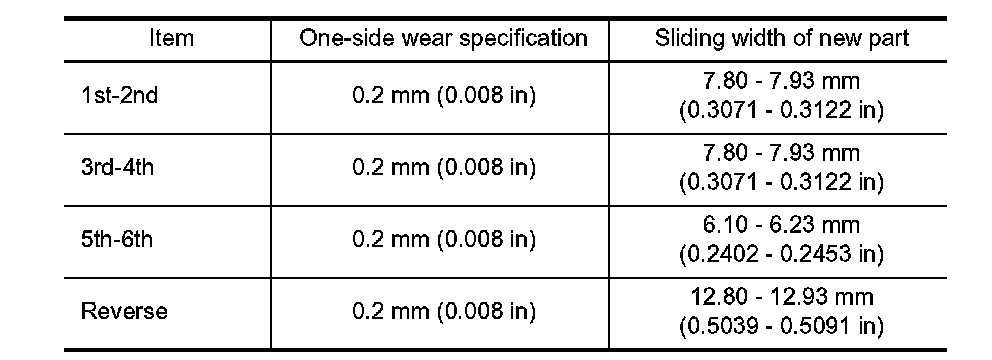

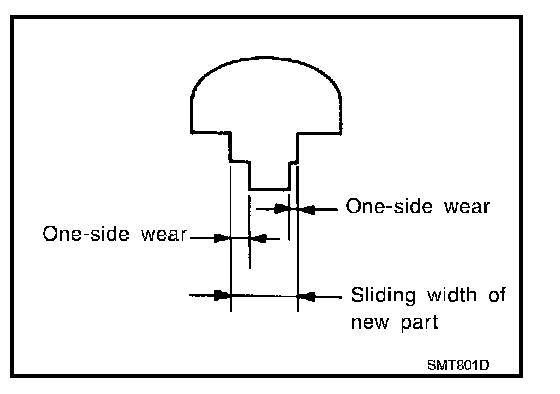

^ Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.

ASSEMBLY

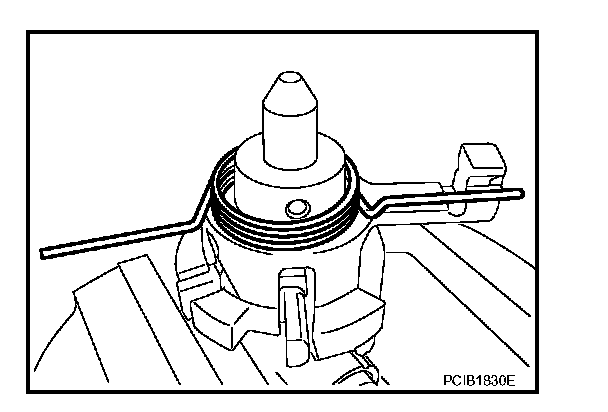

1. Temporarily install return spring to striking rod assembly.

CAUTION:
Be careful with the orientation of return spring.

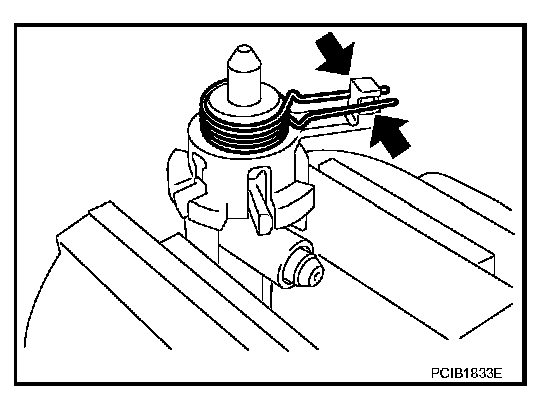

2. Attach one end of the return spring to striking interlock of striking rod assembly while holding return spring.

CAUTION:

^ When installing, check that return spring is securely seated in the groove of striking interlock of striking rod assembly.
