CVT Does Not Shift In Manual Mode
CVT Does Not Shift in Manual ModeSYMPTOM:
Speed does not change even if the selector lever is put in the manual shift gate position and the selector lever is operated to + side or to - side.
DIAGNOSTIC PROCEDURE
1.CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis check. Refer to CVT-44, "CONSULT-III Function (TRANSMISSION)". Pinout Values and Diagnostic Parameters
Is any malfunction detected by self-diagnosis?
YES >> Check the malfunctioning system. Refer to CVT-46, "CONSULT-III Function (TRANSMISSION)". Consult-III Function (Transmission)
NO >> GO TO 2.
2.CHECK MANUAL MODE SWITCH
Check the manual mode switch circuit. Refer to CVT-104. P0826
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3.CHECK CVT POSITION
Check CVT position. Refer to CVT-173, "Checking of CVT Position". Testing and Inspection
OK or NG
OK >> GO TO 4.
NG >> Adjust CVT position. Refer to CVT-173, "Adjustment of CVT Position". Adjustments

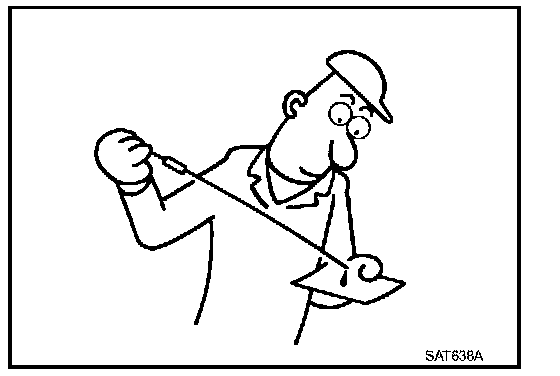

4.CHECK CVT FLUID LEVEL
Check CVT fluid level. Refer to CVT-14, "Checking CVT Fluid". Changing CVT Fluid
OK or NG
OK >> GO TO 5.
NG >> Refill CVT fluid.

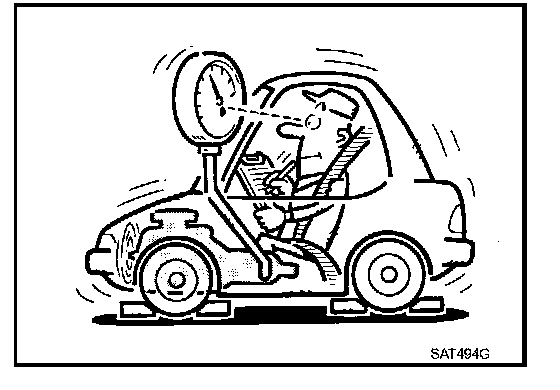

5.CHECK LINE PRESSURE
Check line pressure at idle. Refer to CVT-35, "Inspections before Trouble Diagnosis. Inspections Before Trouble Diagnosis
OK or NG
OK >> GO TO 6.
NG >> Check the malfunctioning item. Refer to CVT-35, "Inspections before Trouble Diagnosis". Inspections Before Trouble Diagnosis
6.CHECK SYMPTOM
Check again. Refer to CVT-41, "Cruise Test". Cruise Test
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7.CHECK TCM
1. Check TCM input/output signals. Refer to CVT-44, "TCM Input/Output Signal Reference Value". Pinout Values and Diagnostic Parameters
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> Replace the transaxle assembly.
NG >> Repair or replace damaged parts.
