Primary Speed Sensor

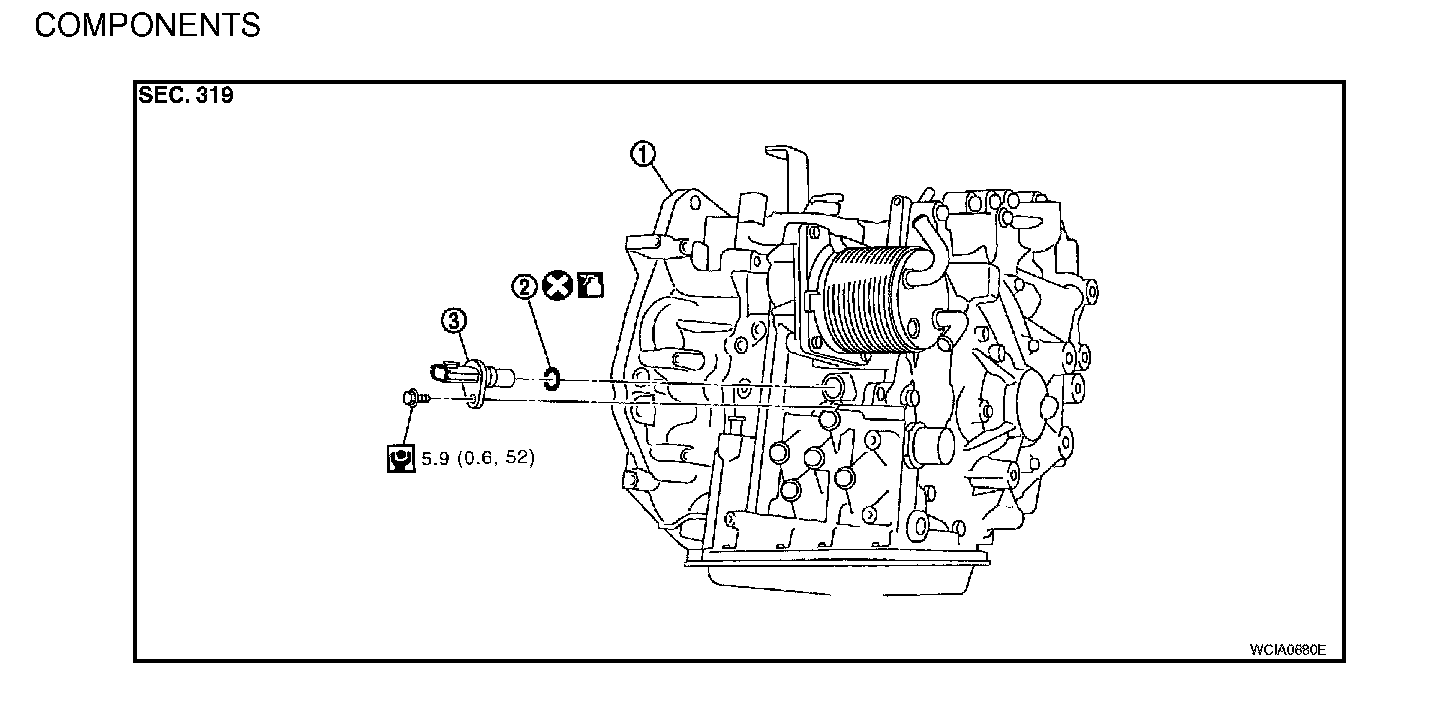

Primary Speed SensorCVT-179 Components (Part 1):
CVT-179 Components (Part 2):
CAUTION:
^ Do not reuse O-ring.
^ Apply CVT fluid to O-ring.
^ After installation is complete, check for CVT fluid leakage and CVT fluid level. Refer to CVT-14, "Checking CVT Fluid". Changing CVT Fluid
