Control Module: Service and Repair

TRANSMISSION CONTROL MODULE

Removal and Installation

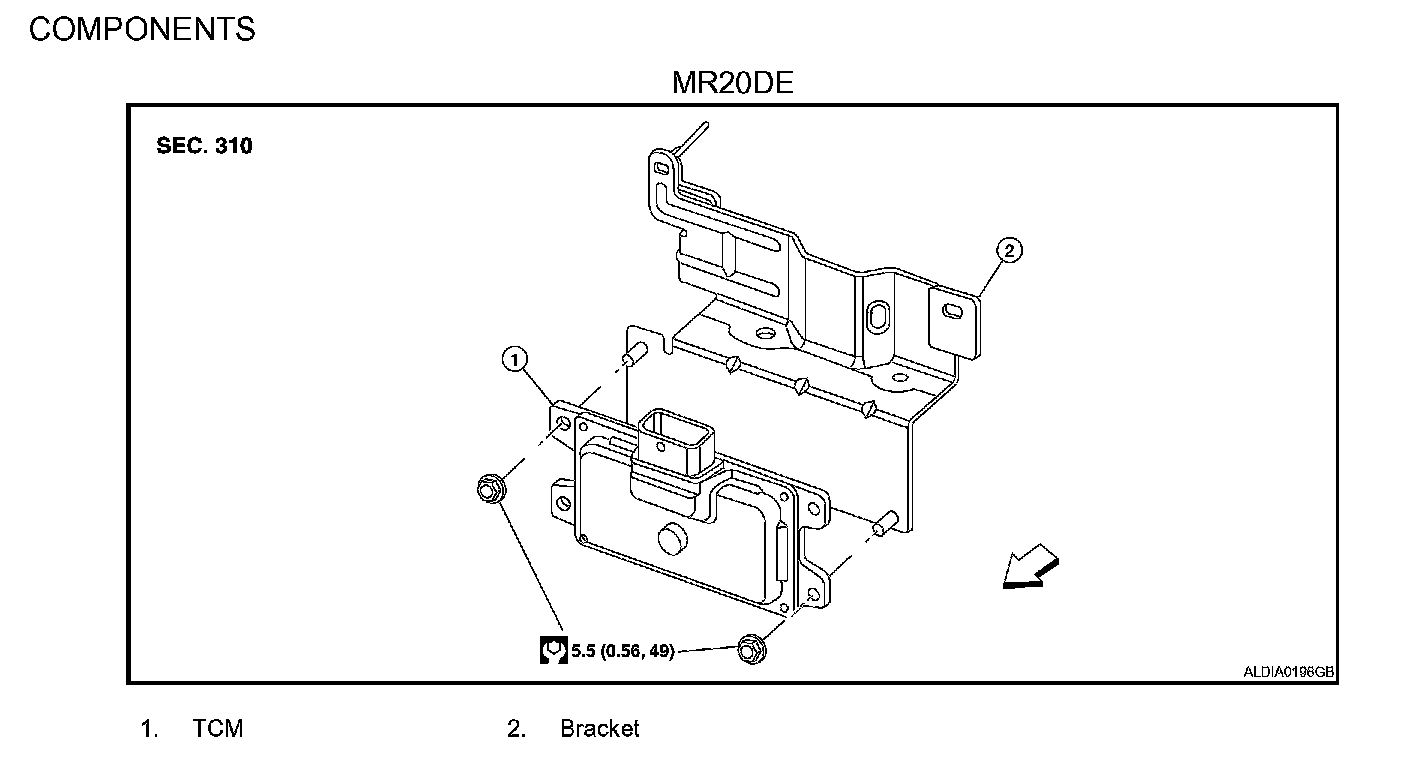

CVT-165 Components:

REMOVAL
1. Disconnect the battery negative terminal.
2. Remove the fresh air intake tube (upper).
3. Disconnect the TCM harness connector.
4. Remove the TCM (1).

INSTALLATION
Installation is in the reverse order of removal.
