Scan Tool Testing and Procedures
CONSULT-III CHECKING SYSTEMDescription
- When the CONSULT-III is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.
- Refer to"CONSULT-III Software Operation Manual" for more information.

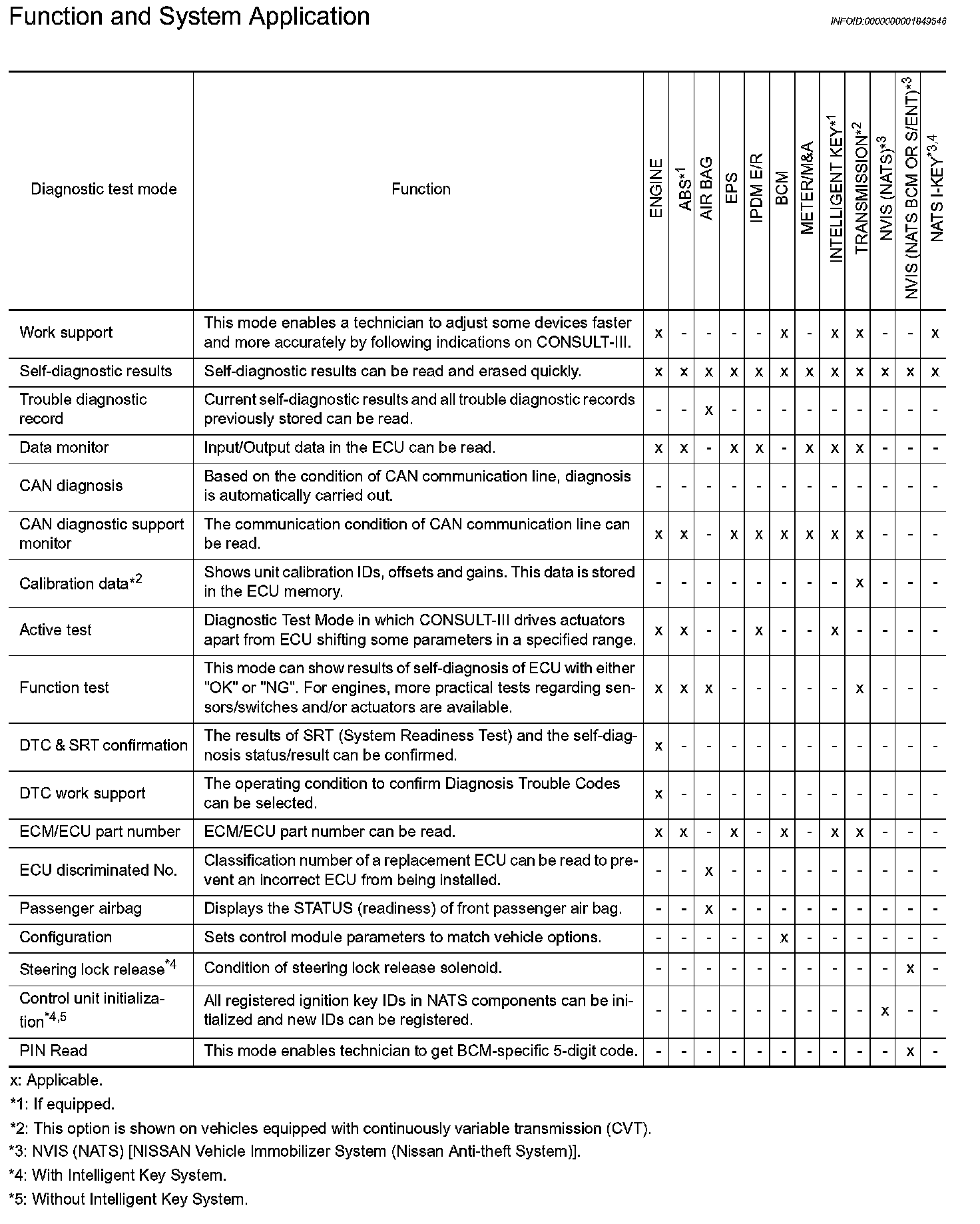

Function and System Application
CONSULT-III Data Link Connector (DLC) Circuit:
CONSULT-III Data Link Connector (DLC) Circuit

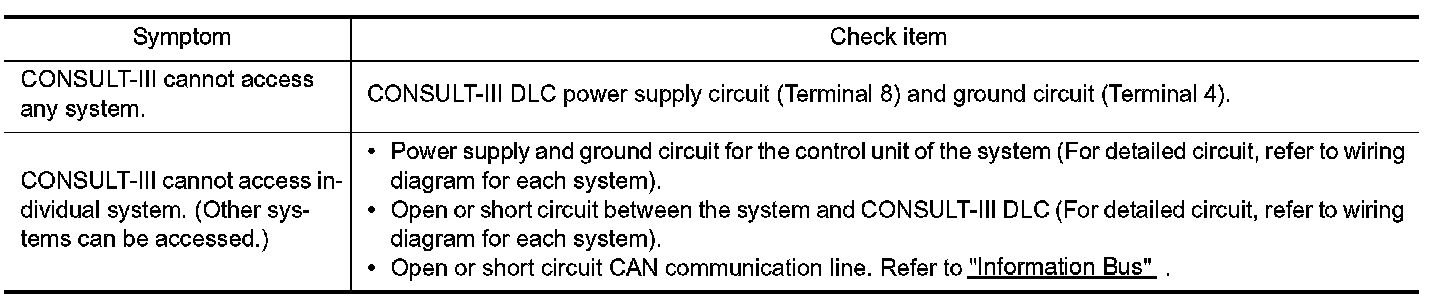

INSPECTION PROCEDURE
If the CONSULT-III cannot diagnose the system properly, check the following items.
NOTE: The DDL1 and DDL2 circuits from DLC pins 6, 7 and 14 may be connected to more than one system. A short in a DDL circuit connected to a control unit in one system may affect CONSULT-III access to other systems.
