Power Distribution Module: Service and Repair

Removal and Installation of IPDM E/R

REMOVAL

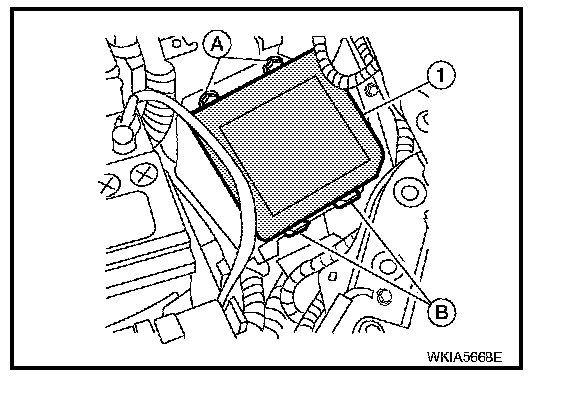

1. Lift up the IPDM E/R while pushing and opening pawls (A) or (B) and remove the IPDM E/R while pushing and opening the other side pawls.
2. Disconnect harness connector.

INSTALLATION
Installation is the reverse order of removal.
