Auxiliary Power Outlet: Service and Repair
Removal and InstallationREMOVAL
1. Remove the center console.
2. Remove the instrument lower covers (LH) and (RH).
3. Remove the instrument lower cover (center).

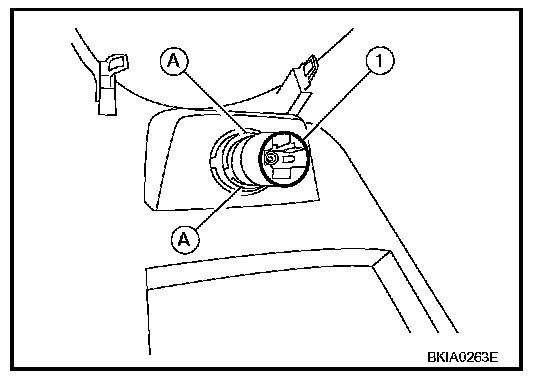

4. Remove the power socket (1) while pressing the tabs (A) on the ring, disconnect the power socket connector.
INSTALLATION
Installation is in the reverse order of removal.
