Removal and Replacement

Removal and Installation MR2ODE

REMOVAL MR2ODE

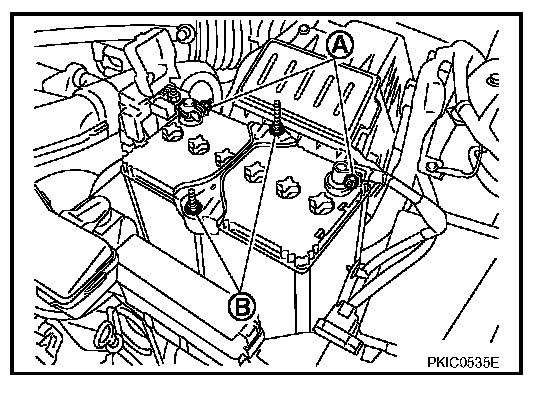

1. Loosen battery terminal nuts (A) and disconnect both negative and positive battery cables from battery terminals.

CAUTION: When disconnecting, disconnect the battery cable from the negative terminal first.

2. Remove battery frame nuts (B) and battery frame.
3. Remove battery shield.
4. Remove battery.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: When connecting, connect the battery cable to the positive terminal first.

Battery frame nuts : 3.9 N.m (0.55 kg-m, 48 in-lb)
Battery terminal nuts : 5.4 N.m (0.55 kg-m, 48 in-lb)

Reset electronic systems as necessary. Refer to Required Procedures After Battery Disconnection.
