Wheel Stud / Lug Nut

Wheel Fastener

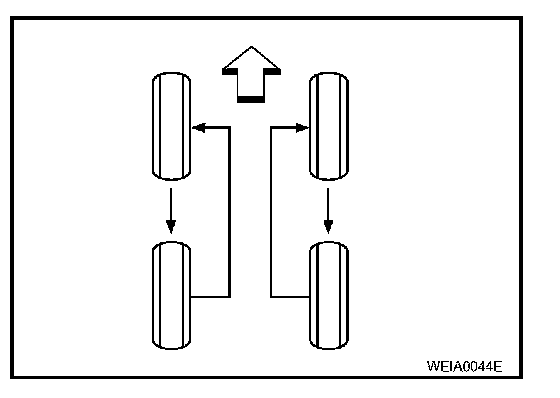

^ Follow the maintenance schedule for tire rotation service intervals. Refer to MA-7.
^ <---: Front
^ Do not include the T-type spare tire when rotating tires.
^ Tighten wheel nuts to specification.

CAUTION:
^ When installing wheels, tighten them diagonally by dividing the work two to three times in order to prevent the wheels from developing any distortion.
^ Be careful not to tighten wheel nut at torque exceeding the specification to prevent damage of disc rotor.

Wheelnut 108 Nm (11 kg-m, 80 ft-lb)
^ After rotating the tires, adjust the tire pressure. Refer to WT-26, "Tire". Specifications
