Intake Manifold

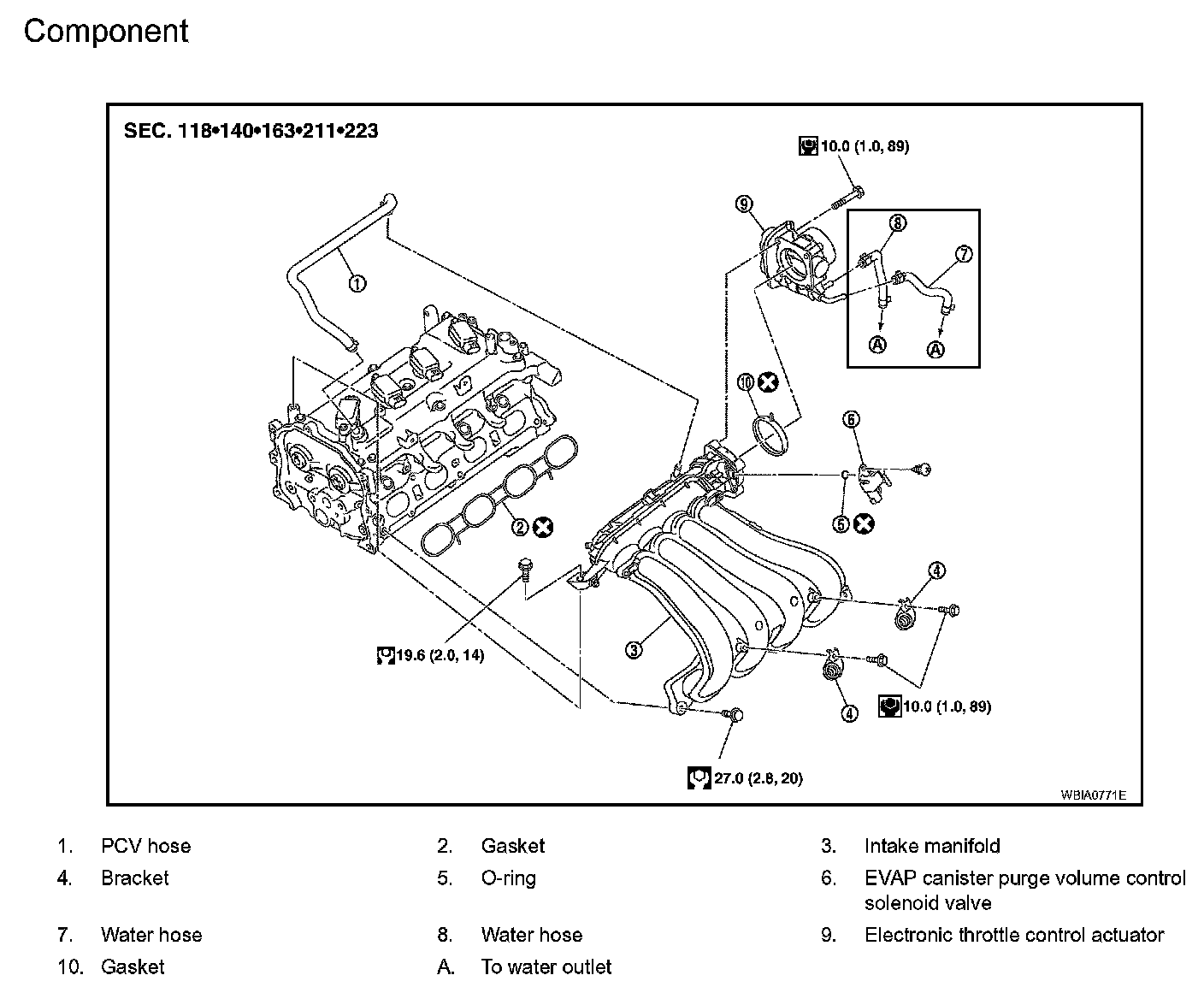

EM-18 Component:

Intake Manifold

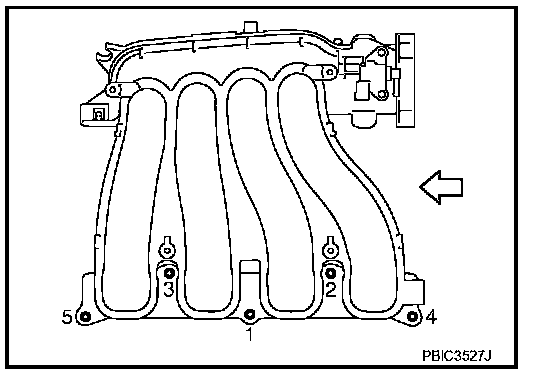

Tighten bolts in numerical order as shown.
<---: Engine front

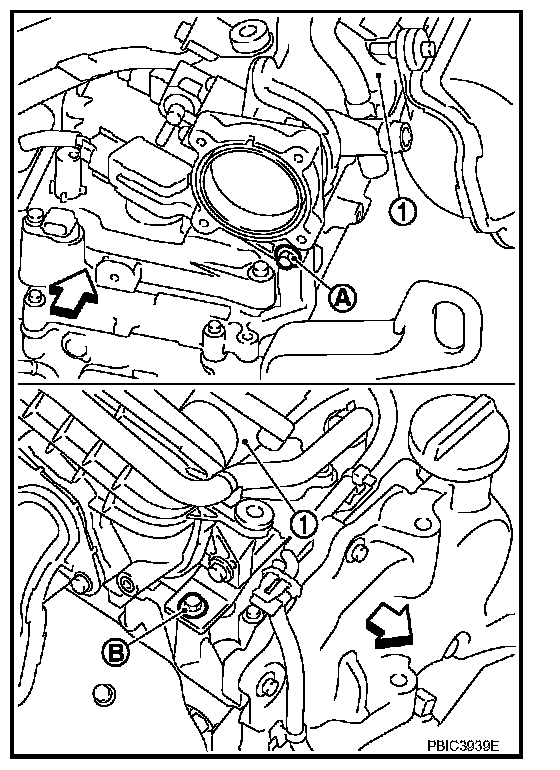

Tighten intake manifold bolt (A). Then tighten intake manifold bolt (B).
1: Intake Manifold
<---: Engine front
