Transmission Position Sensor/Switch: Description and Operation

CVT INDICATOR

System Description

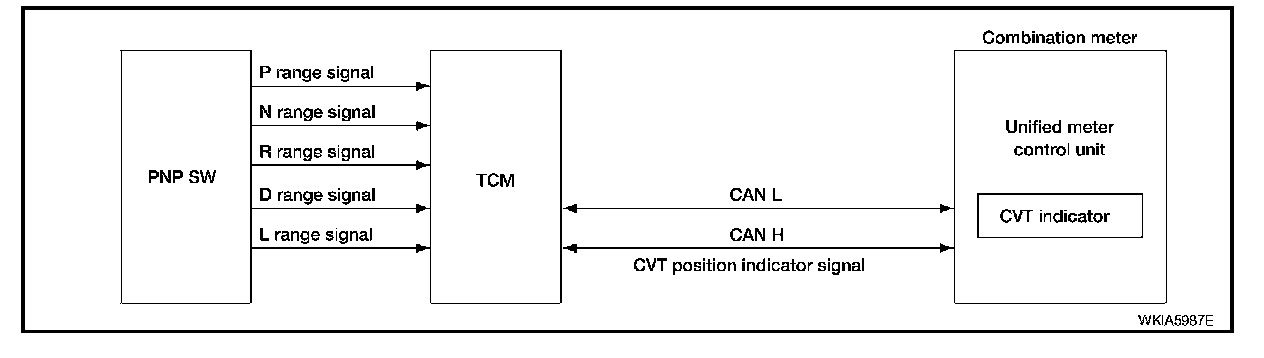

The TCM receives CVT indicator signals from the park/neutral position (PNP) switch. The TCM then sends CVT position indicator signals to the combination meter via CAN communication lines. The combination meter indicates the received shift position.
