Collision Diagnosis

COLLISION DIAGNOSIS

For Frontal Collision
Check the SRS components using the following table.
- After the work is completed perform self-diagnosis to check that no malfunction is detected. Refer to SRS-19. "SRS Operation Check". [1][2]Component Tests and General Diagnostics

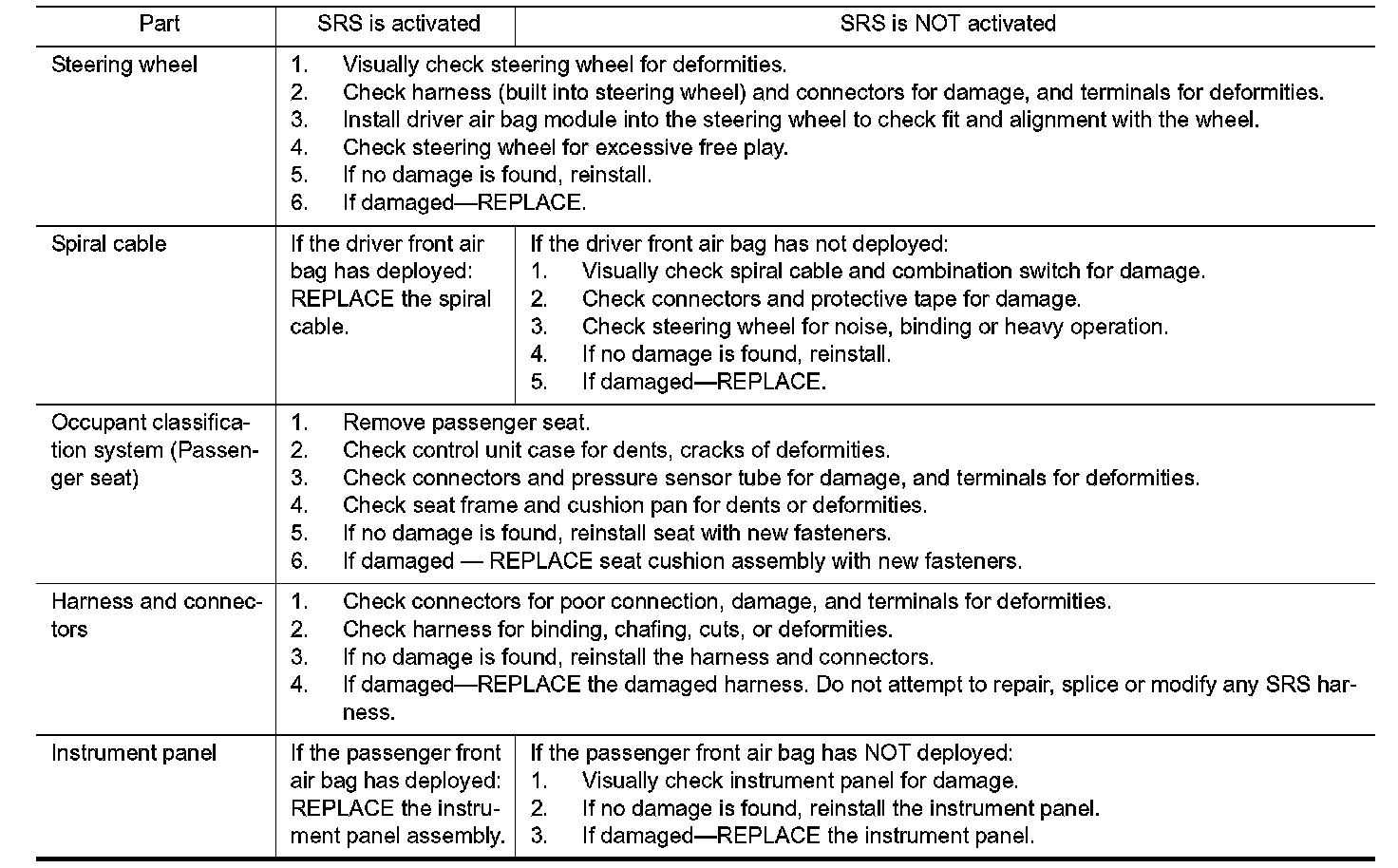

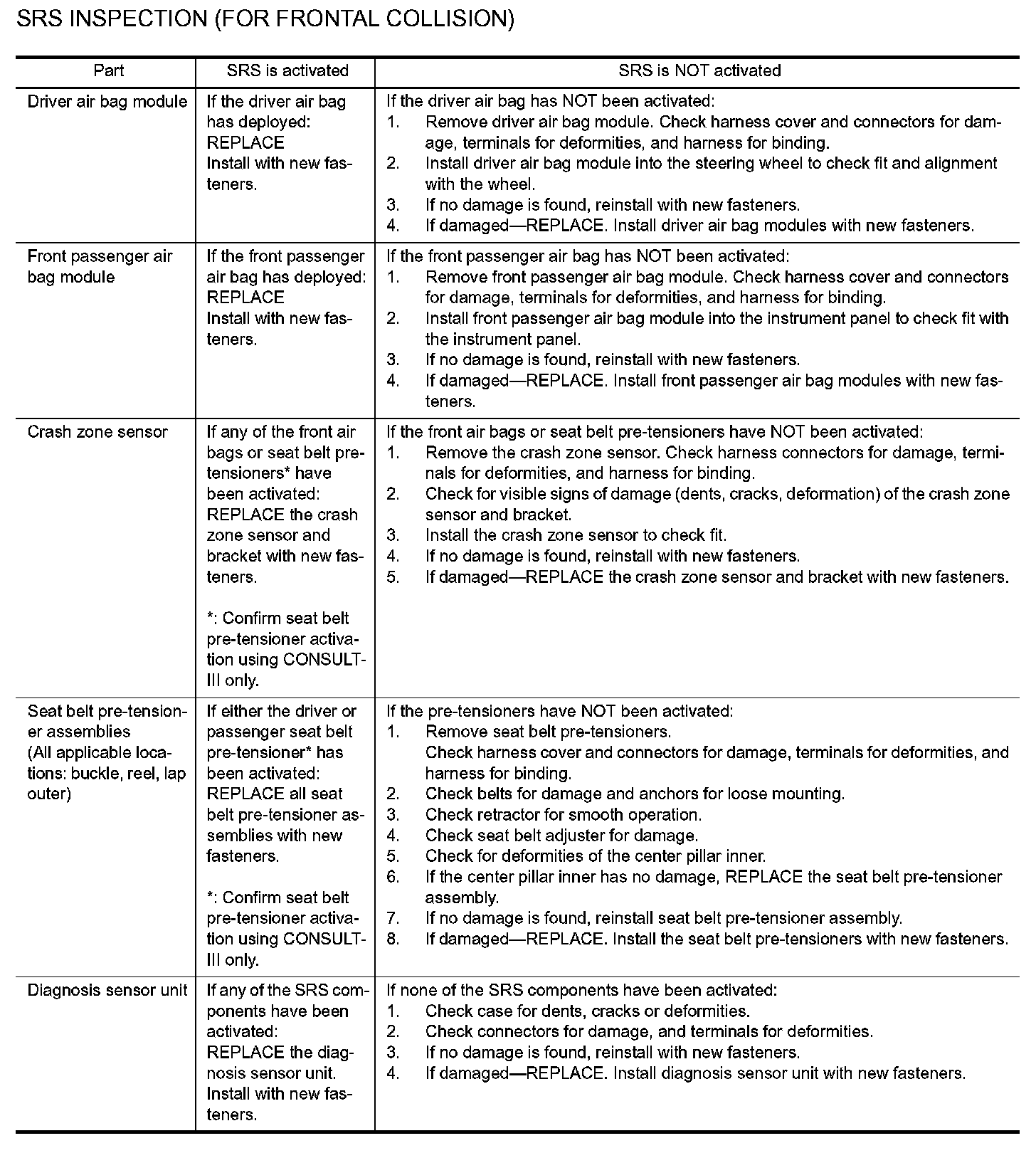

SRS INSPECTION (FOR FRONTAL COLLISION)









For Side and Rollover Collision
Check the SRS components using the following table.
- After the work is completed perform self-diagnosis to check that no malfunction is detected. Refer to SRS-19. "SRS Operation Check. [1][2]Component Tests and General Diagnostics

WHEN SRS IS ACTIVATED IN THE SIDE OR ROLLOVER COLLISION
1. Replace the following components:
- Front seat back assembly (on the side on which side air bag is activated)
- Diagnosis sensor unit
- (LH or RH) side air bag (satellite) sensor (on the side on which side air bag is activated)

2. Check the SRS components and the related parts using the following table.
- Replace any SRS components and the related parts showing visible signs of damage (dents cracks deform ation).

3. Conduct self-diagnosis using CONSULT-III and "AIR BAG" warning lamp. Refer to SRS-19. "SRS Operation Check" for details. Ensure entire SRS operates properly. [1][2]Component Tests and General Diagnostics

WHEN SRS IS NOT ACTIVATED IN THE SIDE OR ROLLOVER COLLISION
1. Check the SRS components and the related parts using the following table.
- If the front seat back assembly is damaged, the front seat back assembly must be replaced.

2. Conduct self-diagnosis using CONSULT-III and AIR BAG" warning lamp. Refer to SRS-19. "SRS Operation Check" for details. Ensure entire SRS operates properly. [1][2]Component Tests and General Diagnostics

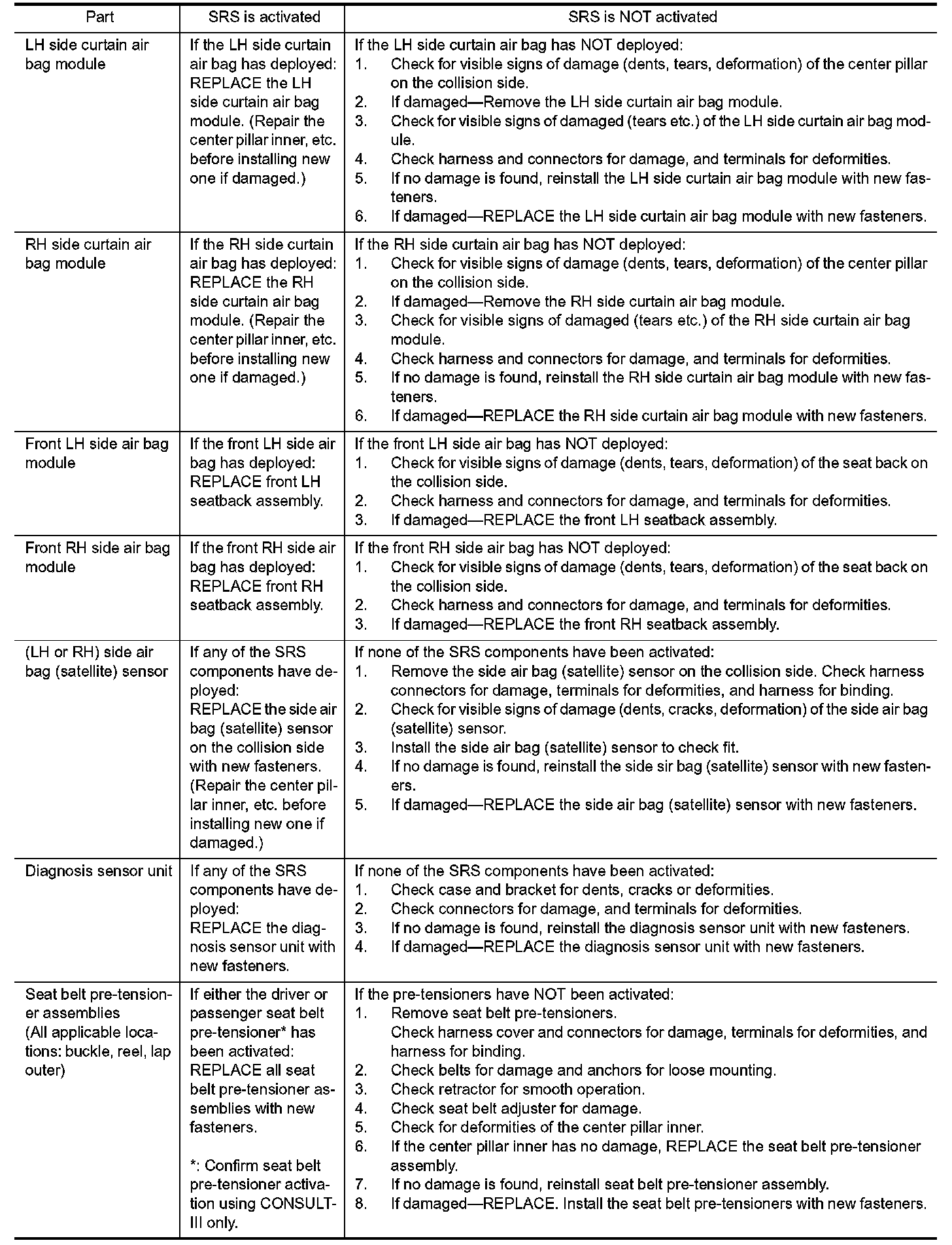

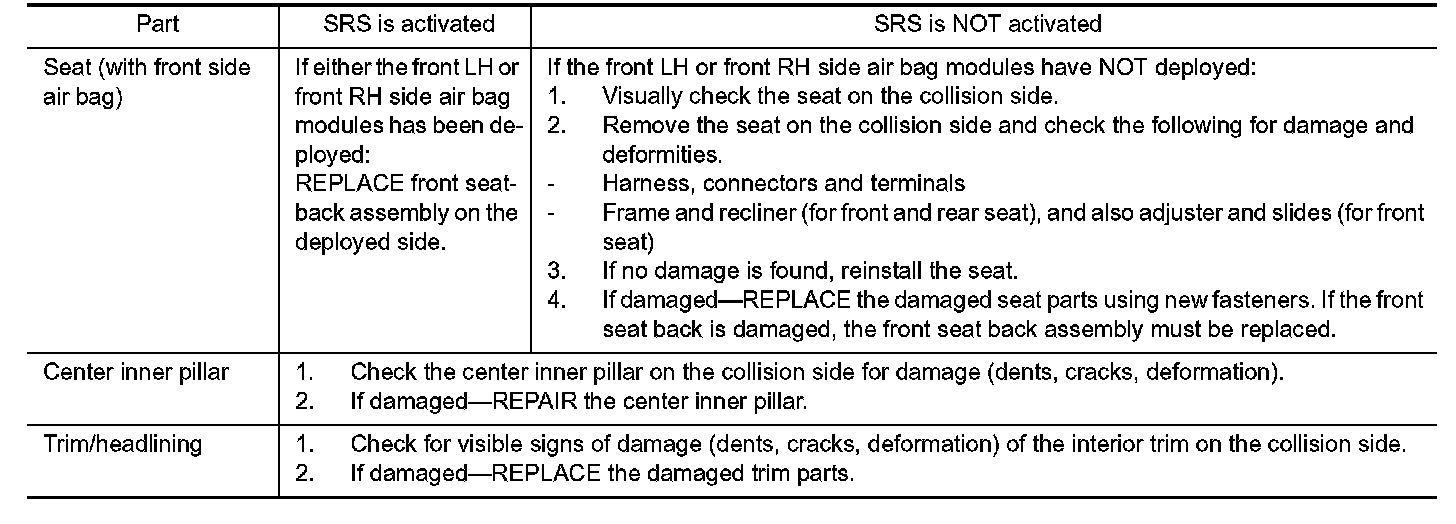

SRS INSPECTION (FOR SIDE AND ROLLOVER COLLISION)
