Direct-Connect SRS Component Connectors

Direct-connect SRS Component Connectors
The following SRS components use direct-connect style harness connectors.
- Driver air bag module
- Passenger air bag module
- LH side curtain air bag module
- RH side curtain air bag module
- Front LH seat belt pre-tensioner
- Front RH seat belt pre-tensioner

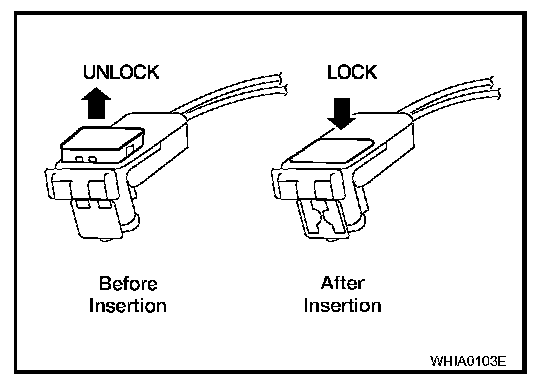

Always pull up to release the locking tab prior to removing connector from SRS component.
Always push down to lock the locking tab after installing connector to SRS component. When locked the locking tab is level with the connector housing.
