Shift Position Indicator Circuit
SHIFT POSITION INDICATOR CIRCUITDescription
TCM sends the switch signals to combination meter via CAN communication line. Then selector lever position is indicated on the shift position indicator.

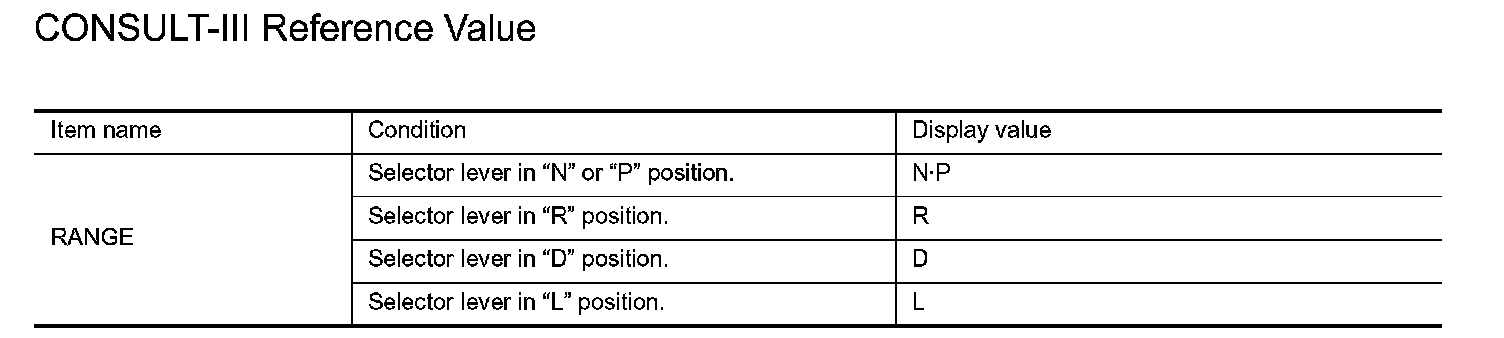

CONSULT-III Reference Value:
Diagnosis Procedure
1.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select "MAIN SIGNALS" in "DATA MONITOR" mode for "TRANSMISSION" with CONSULT-III and read out the value of "RANGE".
3. Check that the following three positions or indicators are same.
^ Actual position of the selector lever
^ "RANGE" on CONSULT-III screen
^ Shift position indicator in the combination meter
OK or NG
OK >> INSPECTION END

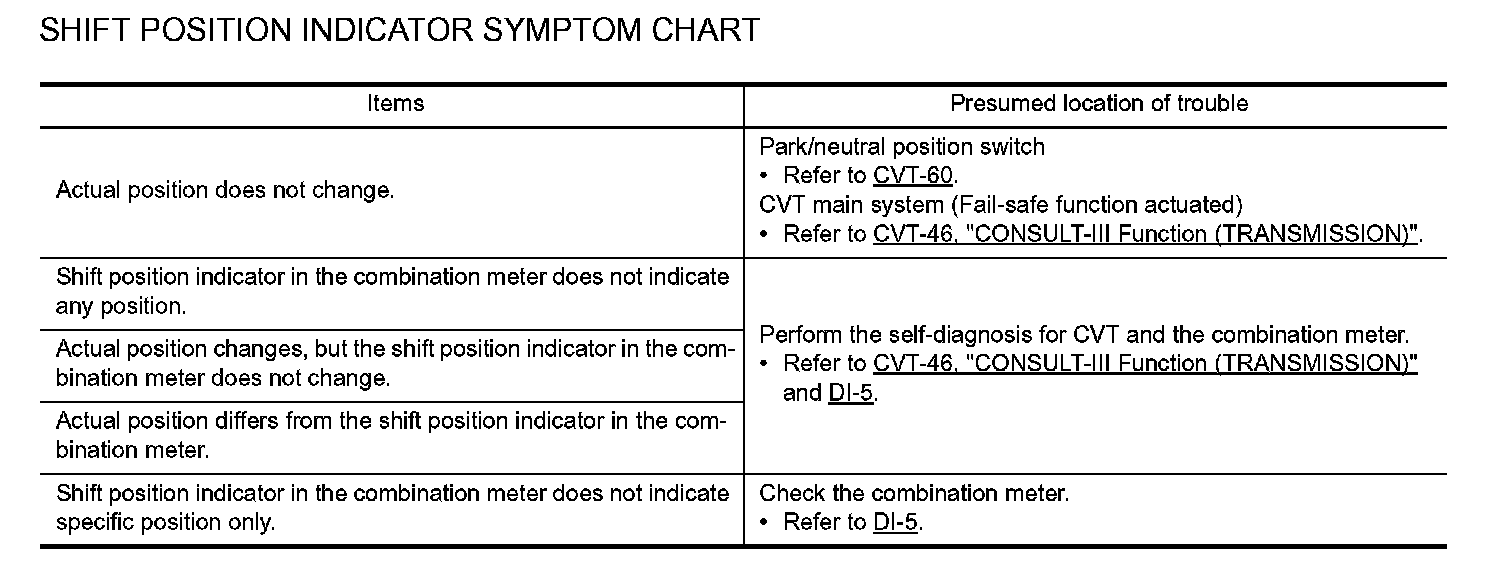

NG >> Check the following.
