Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Lamps and Indicators - Transmission and Drivetrain >> Lamps and Indicators - CVT >> Shift Indicator - CVT >> Testing and Inspection

Shift Indicator - CVT: Testing and Inspection

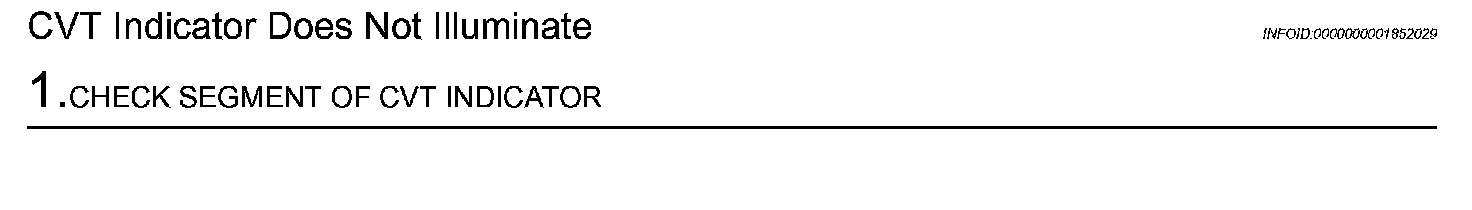

Step 1:

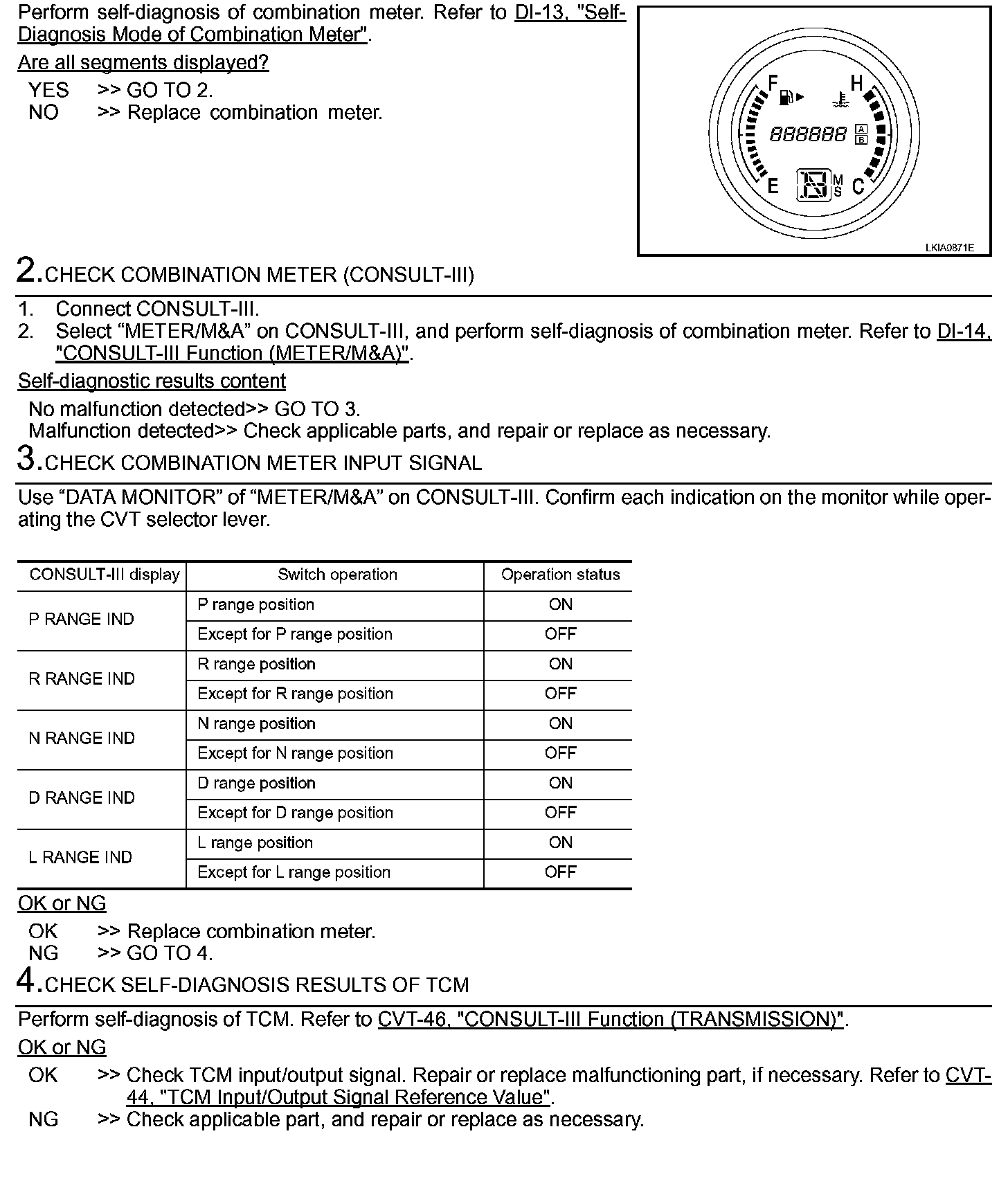

Step 1 (Continued)-4:
