CVT-NONDTC

Wiring Diagram - CVT - NONDTC

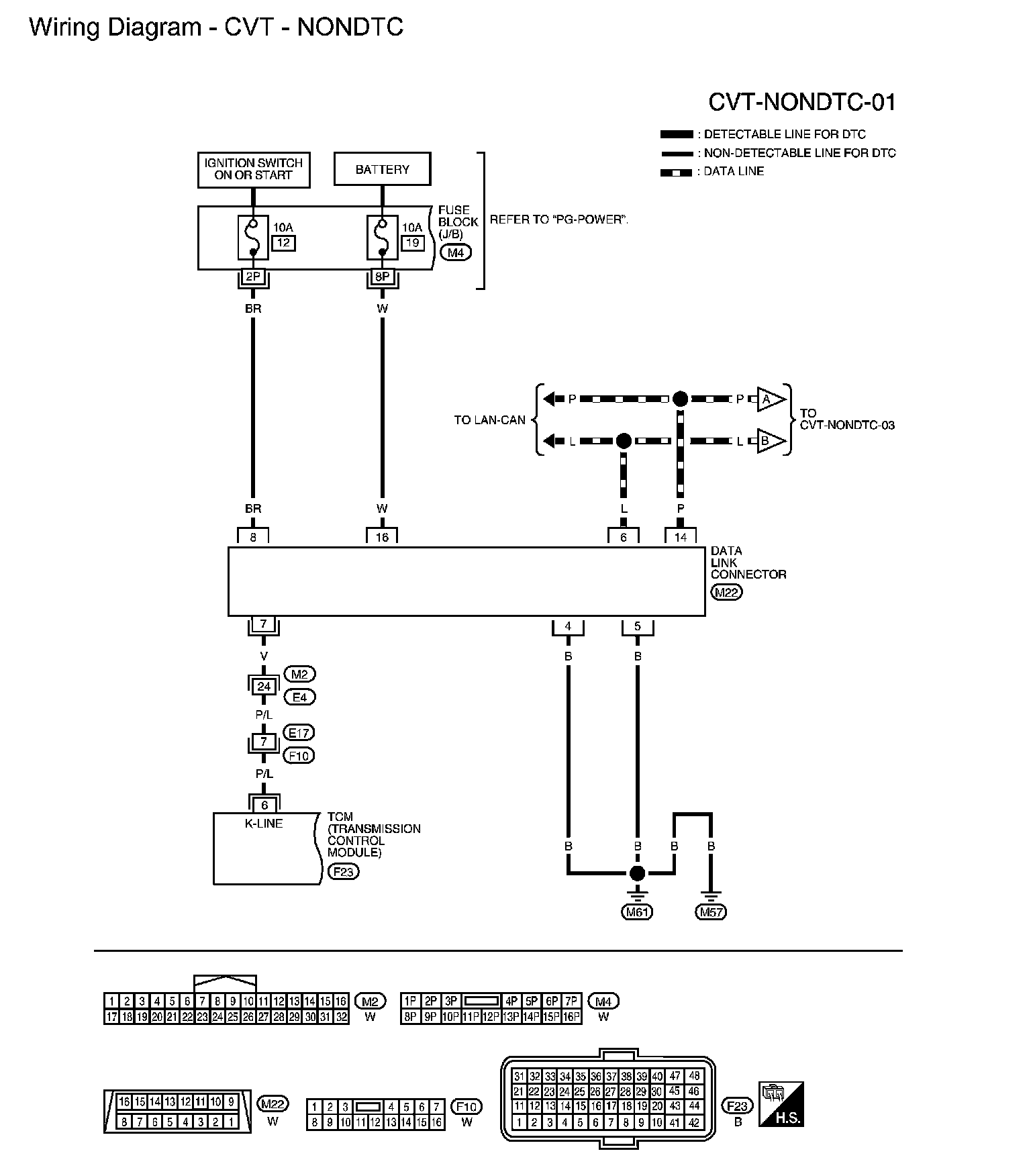

CVT-NONDTC-01:

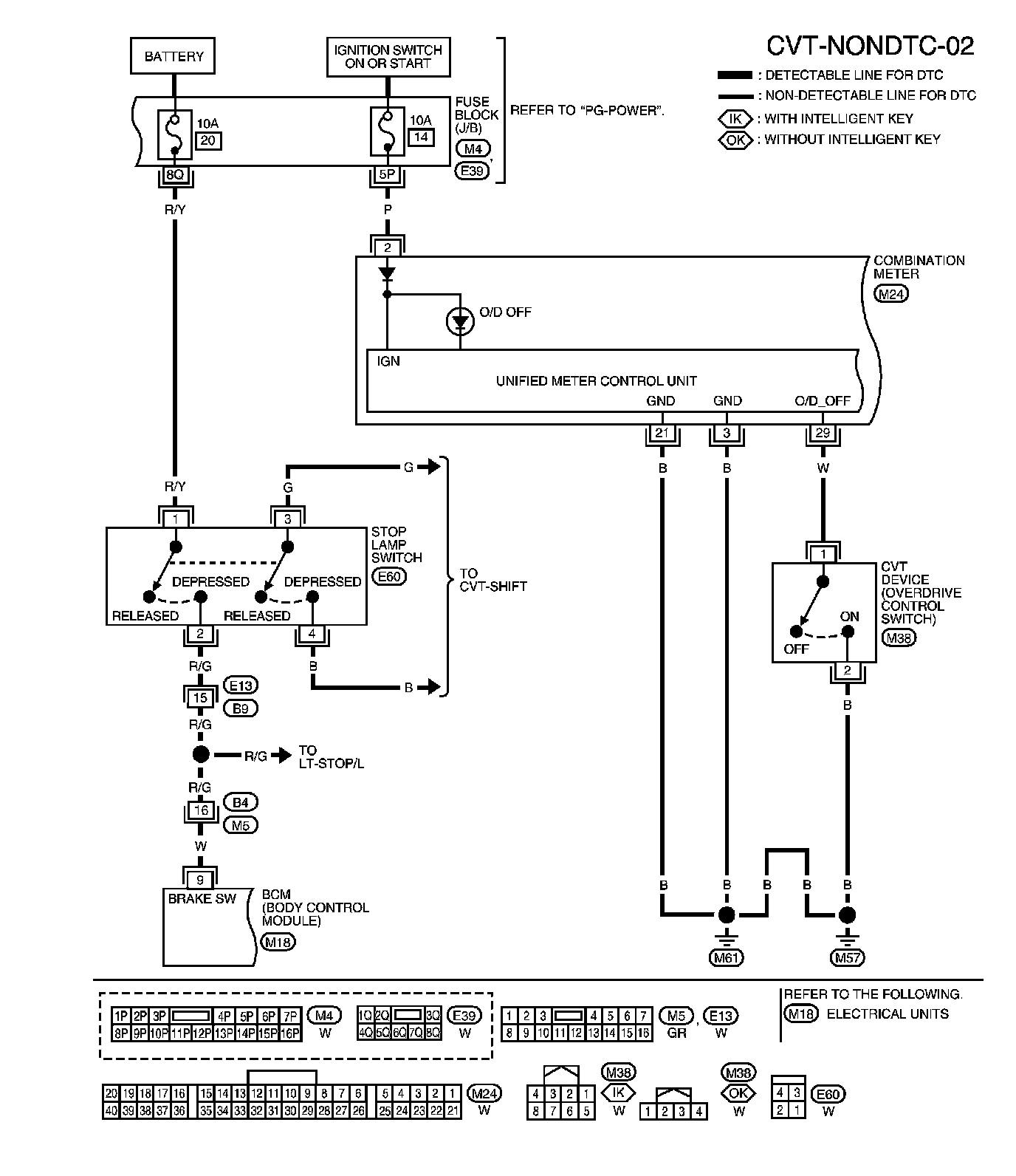

CVT-NONDTC-02:

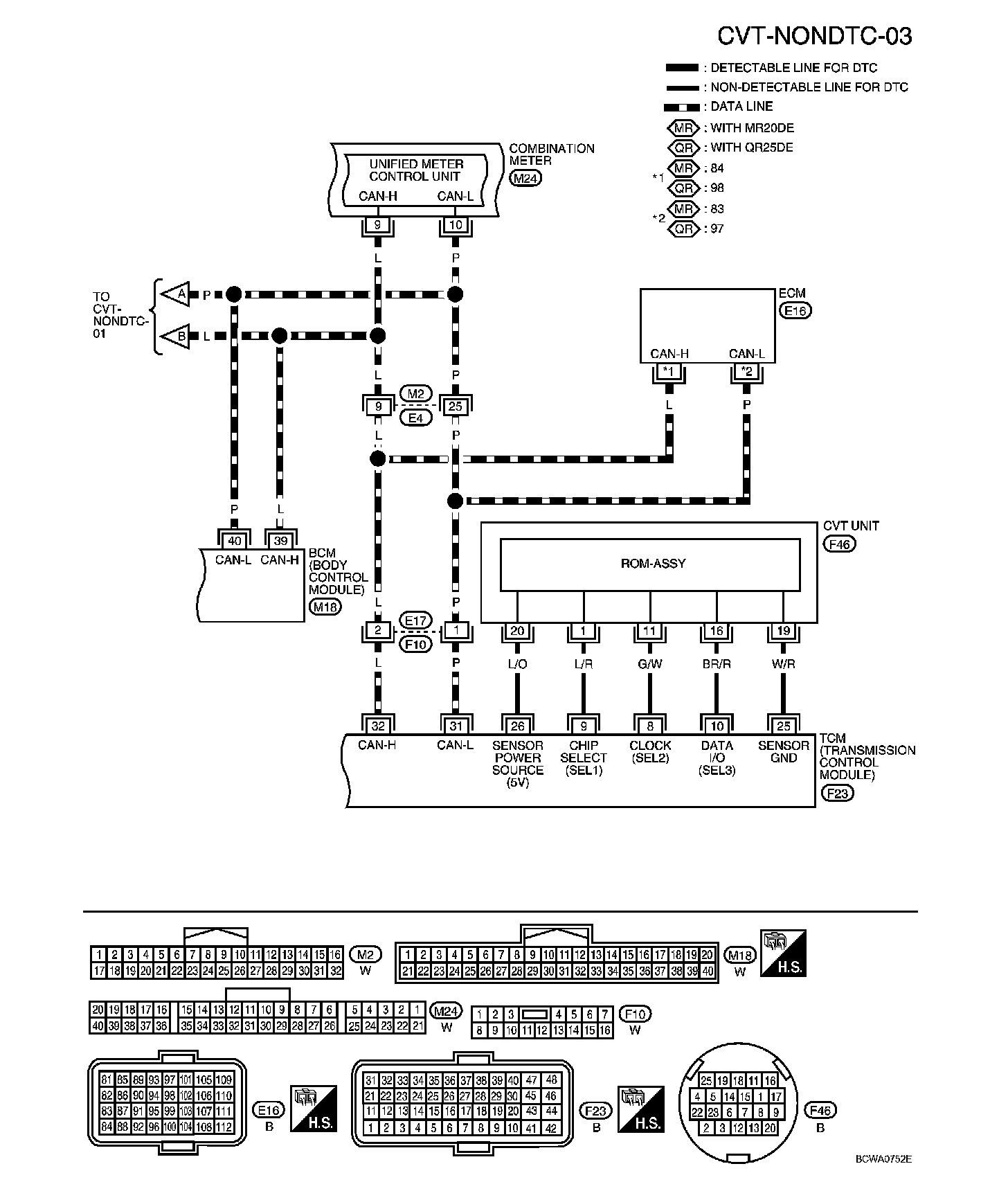

CVT-NONDTC-03:

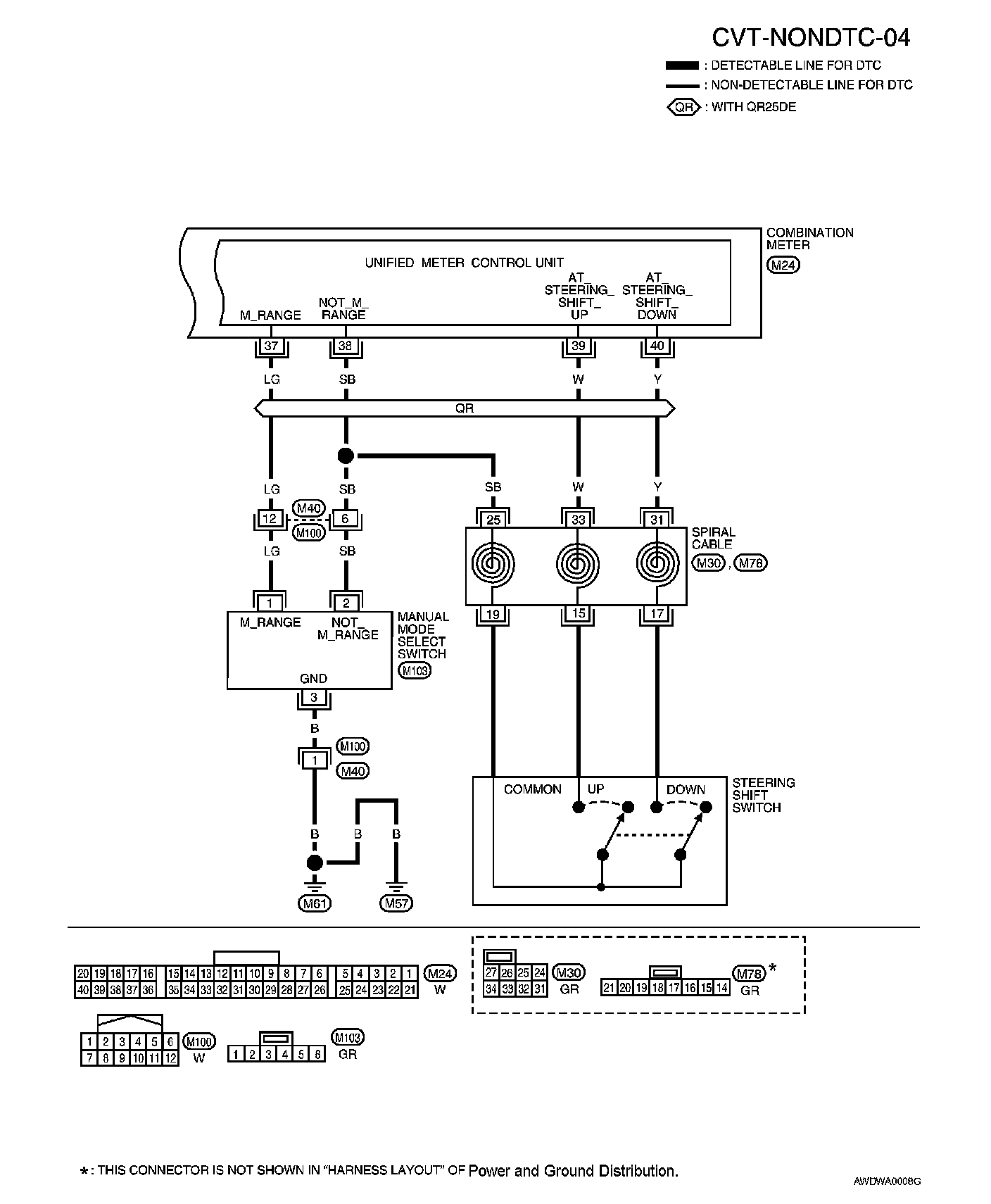

CVT-NONDTC-04:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name

TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-44, "TCM Input/Output Signal Reference Value". Pinout Values and Diagnostic Parameters
