Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Basic Inspection

Basic Inspection

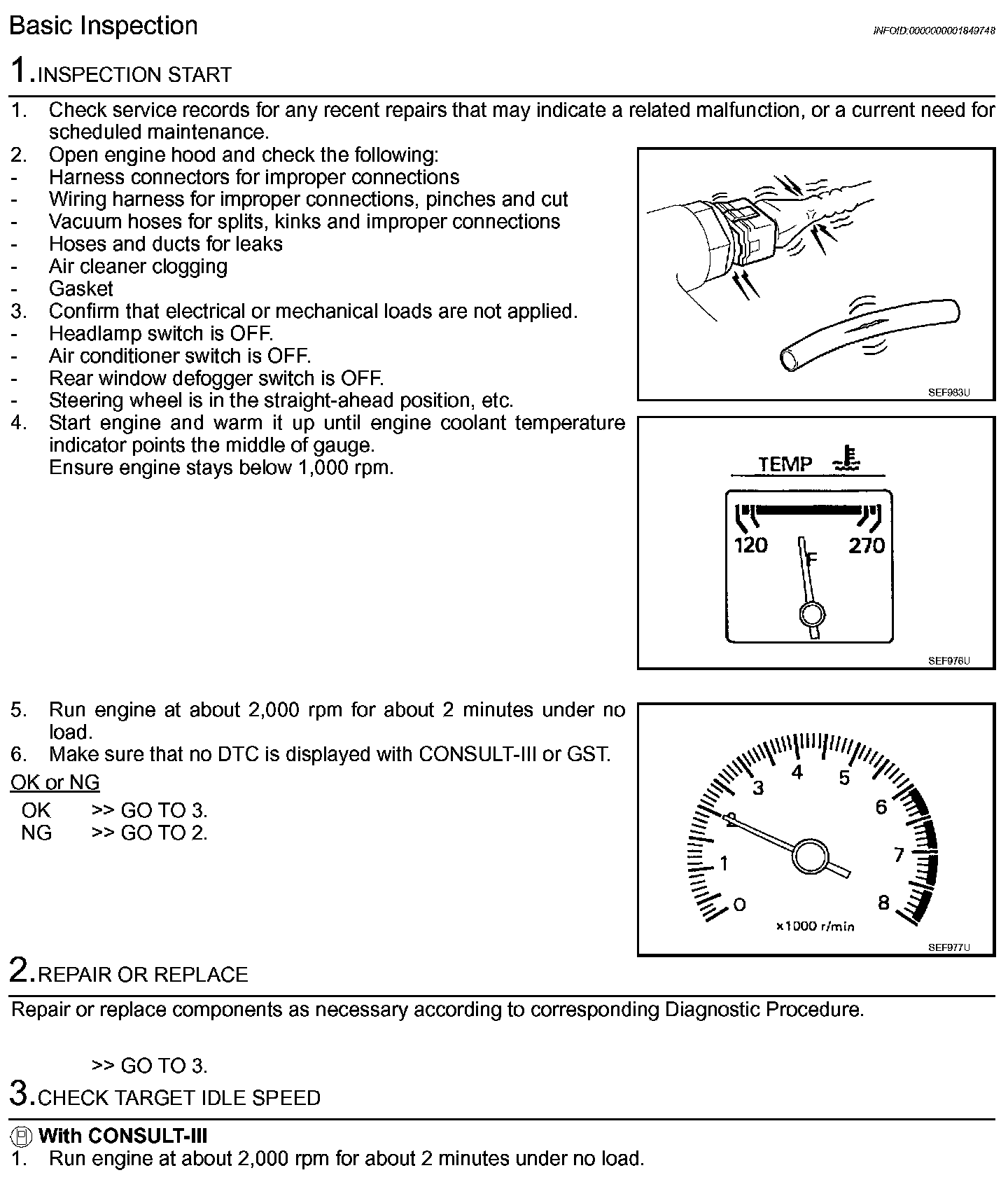

Step 1-3:

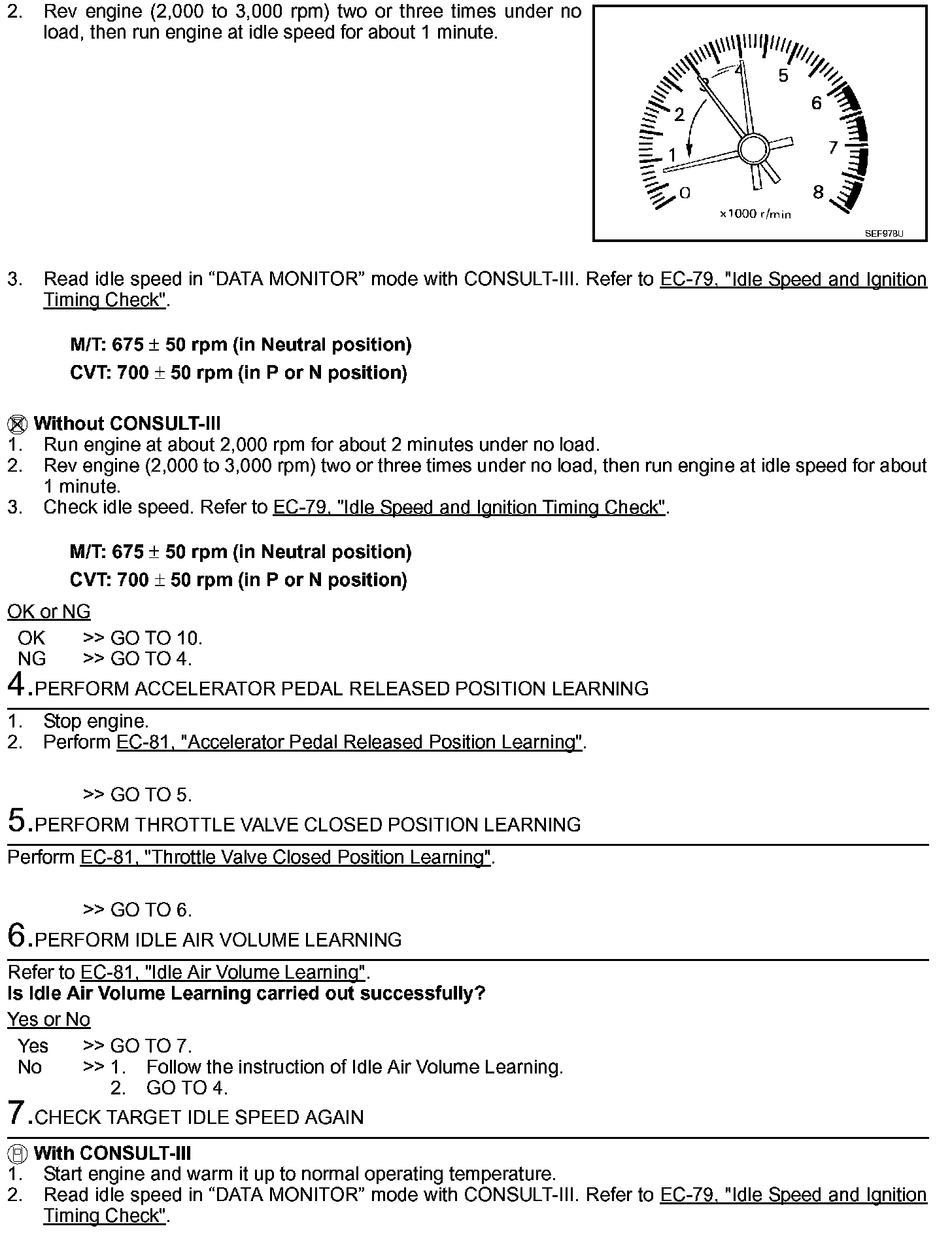

Step 3 (Continued)-7:

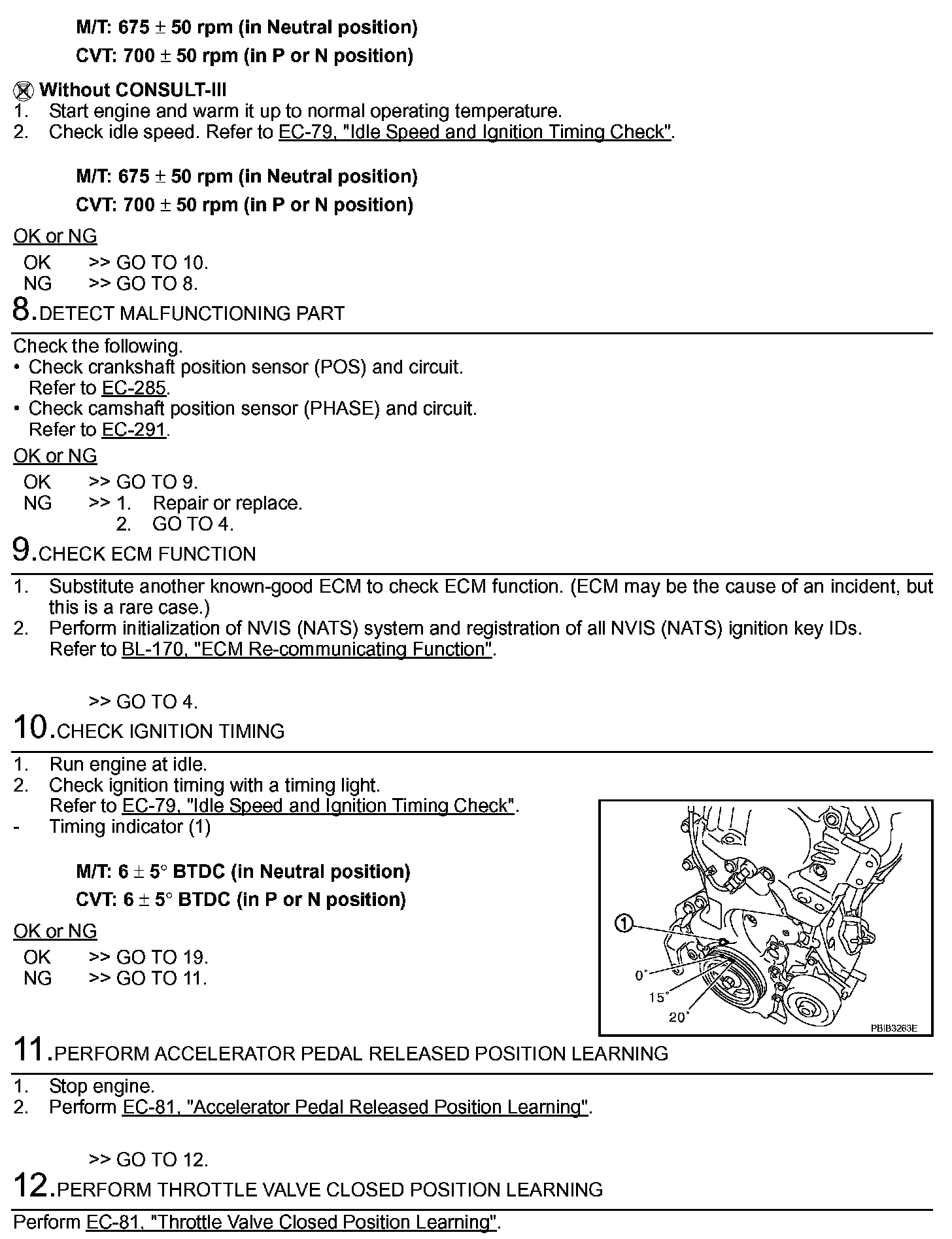

Step 7 (Continued)-12:



Step 13-17:

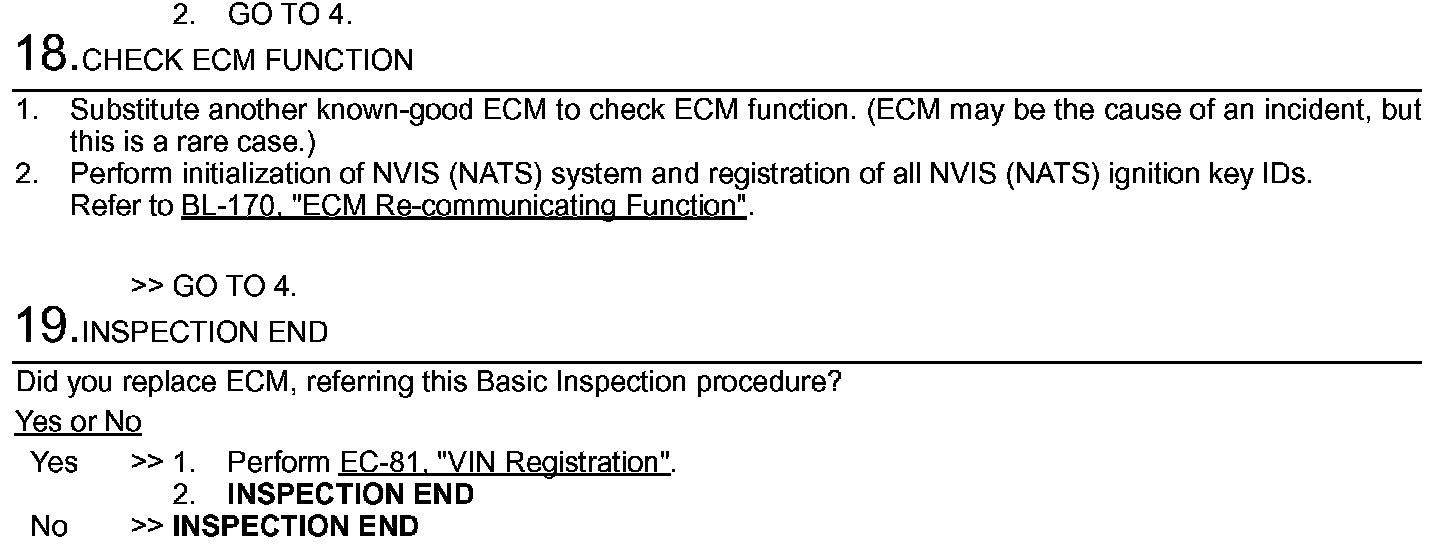

Step 17 (Continued)-19:
