Refrigerant Pressure Sensor

REFRIGERANT PRESSURE SENSOR




Component Description

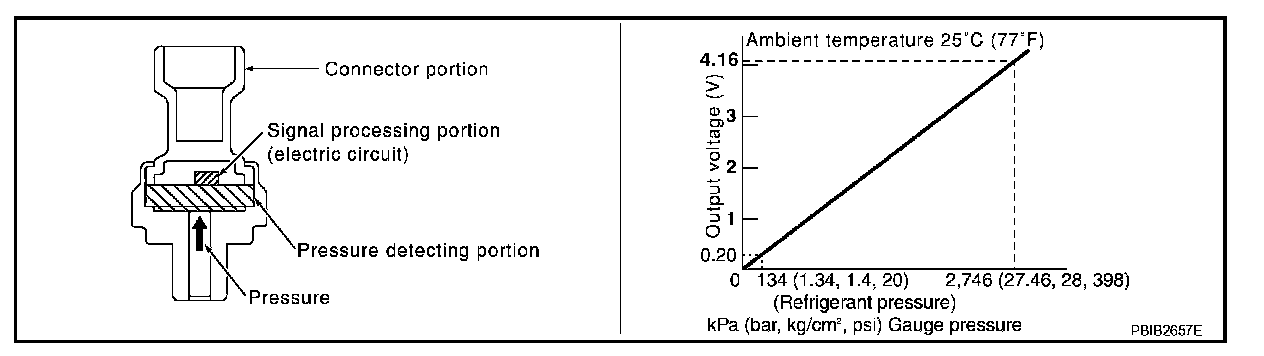

The refrigerant pressure sensor (1) is installed at the condenser of the air conditioner system. The sensor uses an electrostatic volume pressure transducer to convert refrigerant pressure to voltage. The voltage signal is sent to ECM, and ECM controls cooling fan system.

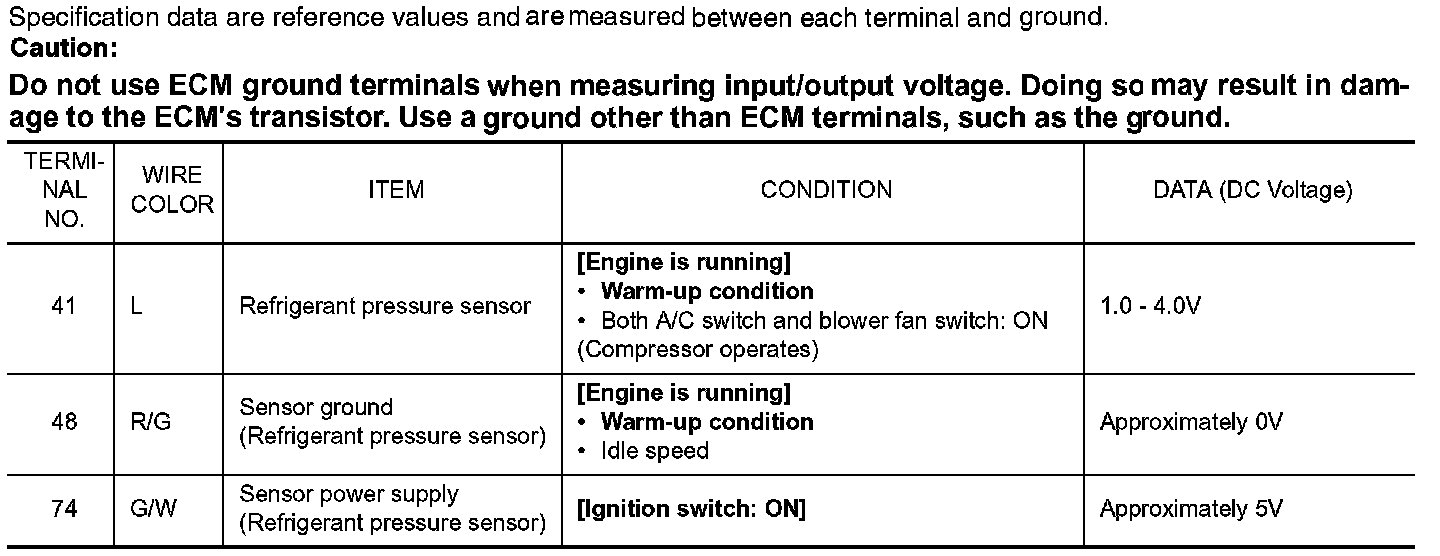

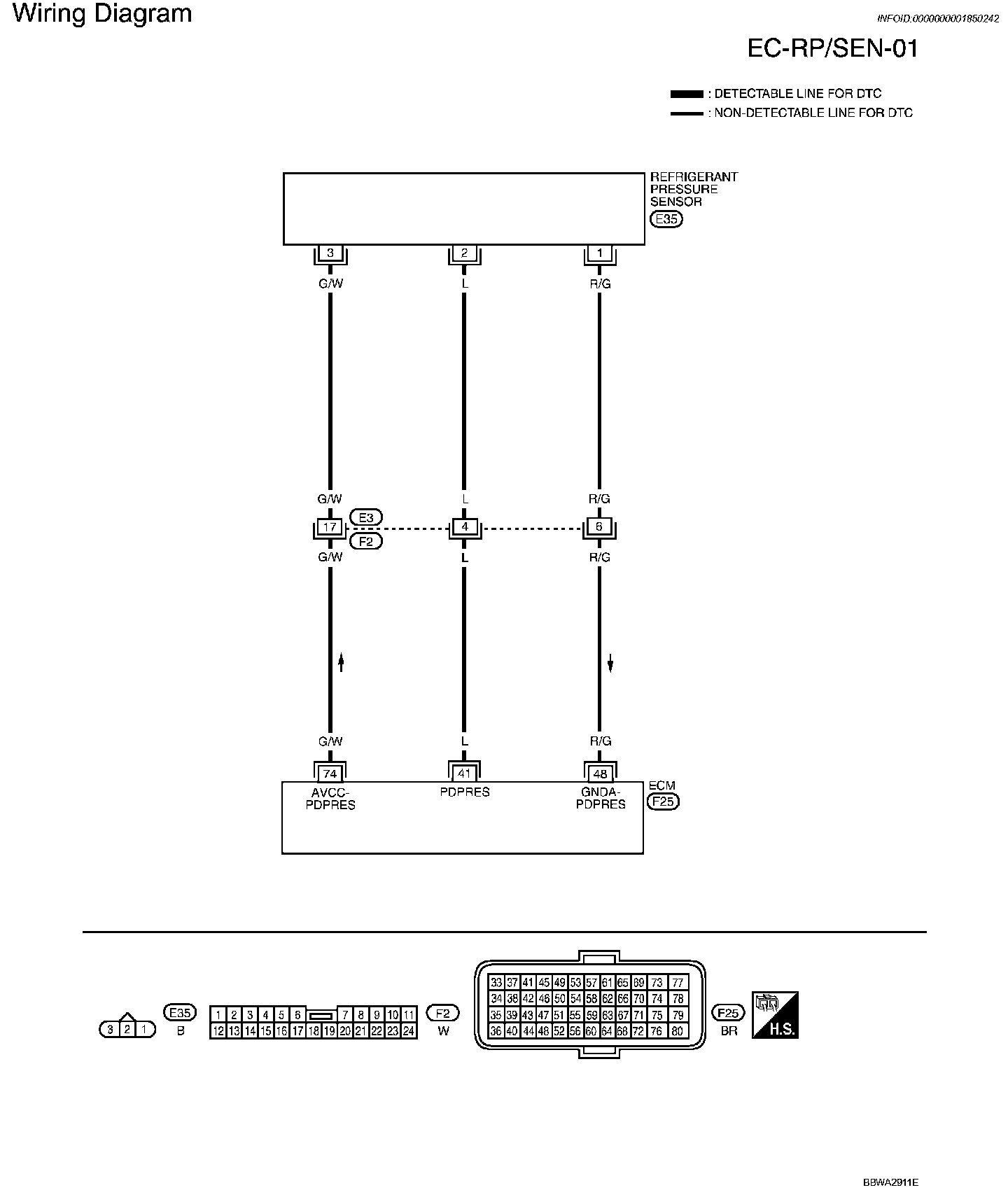

Wiring Diagram

EC-RP/SEN-01:

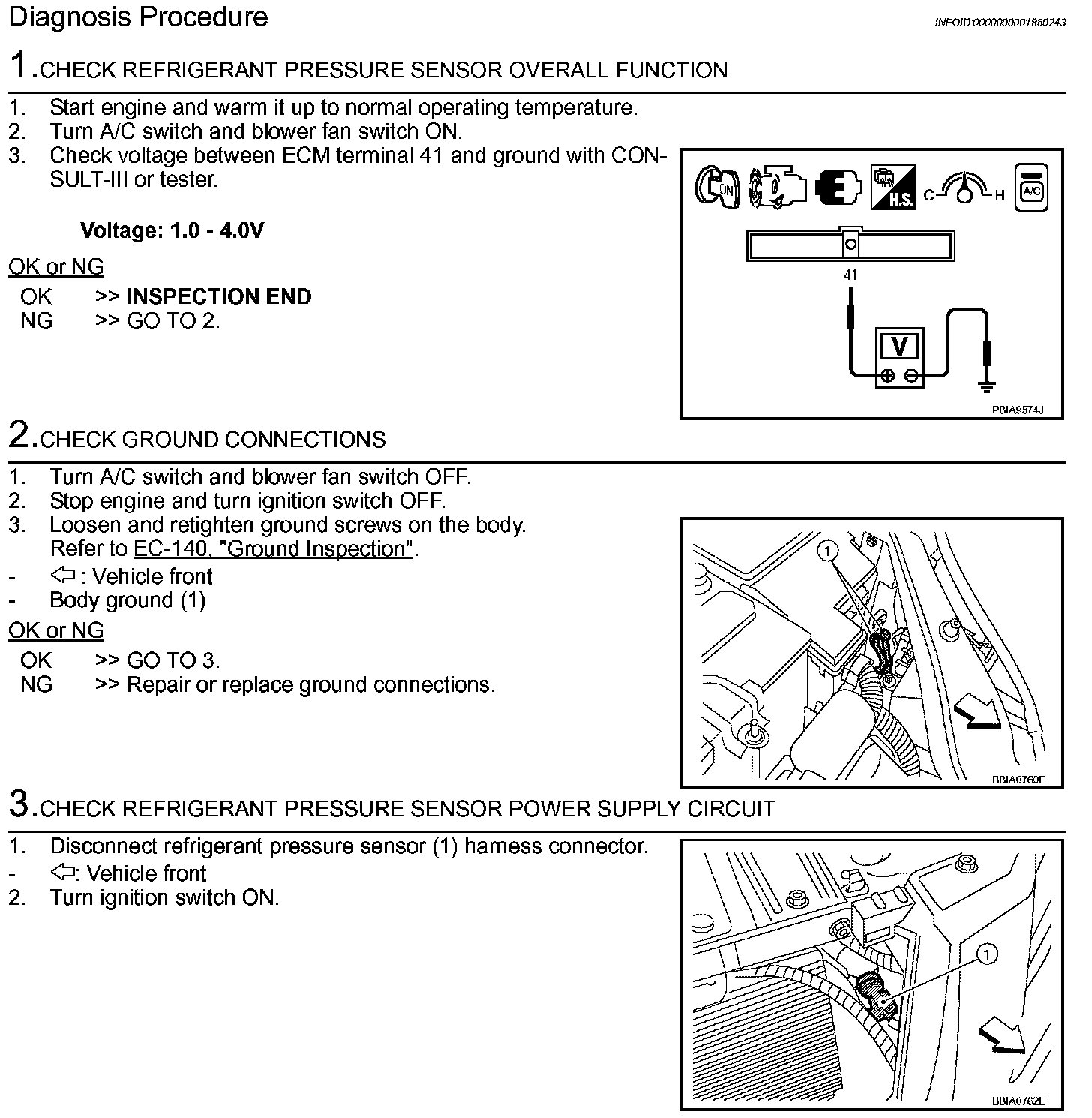

Diagnosis Procedure

Step 1-3:

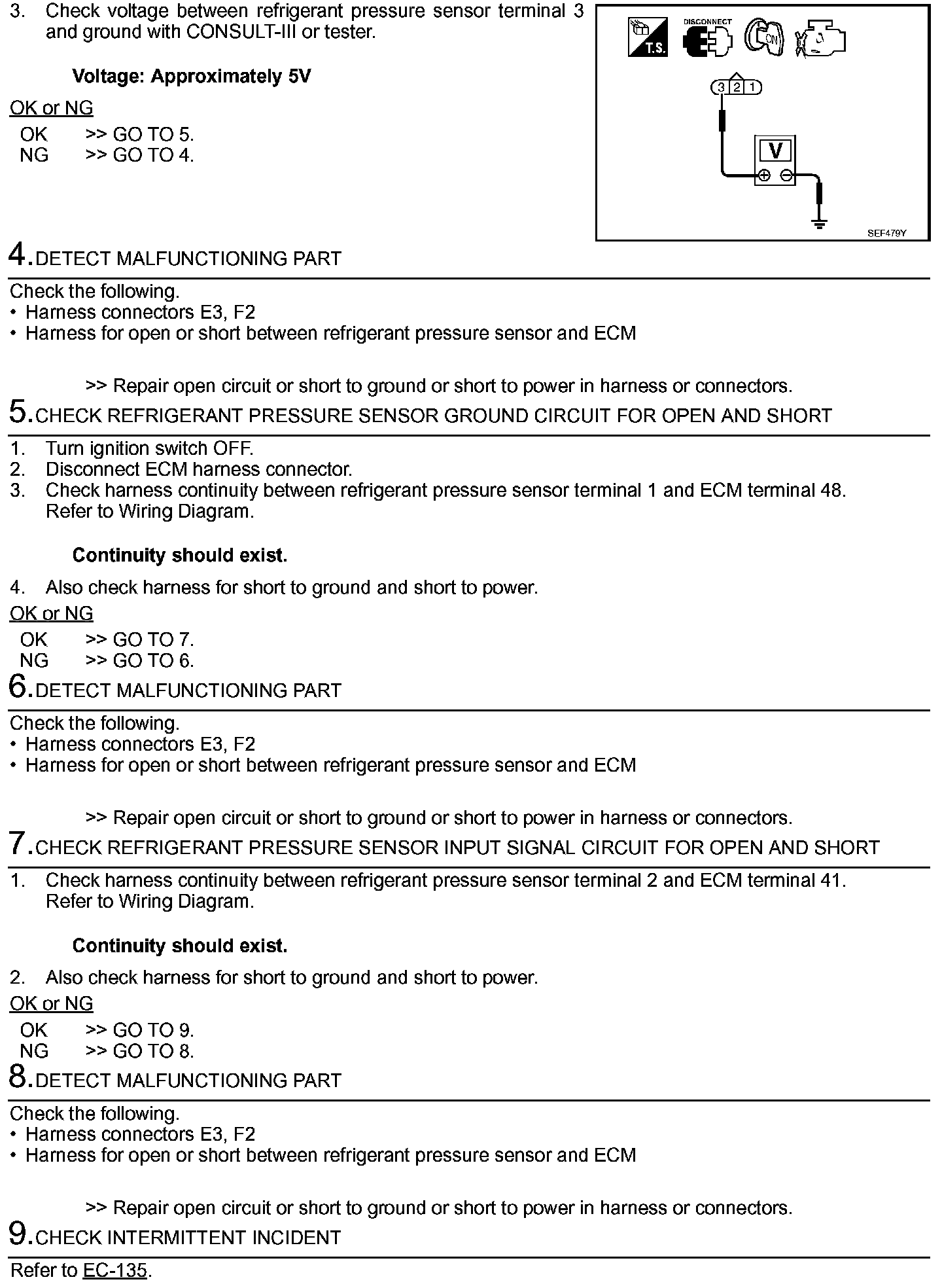

Step 3 (Continued)-9:

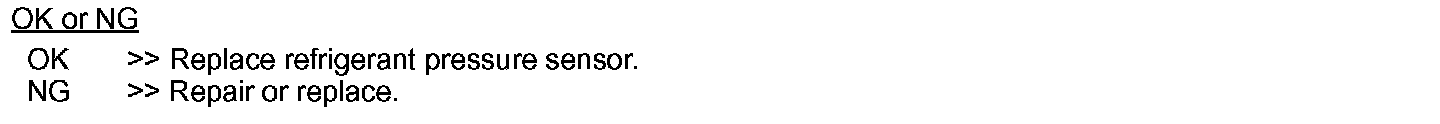

Step 9 (Continued):
