Electrical Load Signal
Electrical Load Signal
ELECTRICAL LOAD SIGNAL

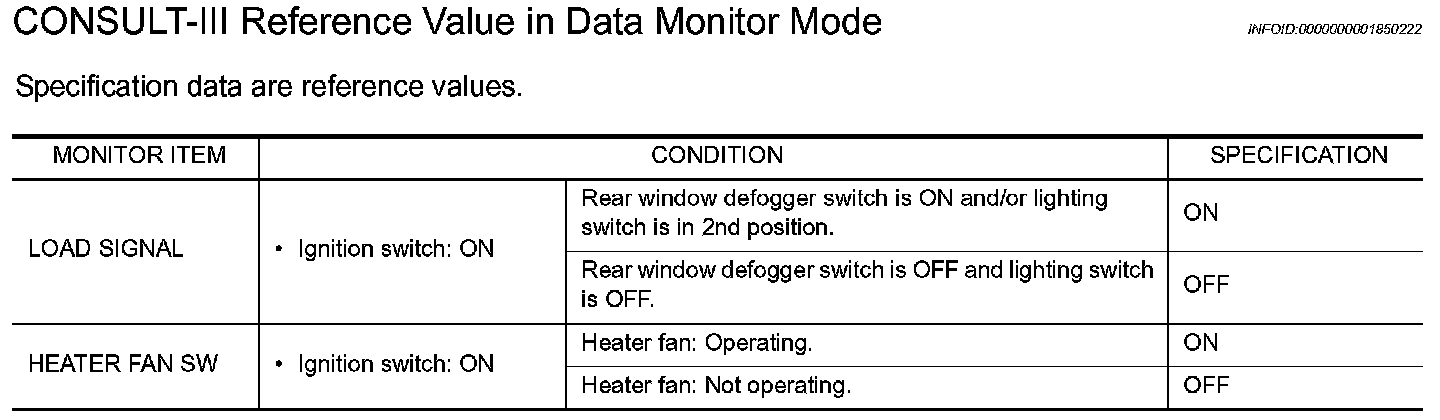

CONSULT-III Reference Value in Data Monitor Mode

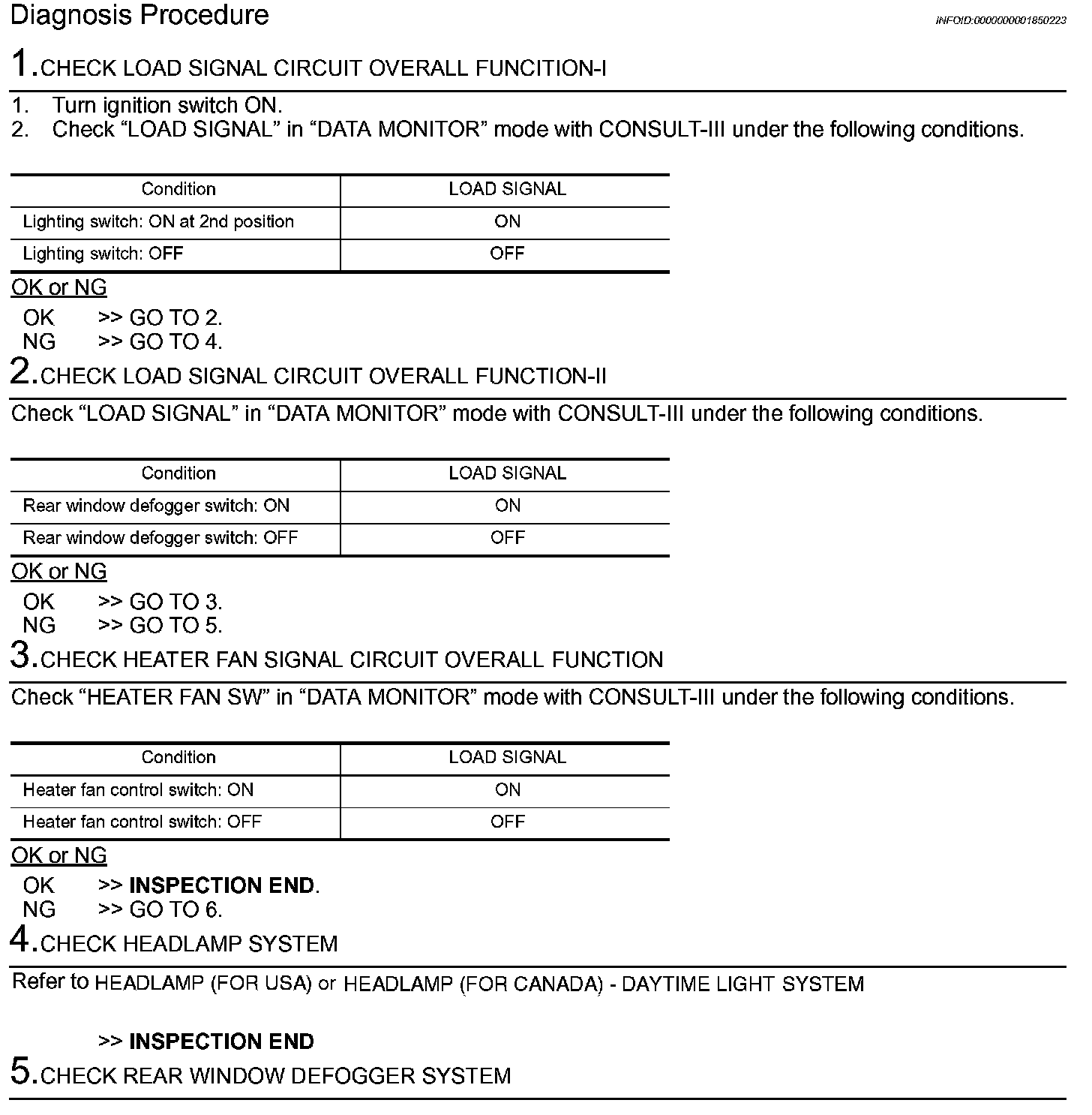

Diagnosis Procedure
Step 1-5:

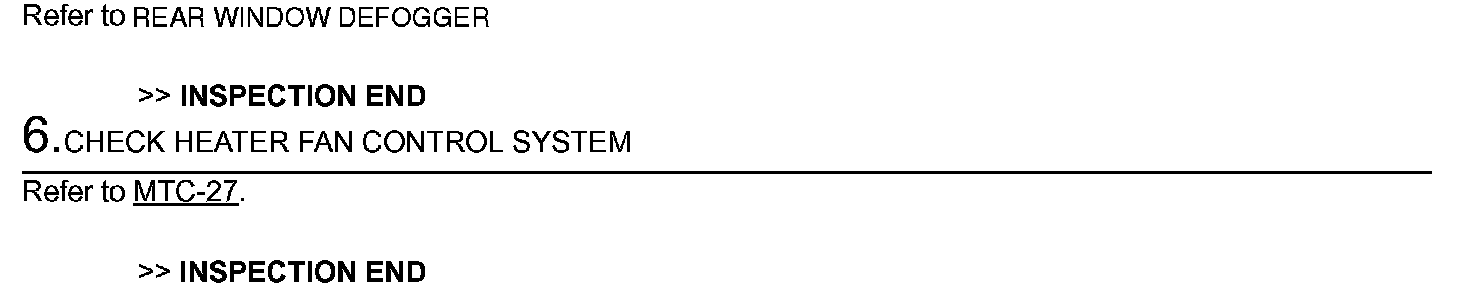

Step 5 (Continued)-6:
