ASCD Indicator
ASCD INDICATORComponent Description
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE and SET, and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD steering switch is turned ON to indicate that ASCD system is ready for operation.
SET indicator illuminates when following conditions are met.
- CRUISE indicator is illuminated.
- SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of ASCD setting.
SET indicator remains lit during ASCD control.
Refer to ASCD function.

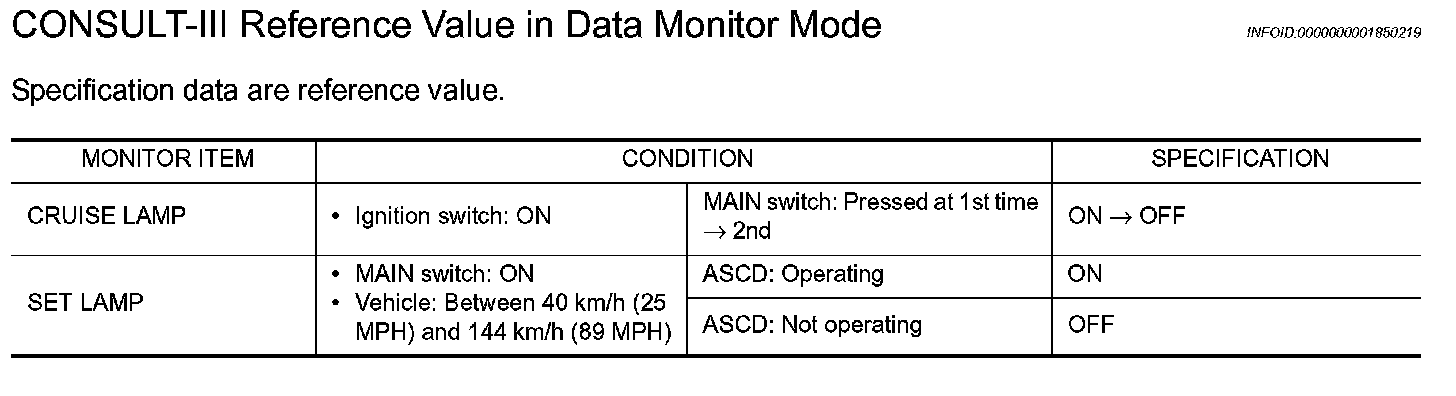

CONSULT-III Reference Value in Data Monitor Mode

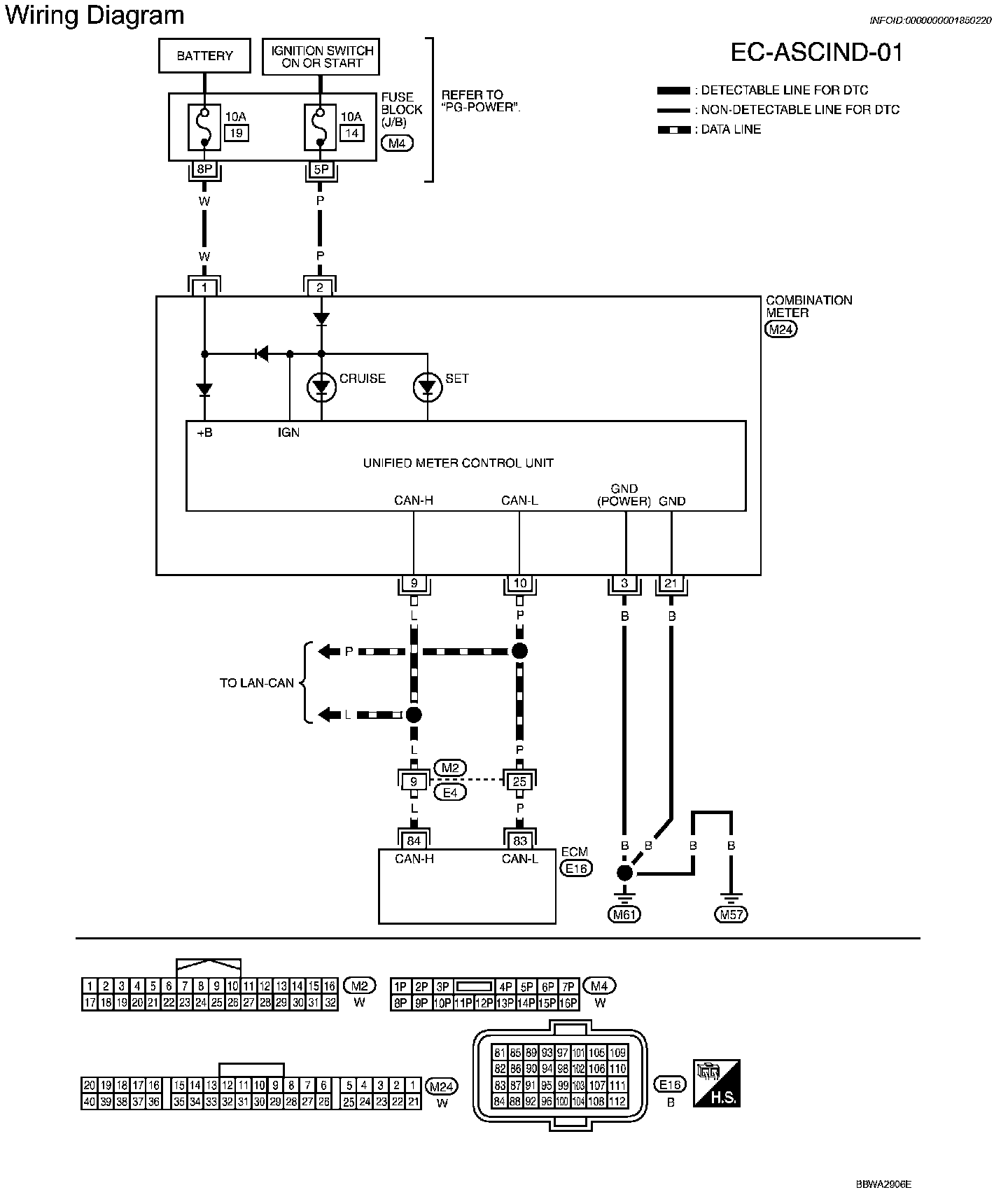

Wiring Diagram
EC-ASCIND-01:

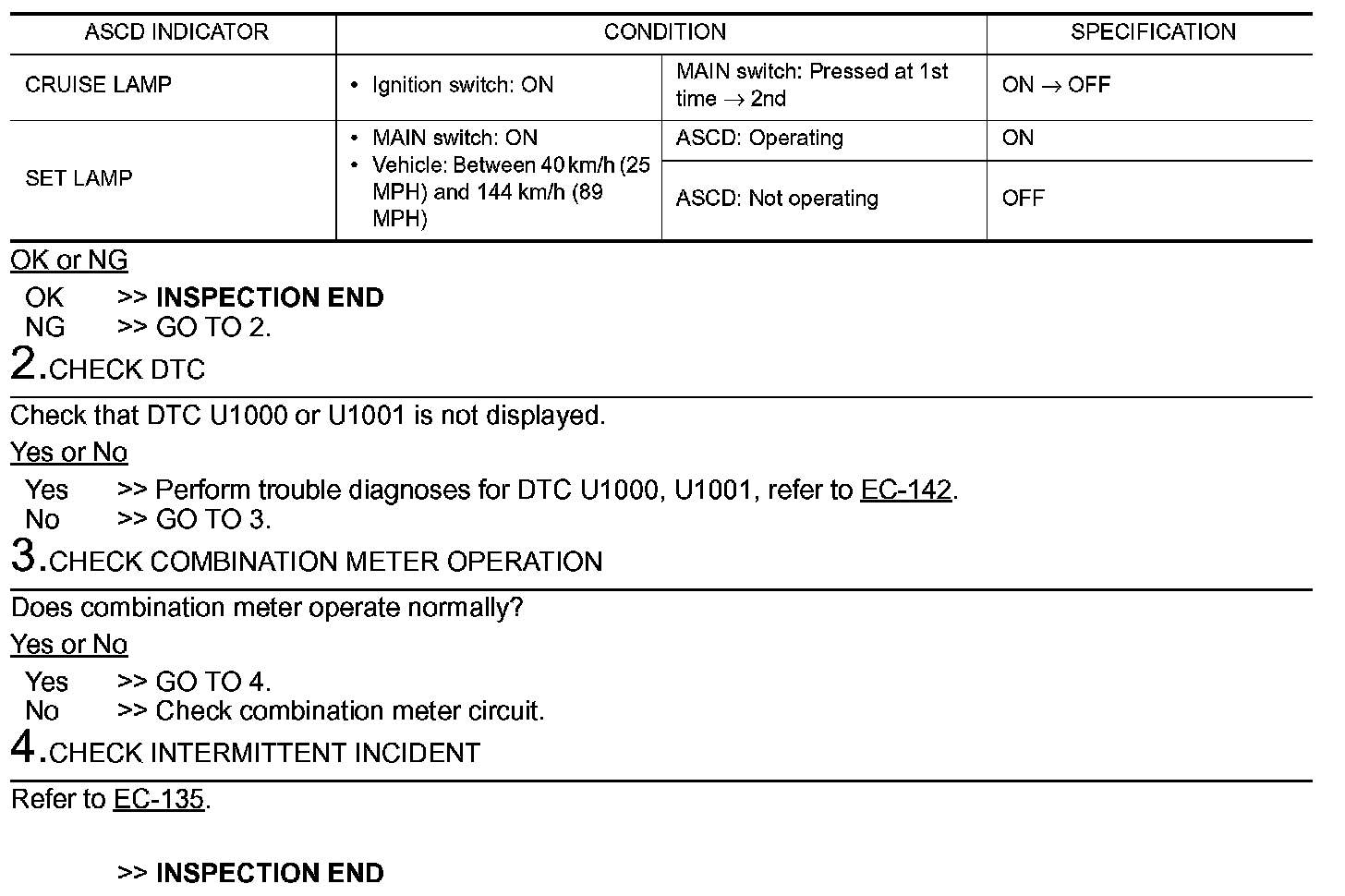

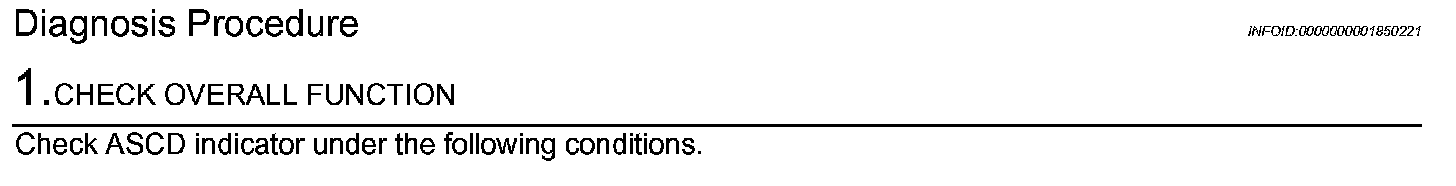

Diagnosis Procedure
Step 1:
