Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Hazard Warning Lamp Does Not Operate But Turn Signal Lamp Operates

Hazard Warning Lamp Does Not Operate But Turn Signal Lamp Operates

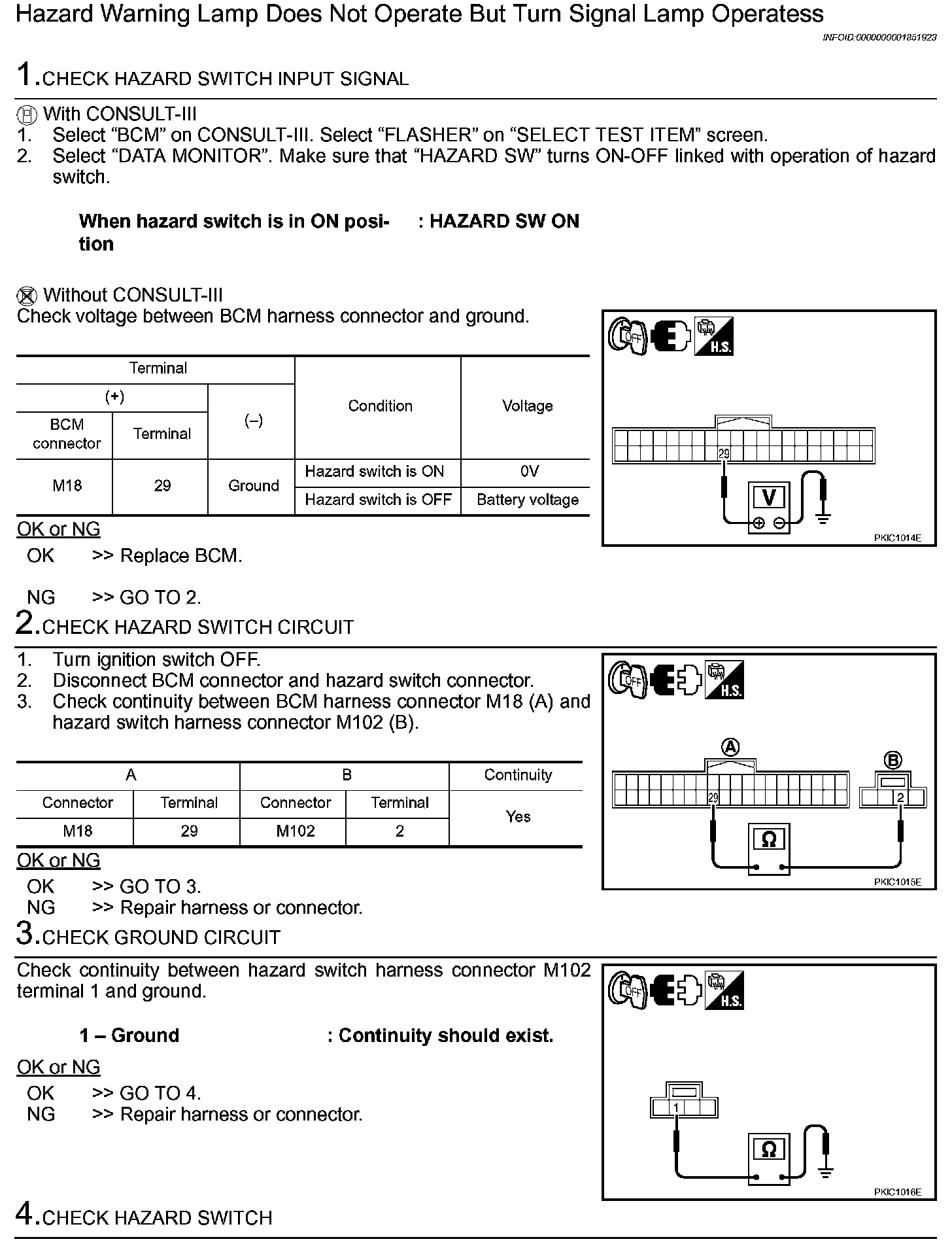

Step 1-4:

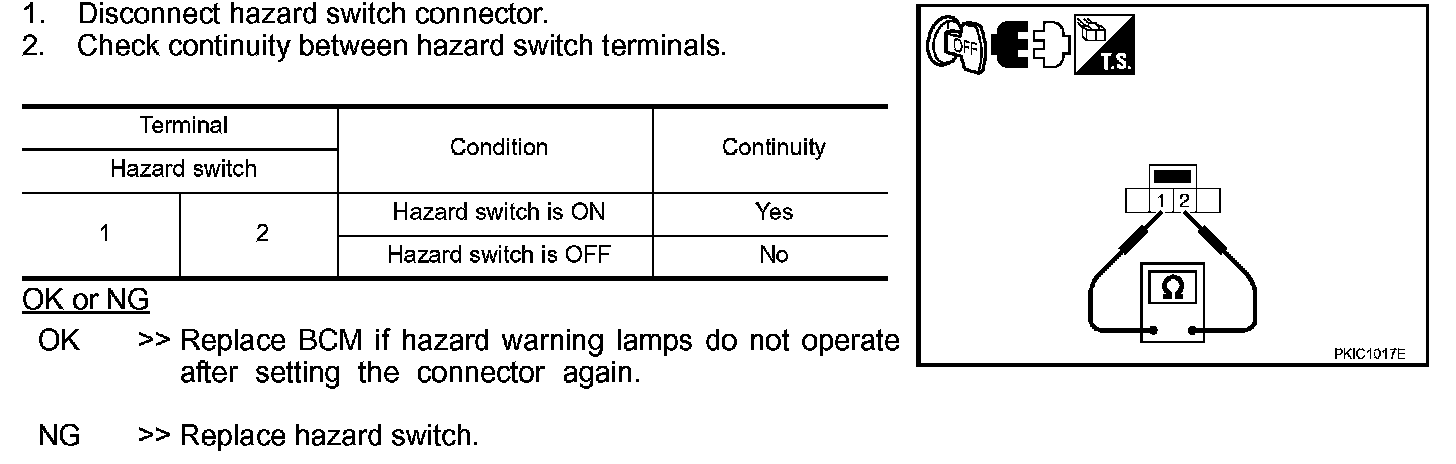

Step 4 (Continued):
