Trunk Lamp: Service and Repair

Luggage Compartment Lamp

REMOVAL AND INSTALLATION

Removal

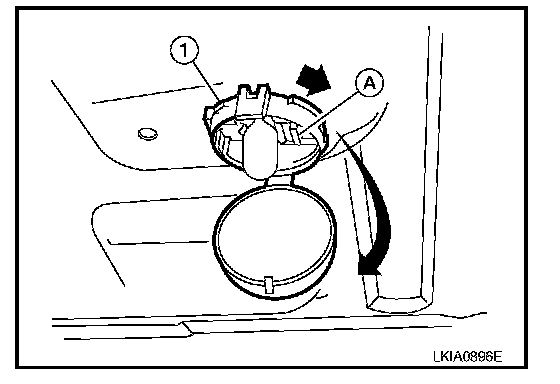

1. Open luggage compartment lamp cover.
2. Push the luggage compartment pawl tab (A).
3. Pull the luggage compartment lamp (1) toward the side down to remove.
4. Disconnect luggage compartment lamp connector.

Installation
Installation is in the reverse order of removal.
