Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> License Plate and Tail Lamps Do Not Illuminate (Front Parking Lamps Operate Normally)

License Plate and Tail Lamps Do Not Illuminate (Front Parking Lamps Operate Normally)

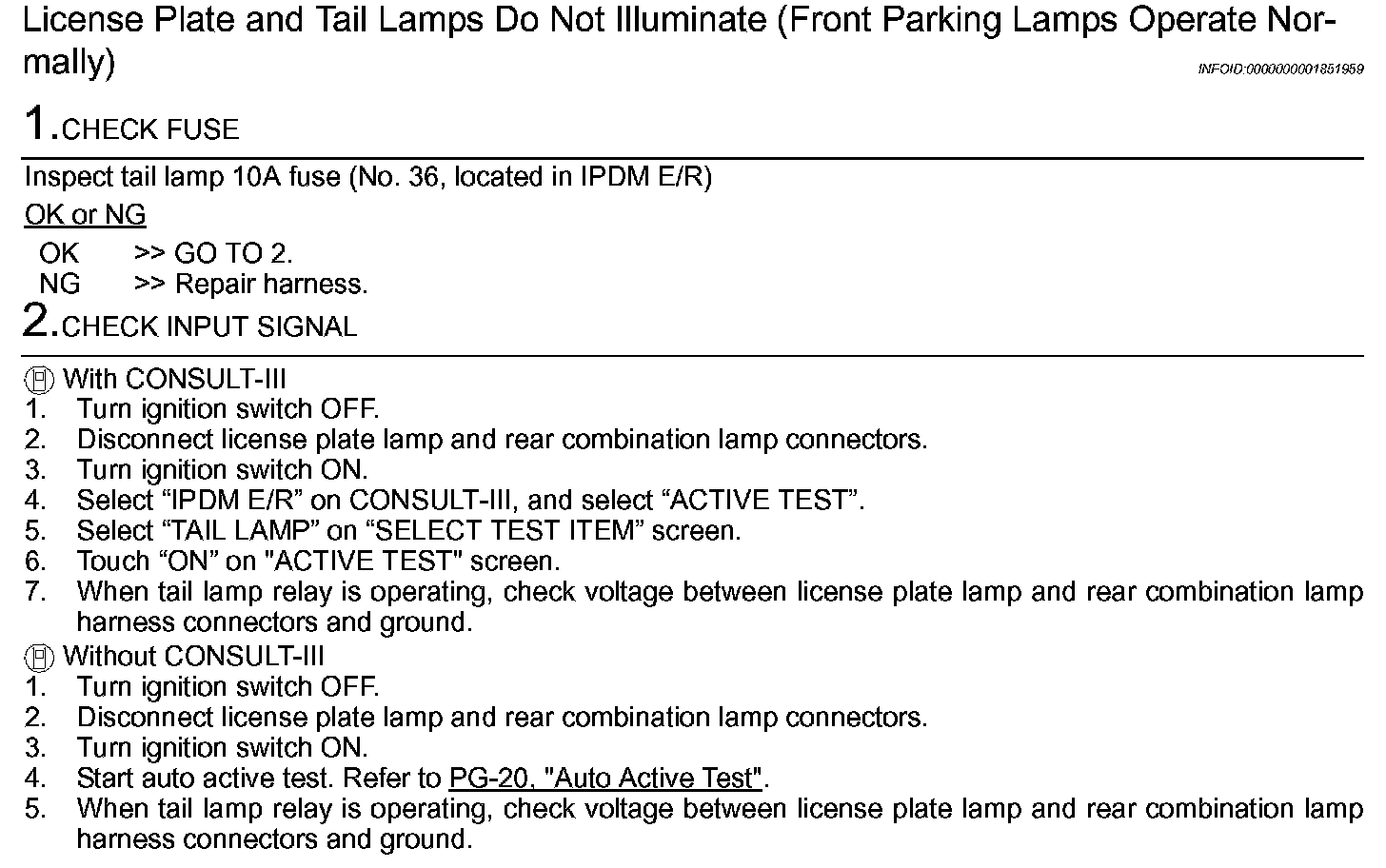

Step 1-2:

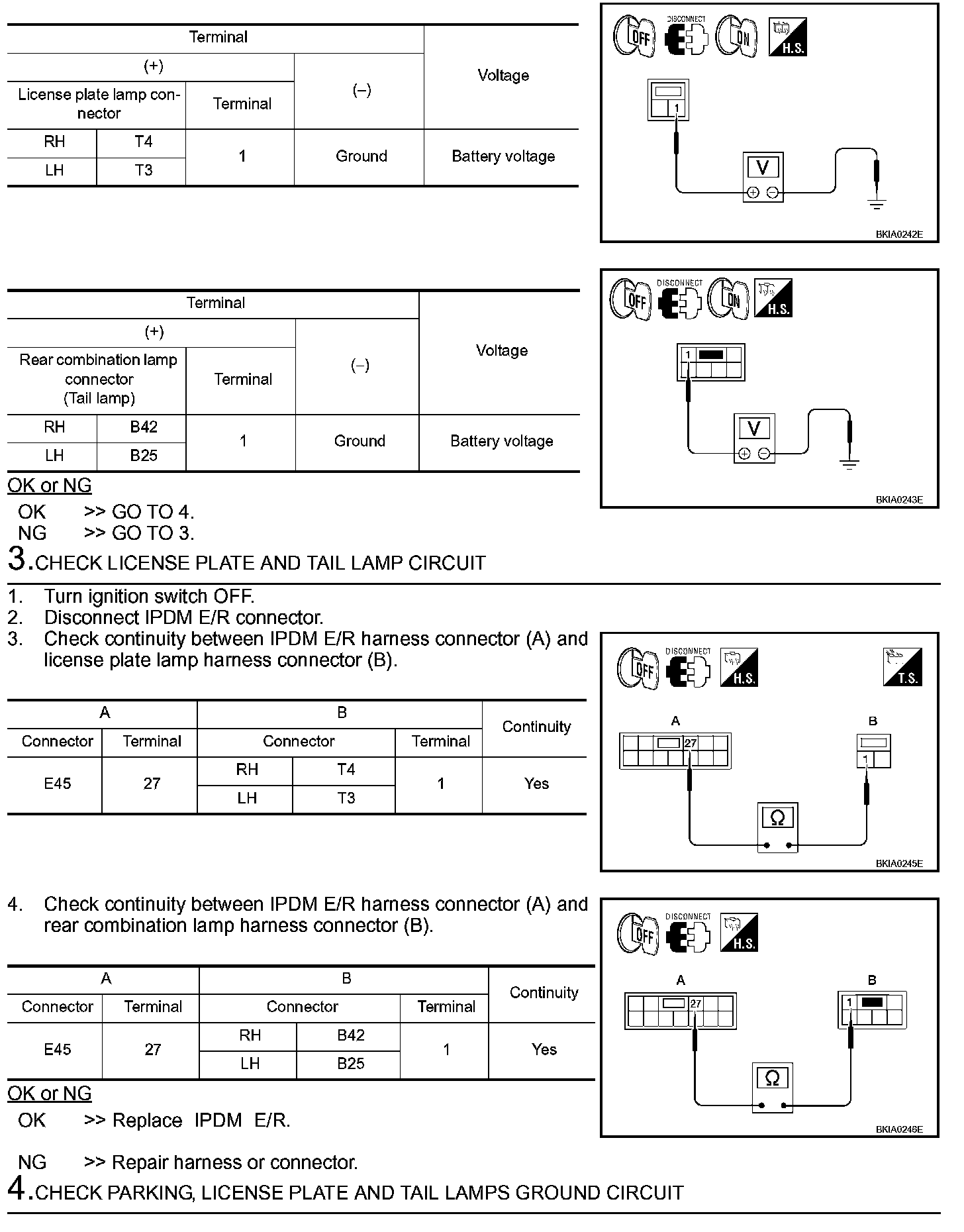

Step 2 (Continued)-4:



Step 4 (Continued):
