License Plate Lamp: Service and Repair

Removal and Installation

LICENSE PLATE LAMP

Removal
1. Remove the license lamp finisher.

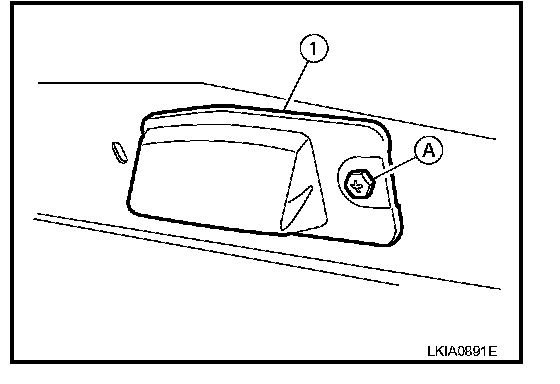

2. Remove license plate lamp screw (A) and remove the license plate lamp (1).
3. Disconnect the license plate lamp connector and remove the licence plate lamp.

Installation
Installation is in the reverse order of removal.
