Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamp Low Beam Does Not Illuminate (One Side)

Headlamp Low Beam Does Not Illuminate (One Side)

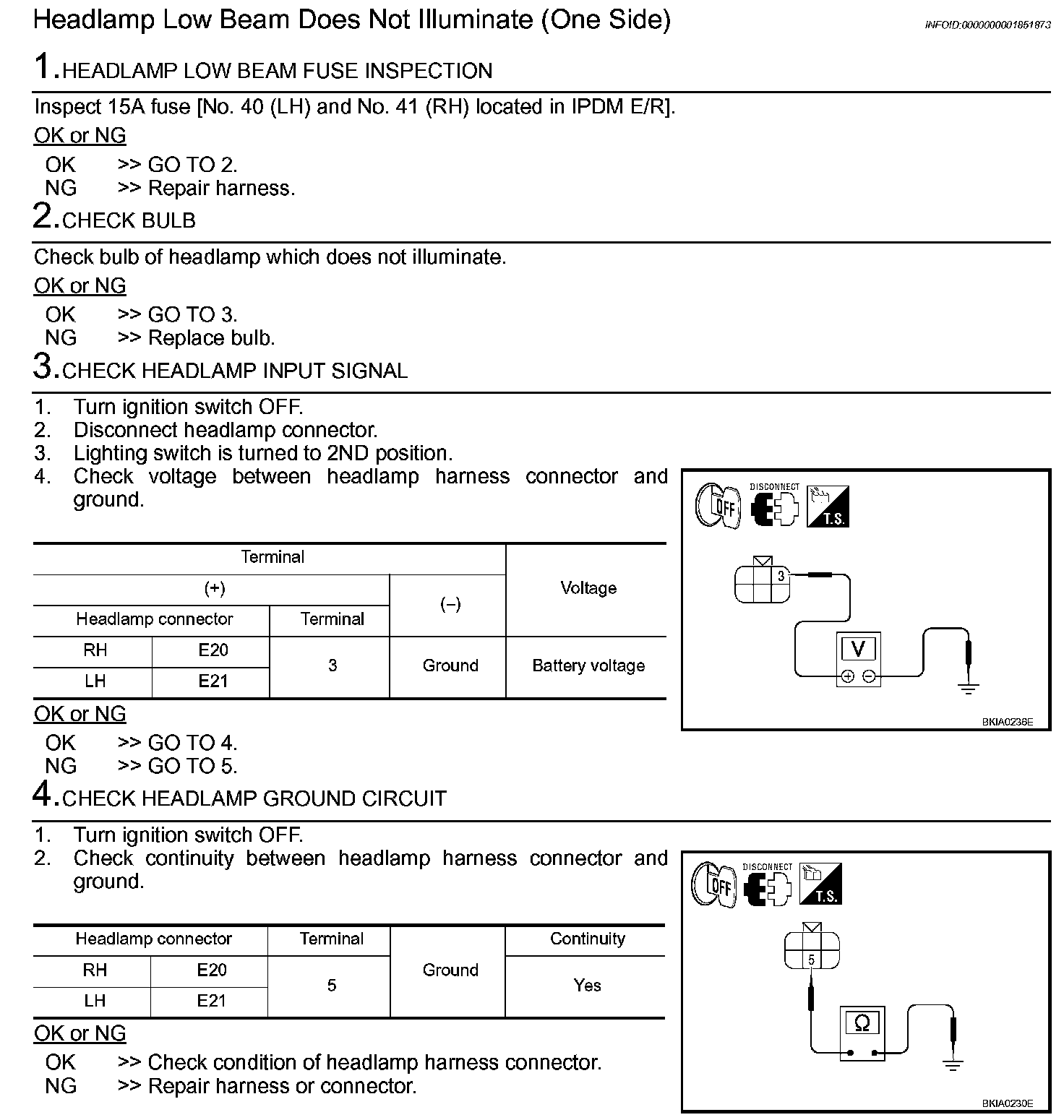

Step 1-4:

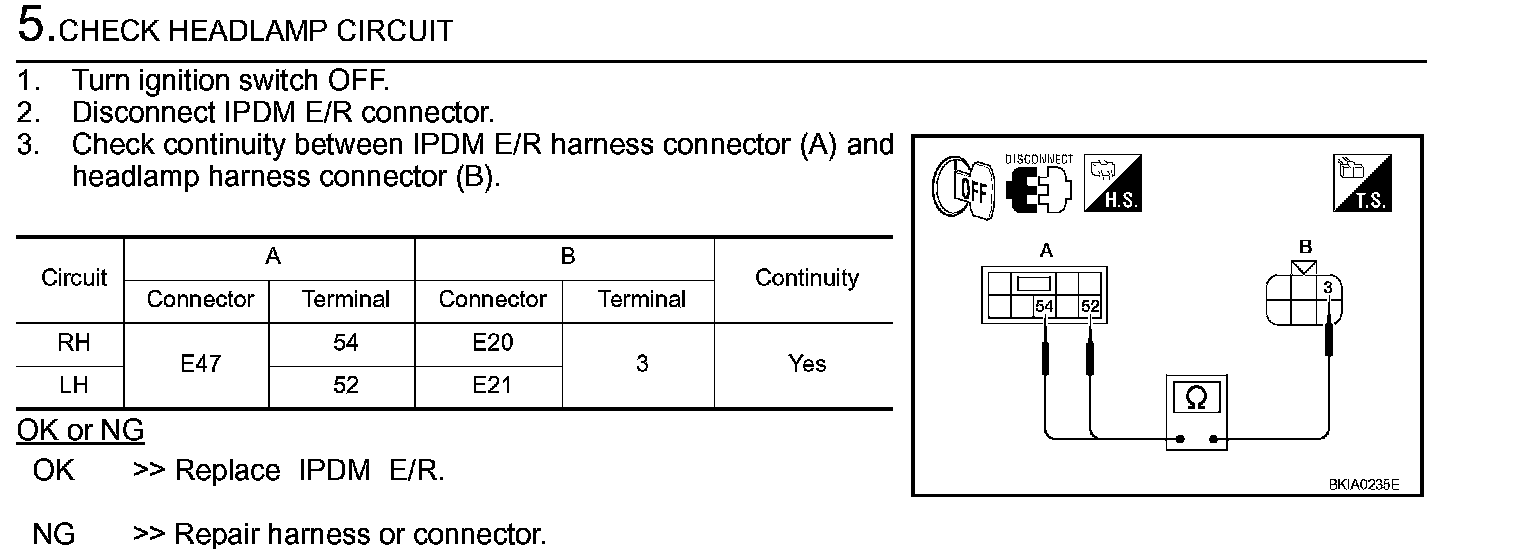

Step 5:
