Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlamp High Beam Does Not Illuminate (Both Sides)

Headlamp High Beam Does Not Illuminate (Both Sides)

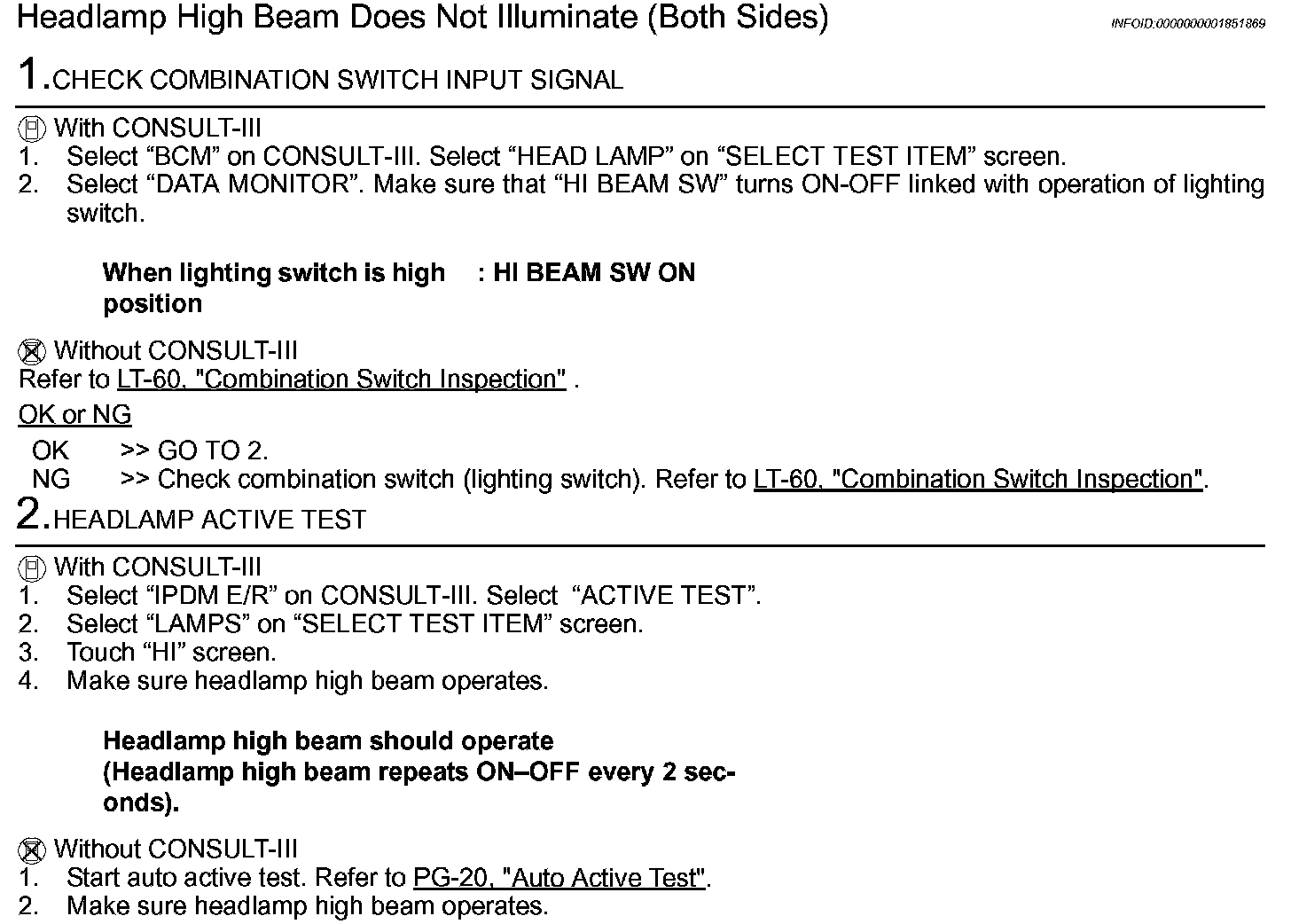

Step 1-2:



Step 2 (Continued)-6:



Step 6 (Continued)-8:
