Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Daytime Light Control Does Not Operate Properly (High Beam Headlamps Operate Properly)

Daytime Light Control Does Not Operate Properly (High Beam Headlamps Operate Properly)

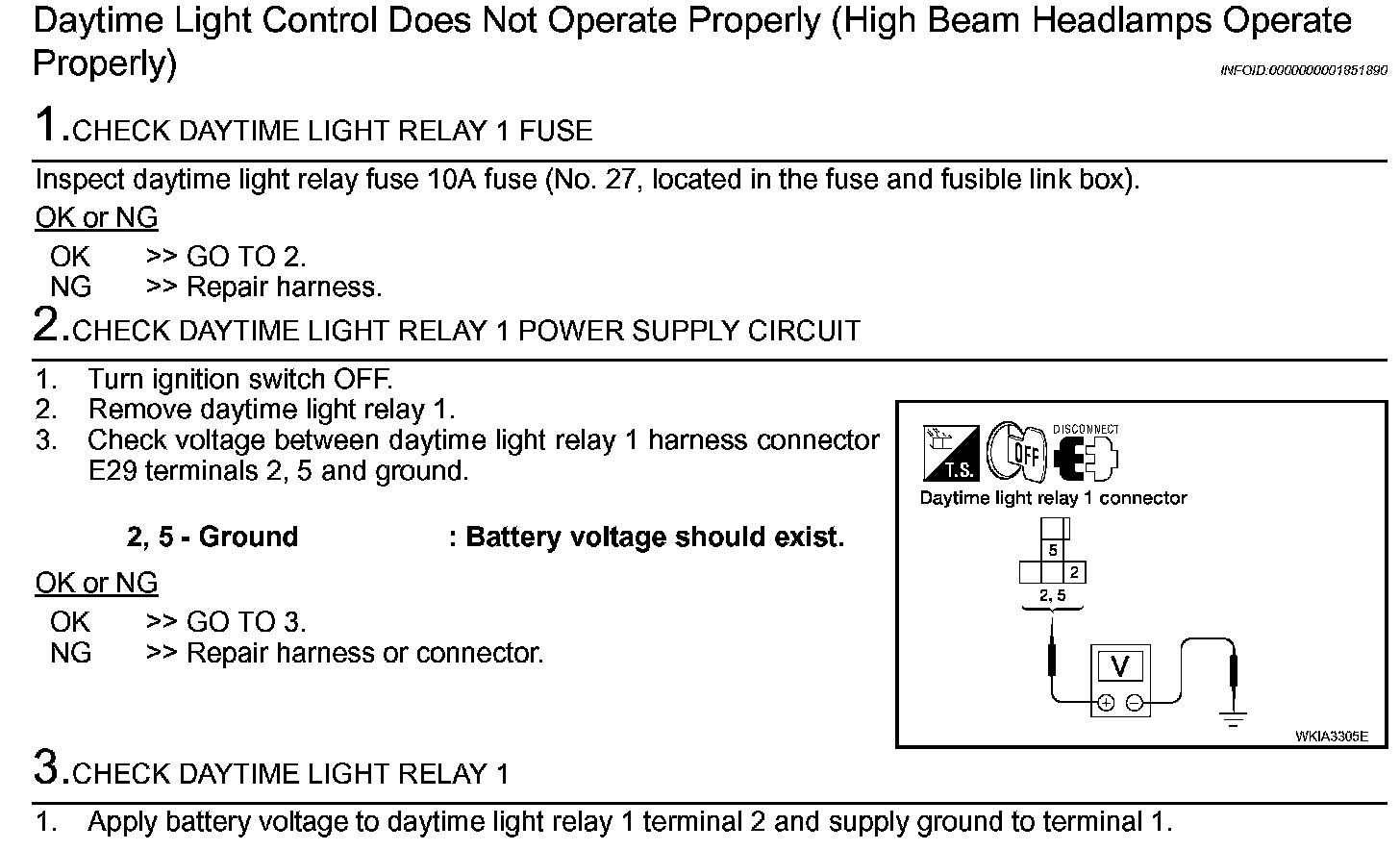

Step 1-3:

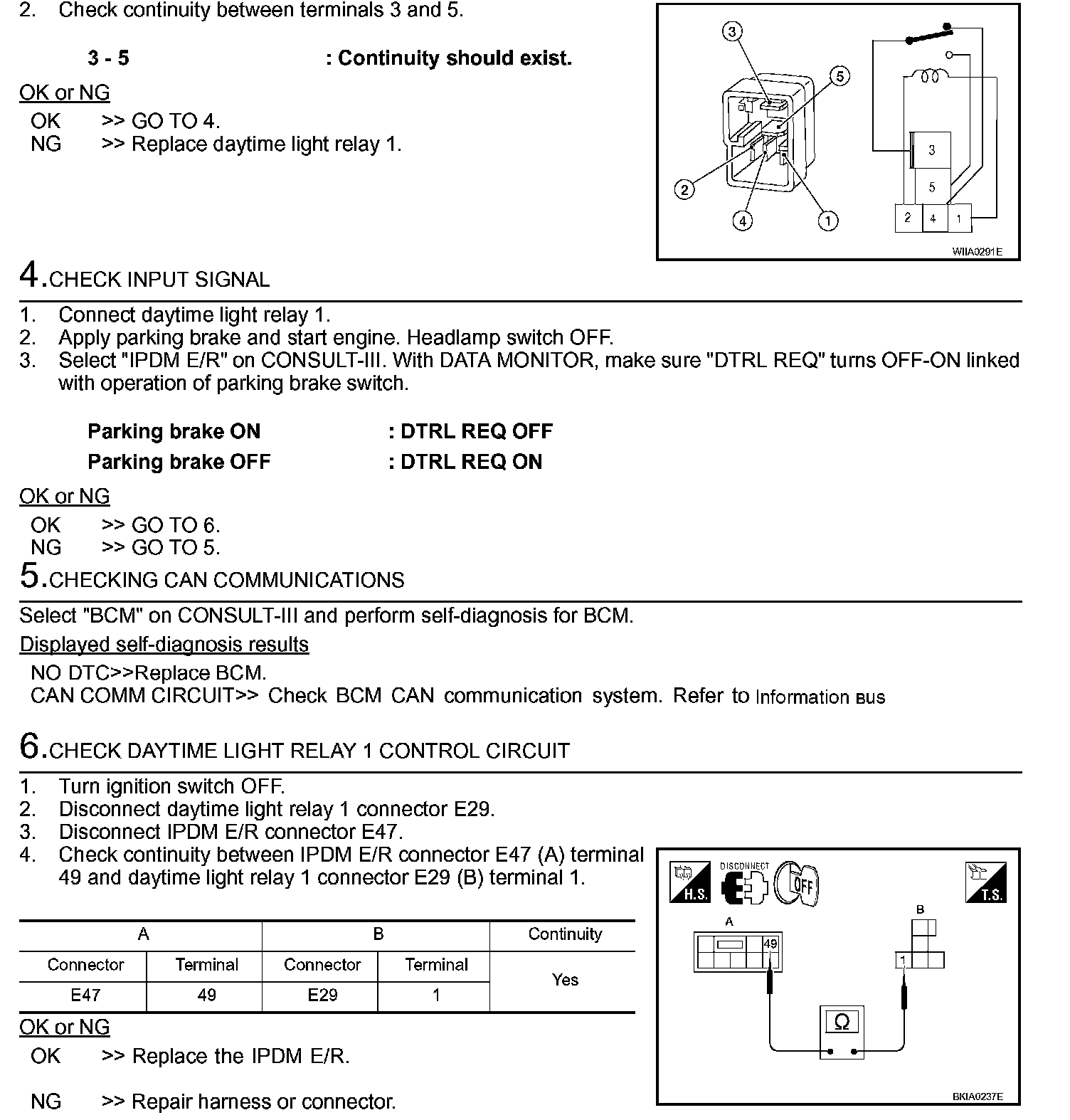

Step 3 (Continued)-6:
