Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Scan Tool Testing and Procedures >> CONSULT-III Function (BCM) >> Data Monitor

Data Monitor

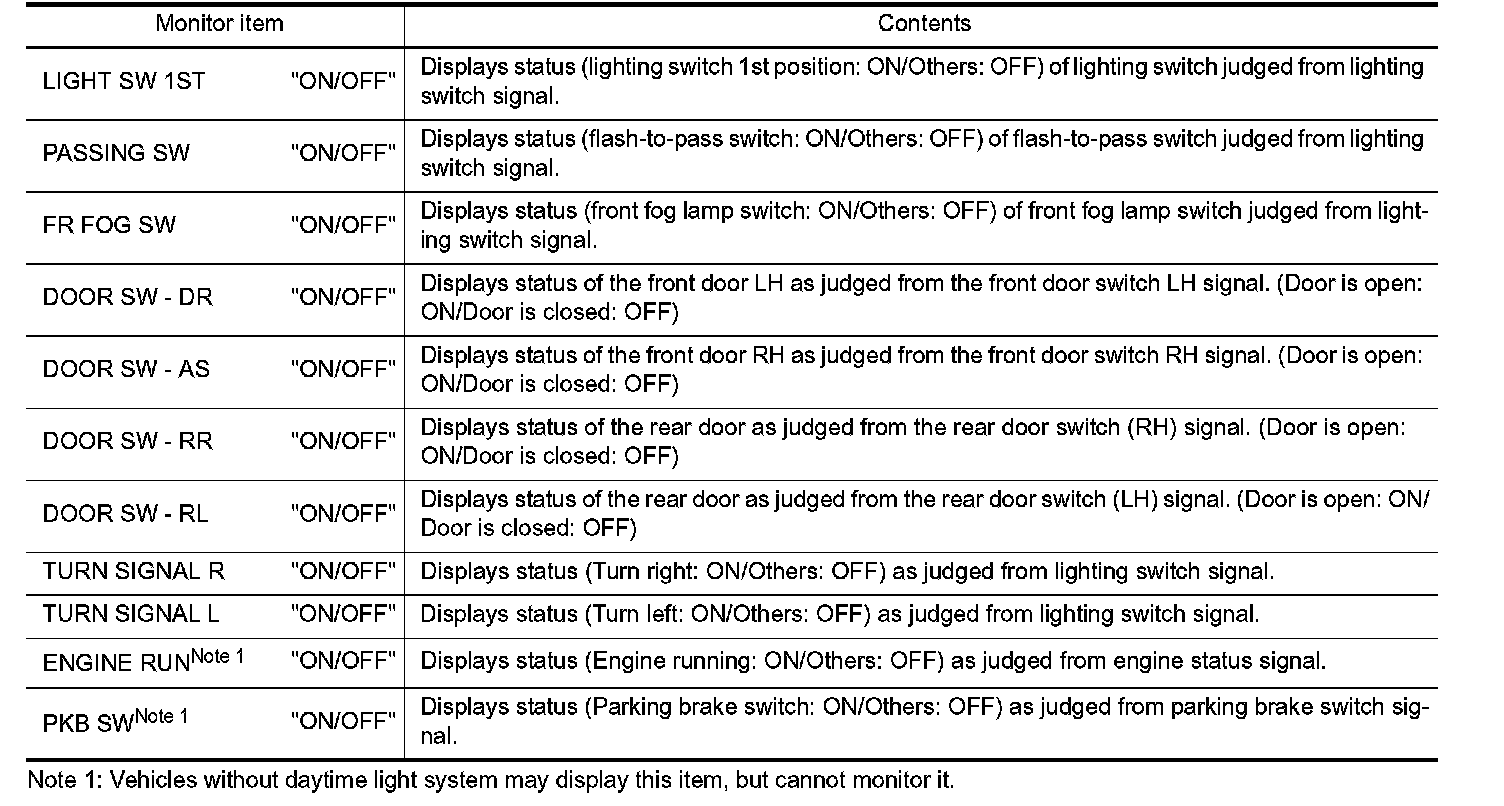

Display Item List - Data Monitor (Part 1):



Display Item List - Data Monitor (Part 2):
