Removal and Installation

HEADLAMP (FOR USA)

Removal and Installation

REMOVAL
1. Disconnect the negative battery terminal.
2. Remove front bumper fascia.

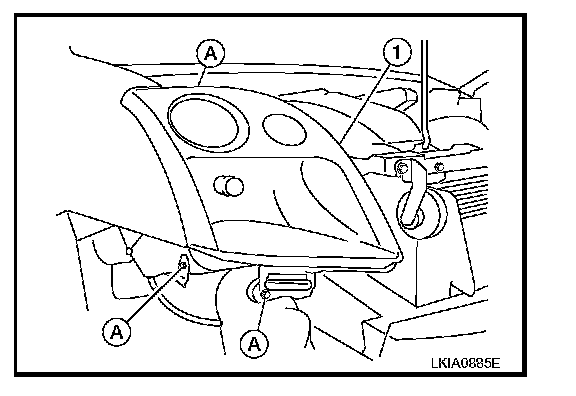

3. Remove the headlamp bolts (A).
4. Pull the headlamp (1) toward the vehicle front, detach the harness clip, disconnect connector, and remove the headlamp.

INSTALLATION
Installation is in the reverse order of removal.
- After installation, perform aiming adjustment. Refer to LT-21, "Aiming Adjustment". Adjustments
