Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Front Fog Lamps Do Not Illuminate (Both Sides)

Front Fog Lamps Do Not Illuminate (Both Sides)

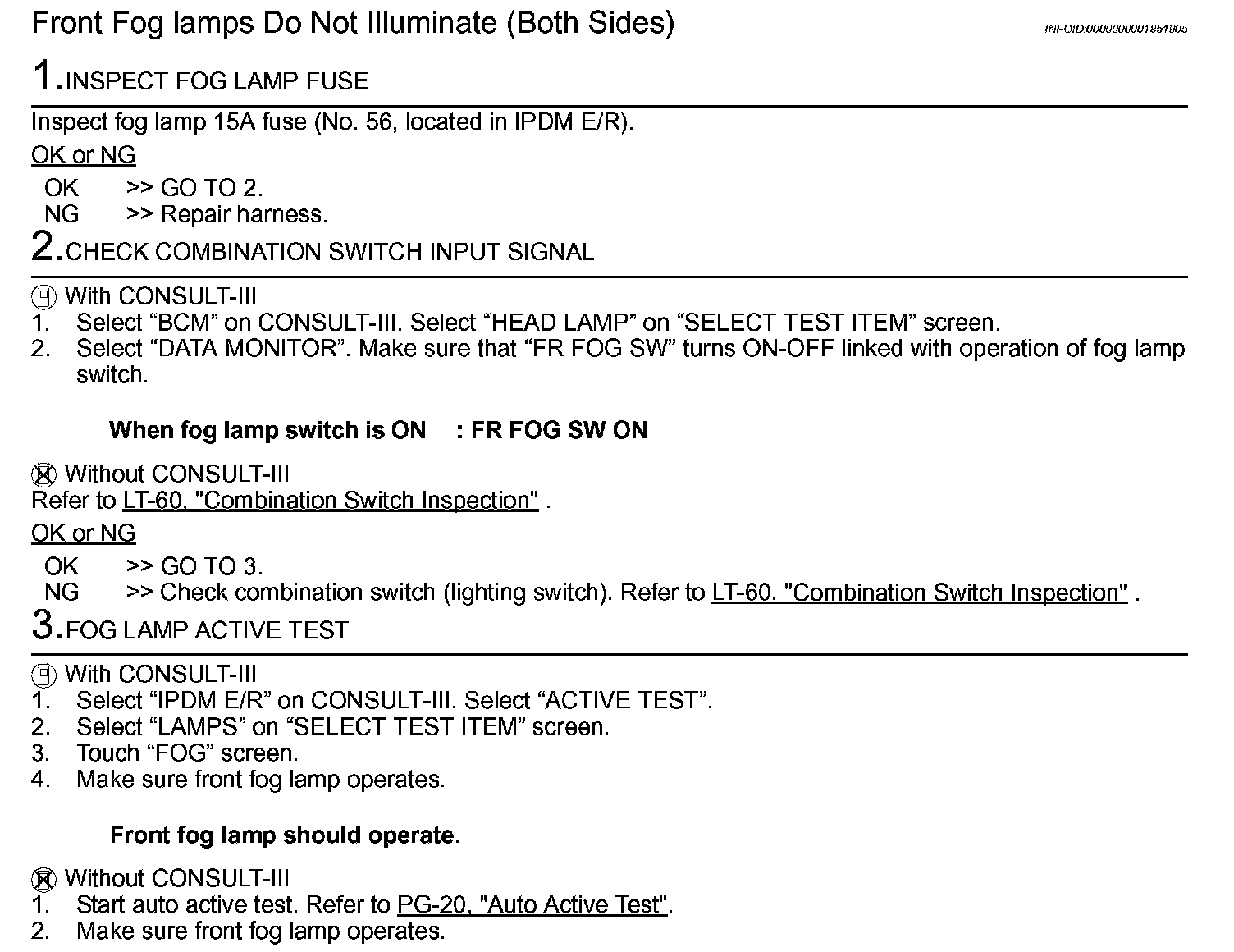

Step 1-3:

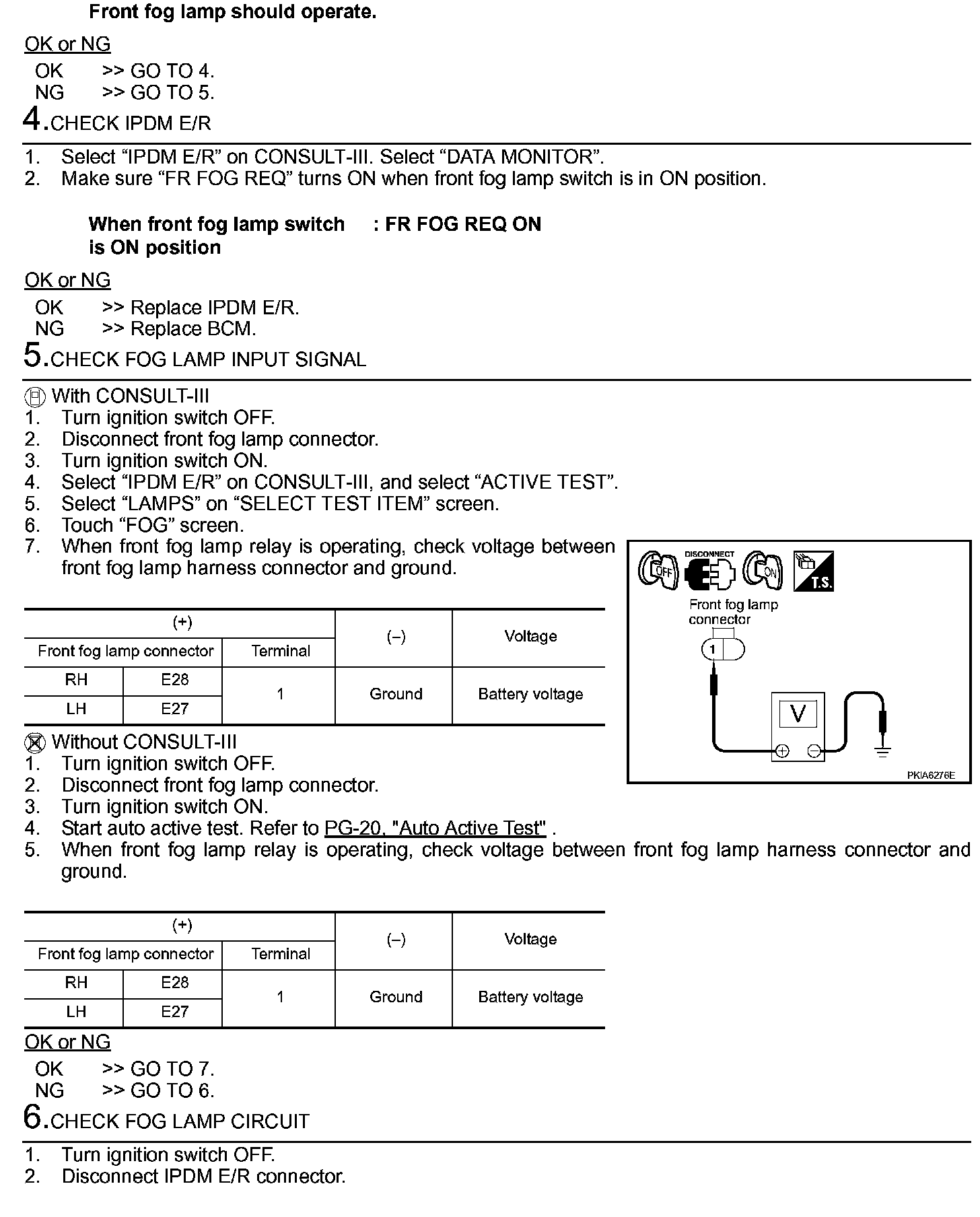

Step 3 (Continued)-6:

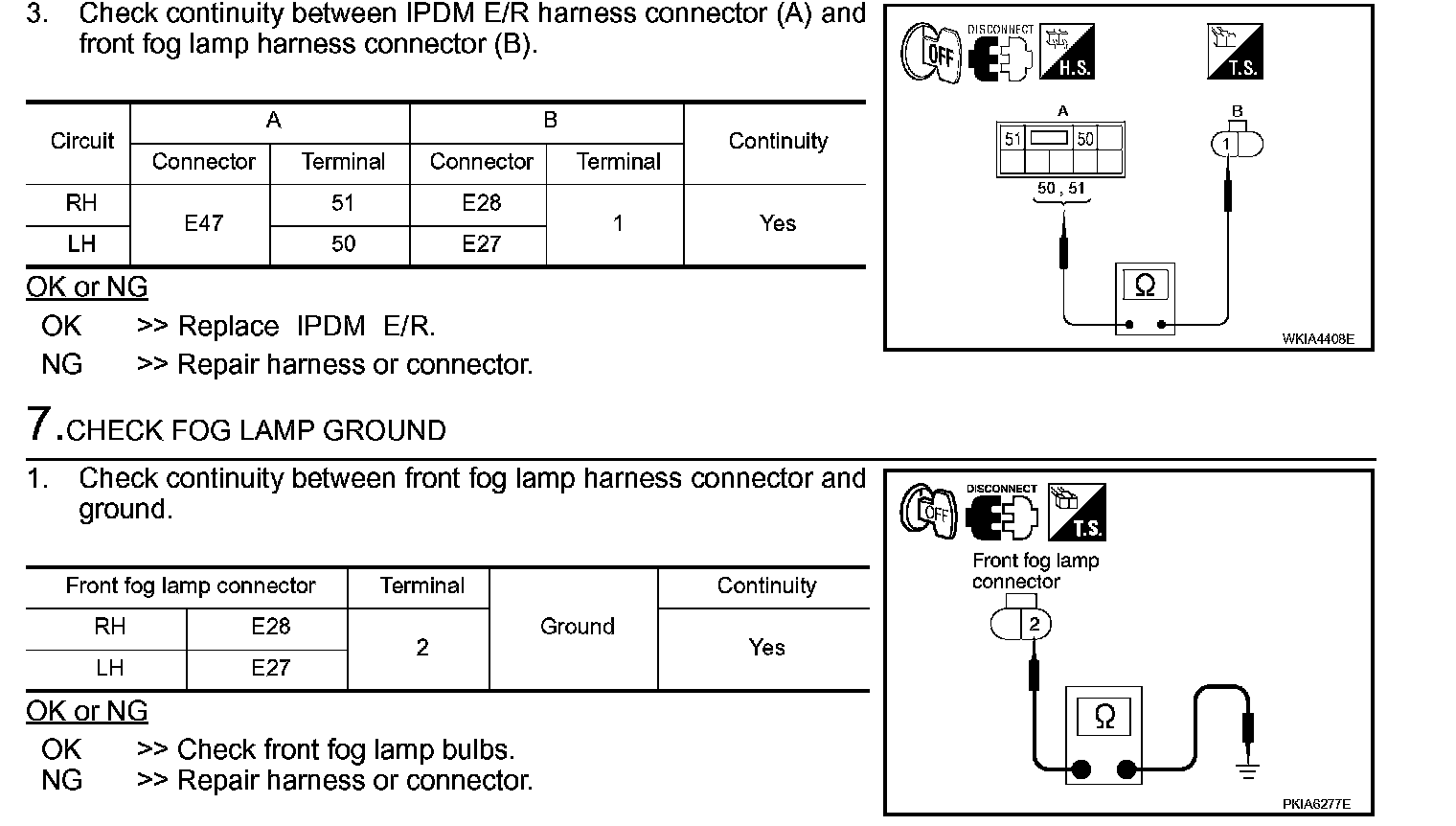

Step 6 (Continued)-7:
