Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Tire Monitoring System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Flash Code/Symptom Chart

Flash Code/Symptom Chart

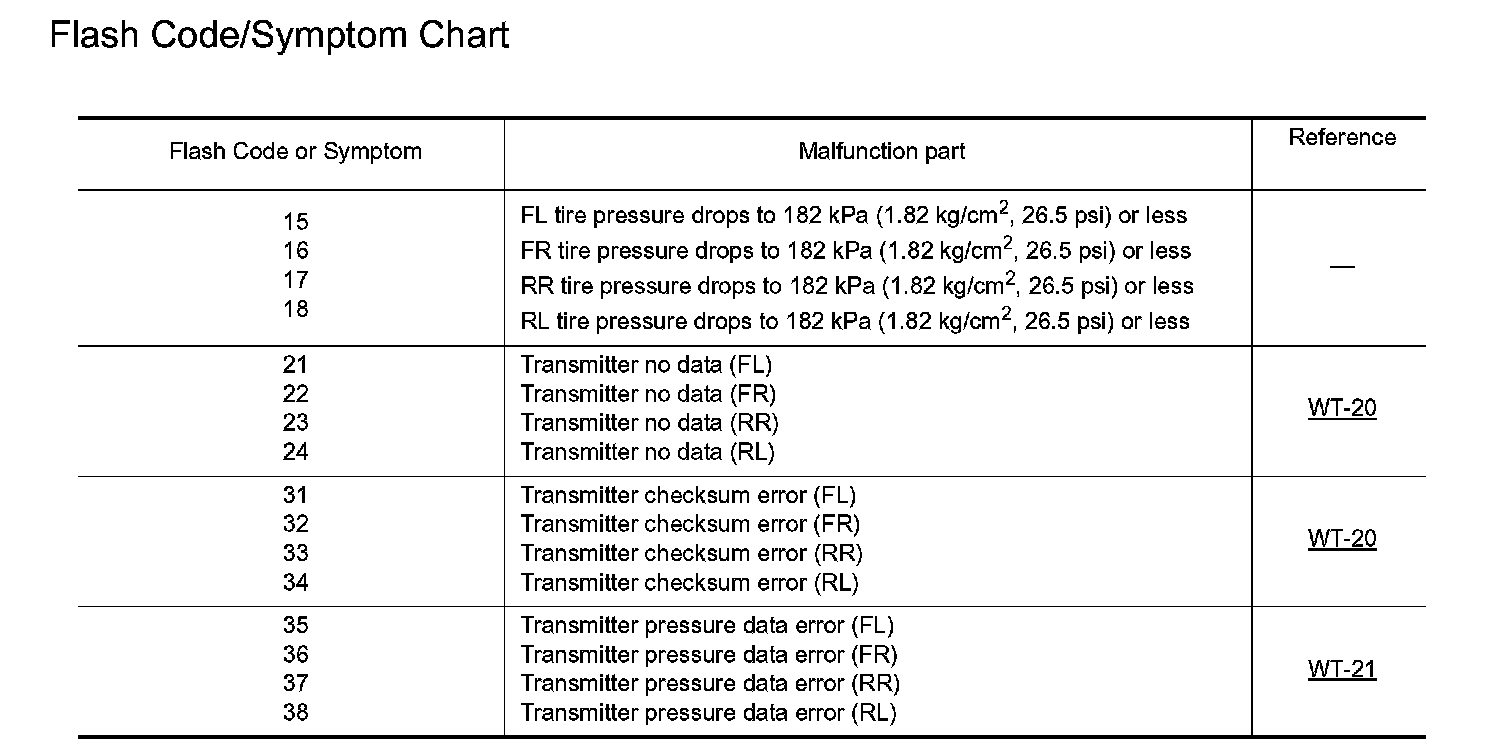

Flash Code/Symptom Chart (Part 1):

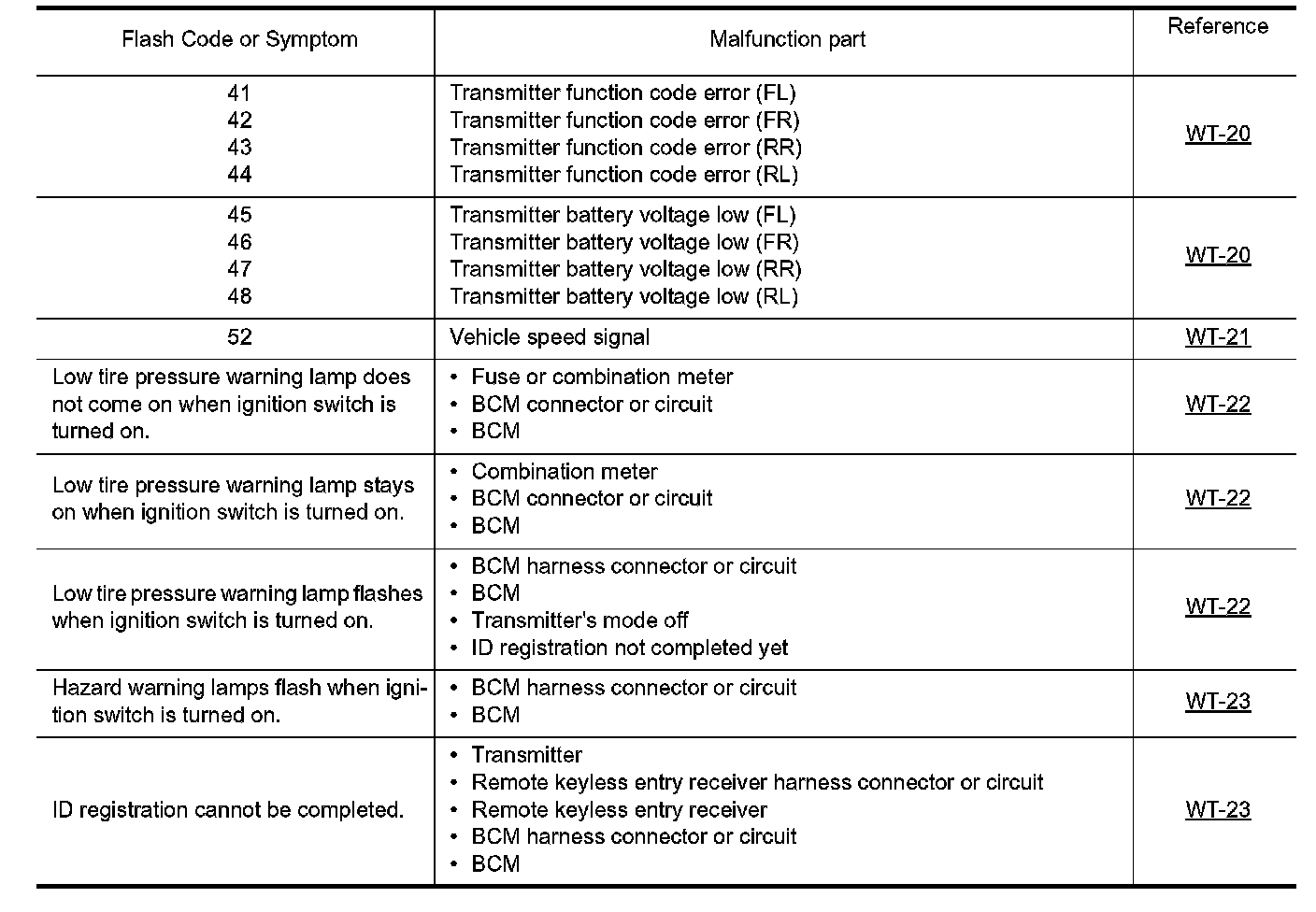

Flash Code/Symptom Chart (Part 2):
