Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Combination Meters >> Fuel Gauge Does Not Move to Full-Position

Fuel Gauge Does Not Move to Full-Position

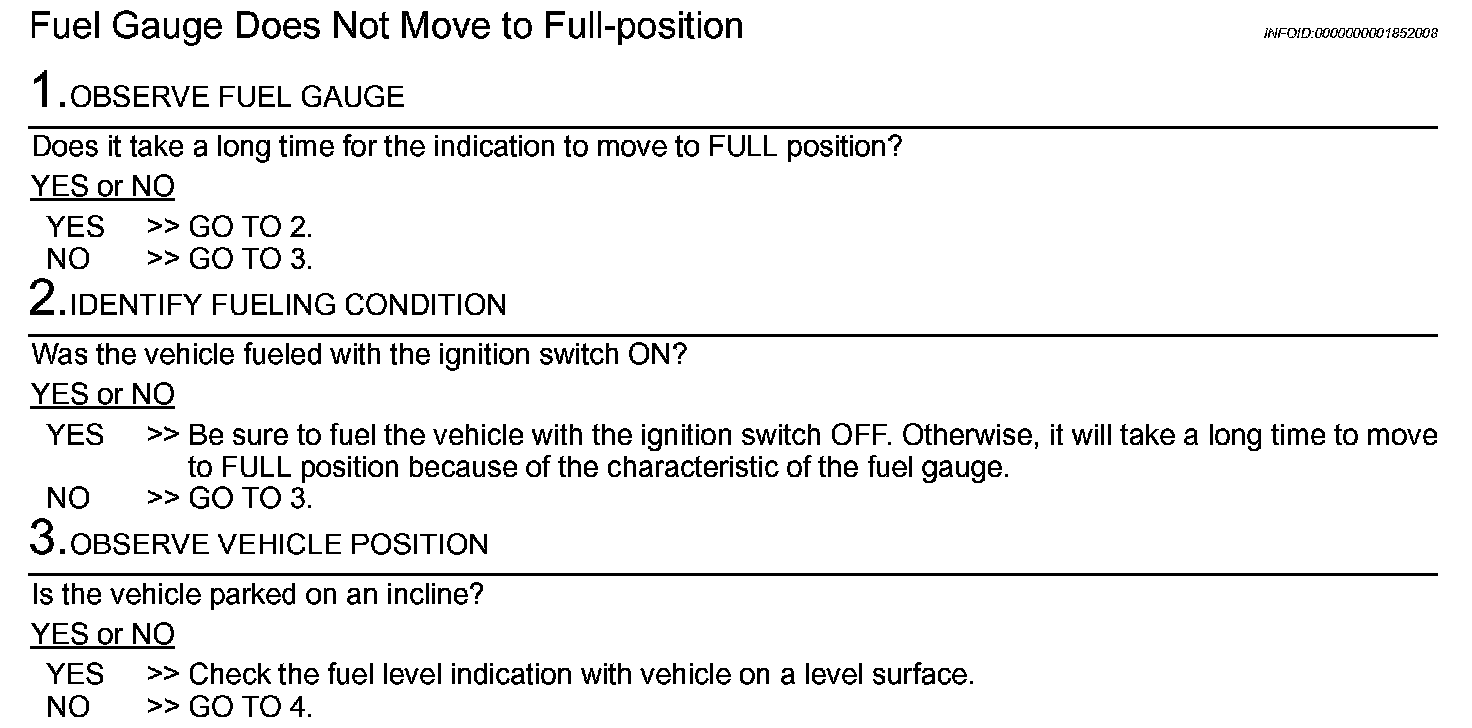

Step 1-3:

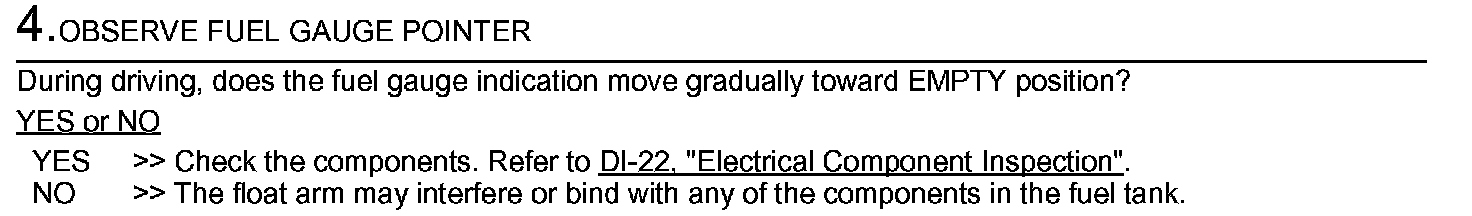

Step 4:
