Magnet Clutch Circuit

Magnet Clutch Circuit
SYMPTOM: Magnet clutch does not engage.

Step 1-6:

Step 6 (Continued):

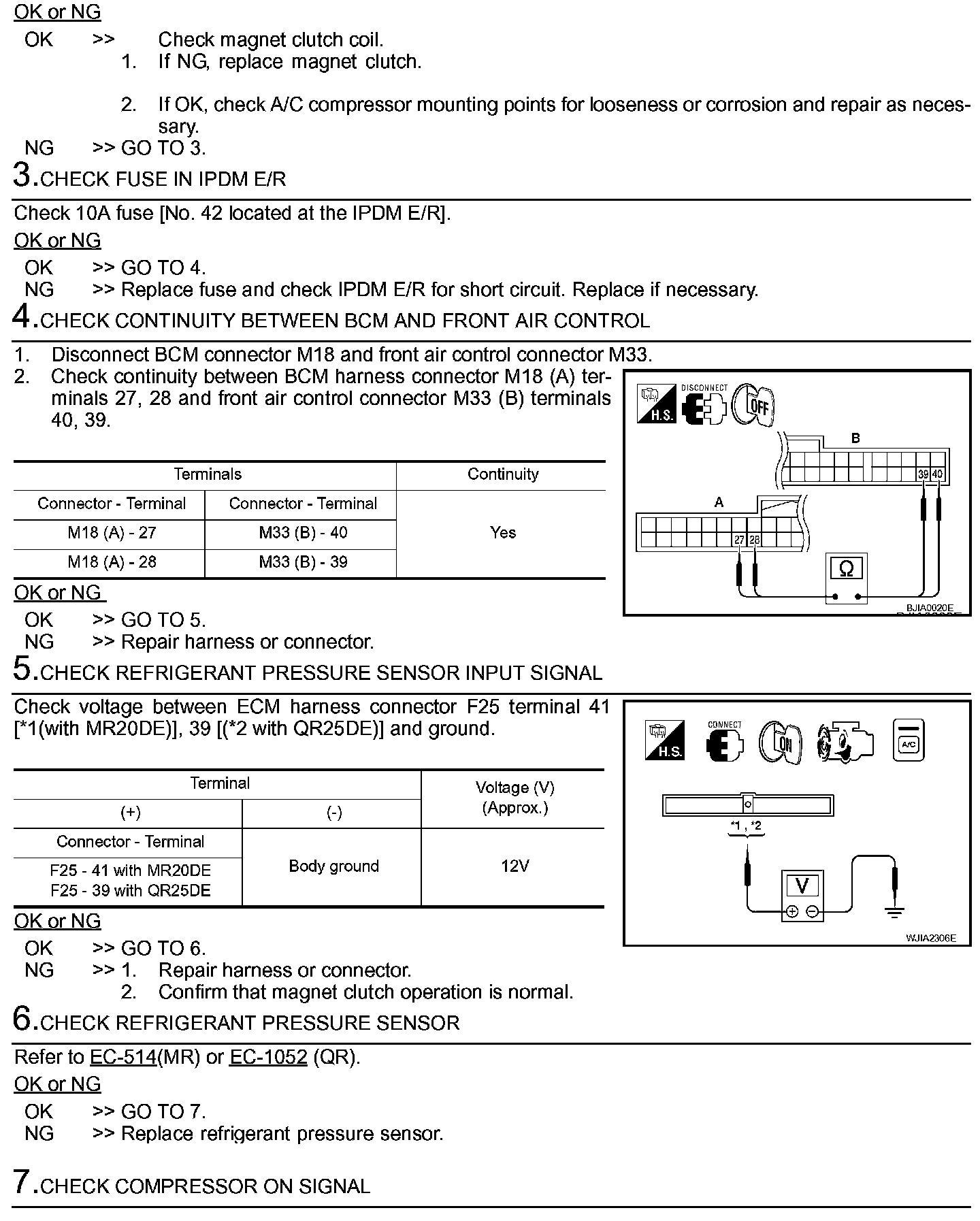

INSPECTION FLOW

SYSTEM DESCRIPTION
Front air control controls compressor operation by a signal from ECM.

Step 1-2:

Step 2 (Continued)-7:

Step 7 (Continued)-8:

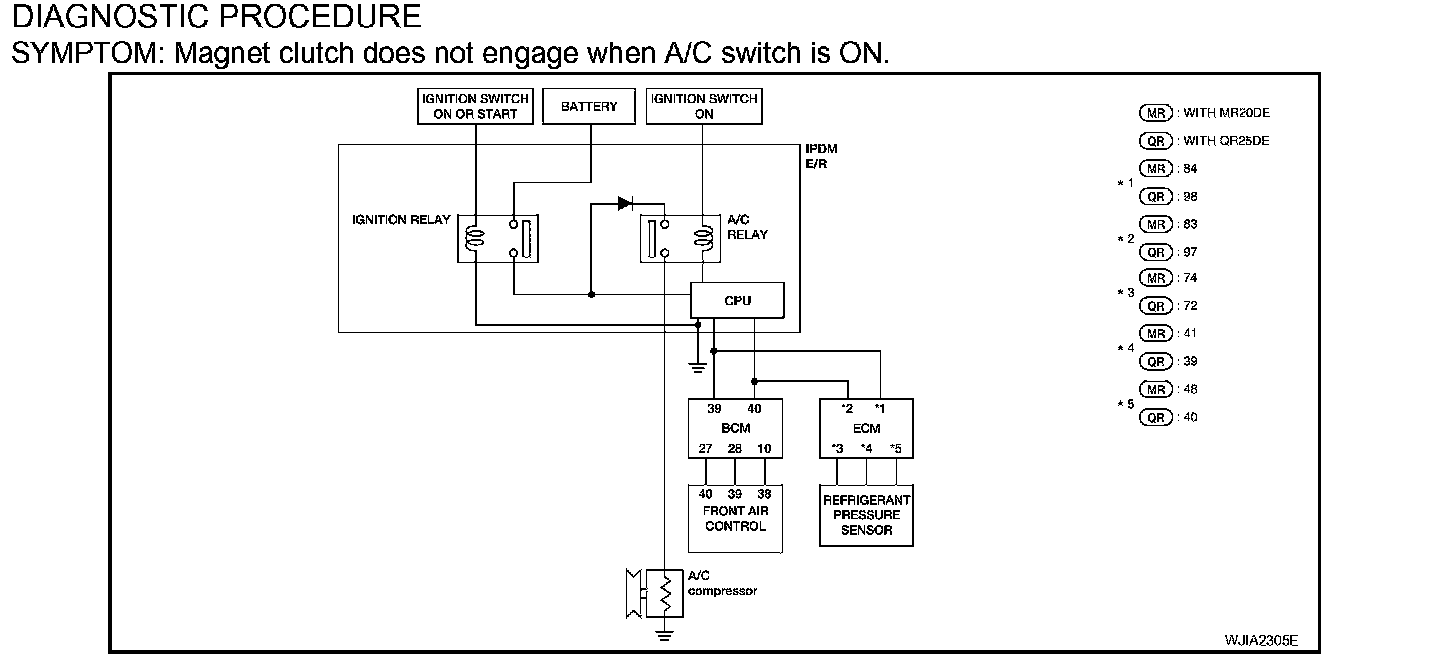

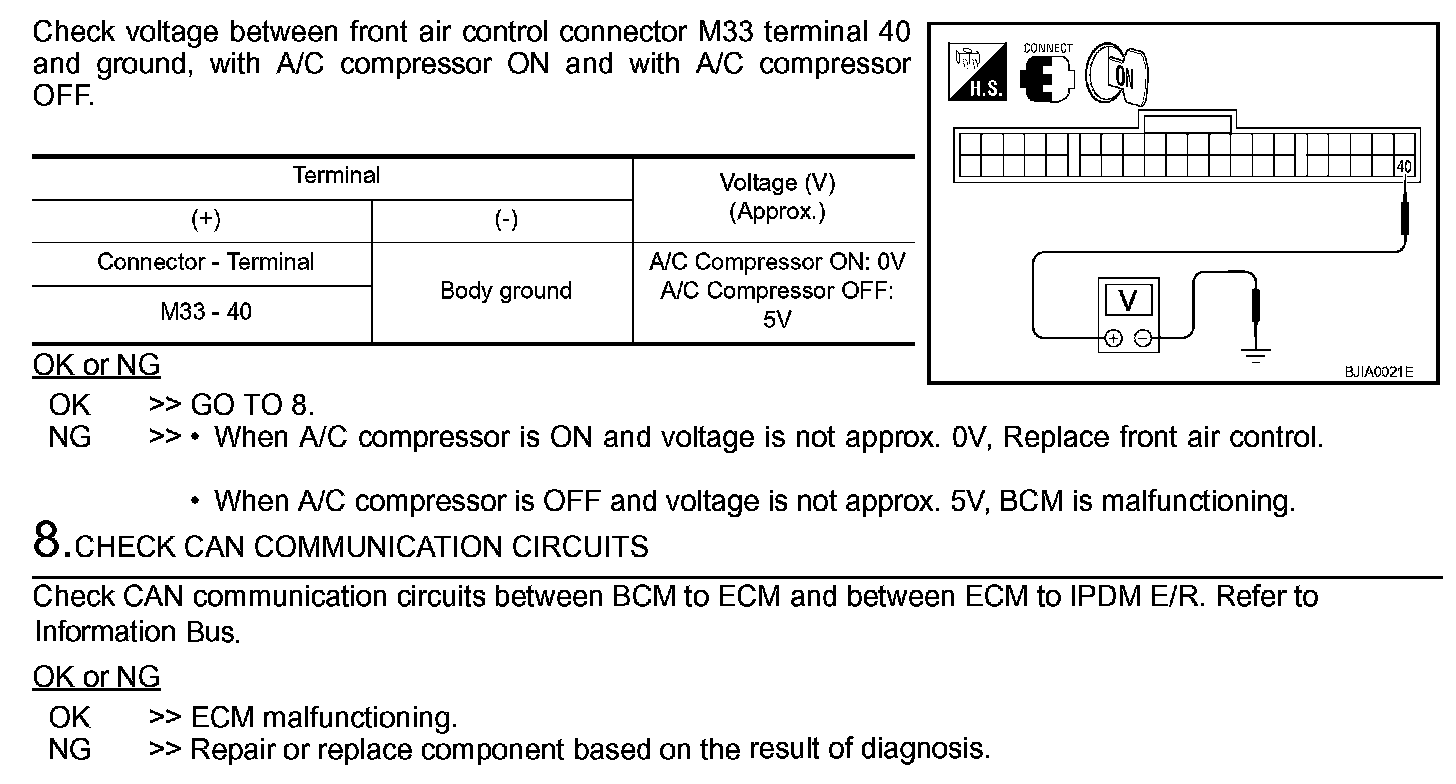

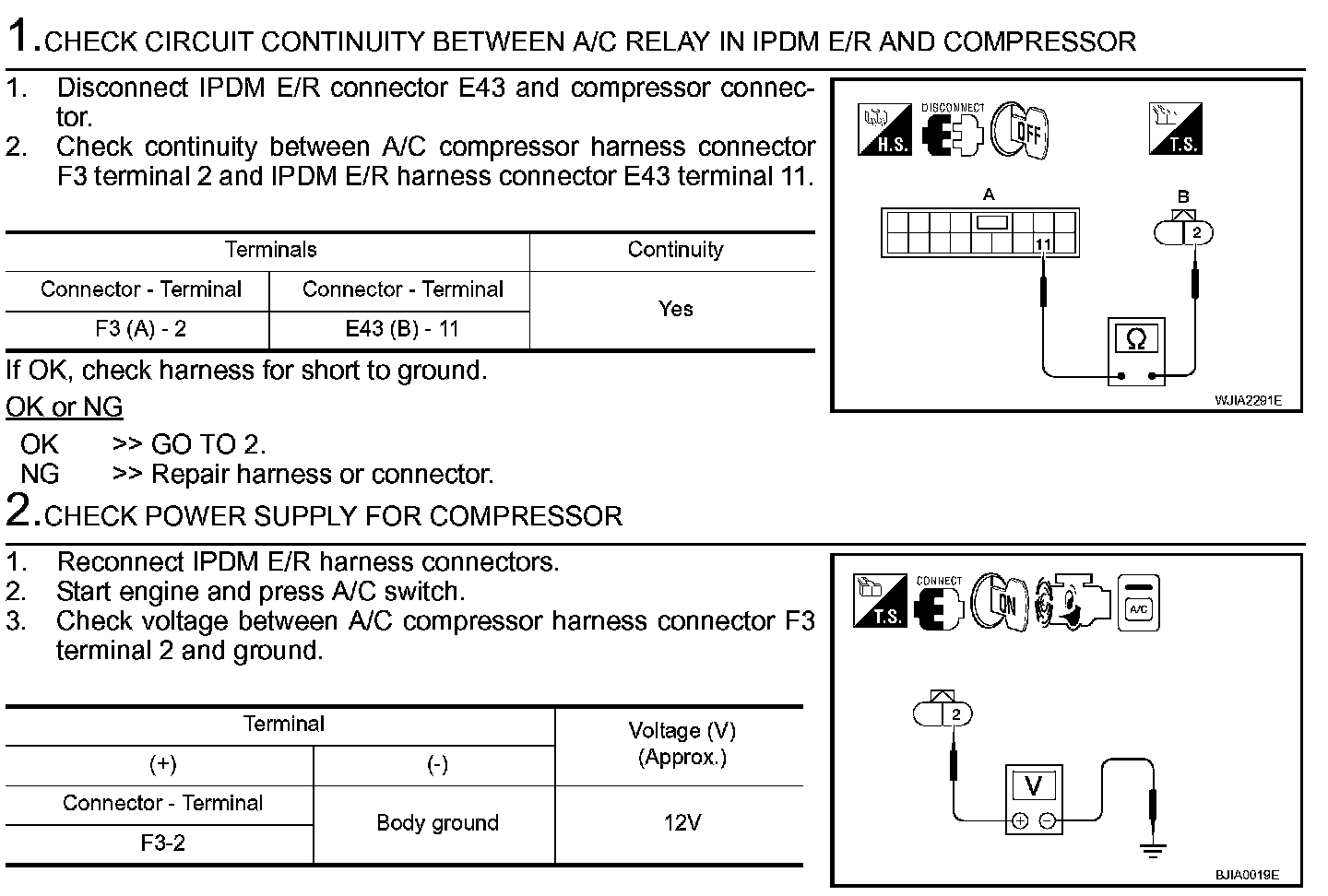

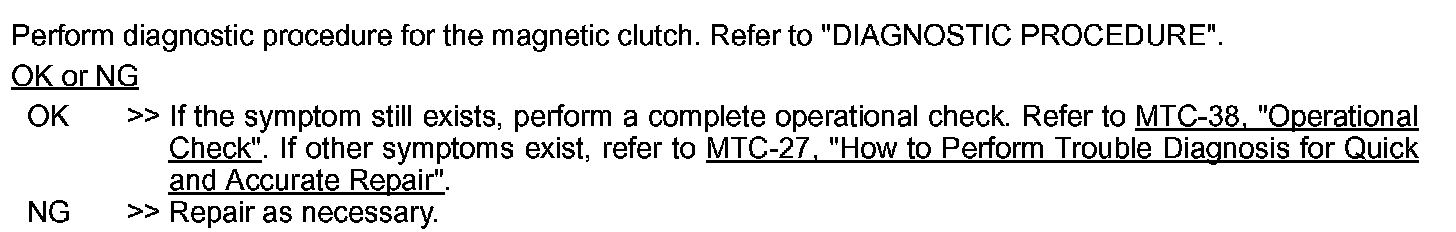

DIAGNOSTIC PROCEDURE
