LAN System Circuit

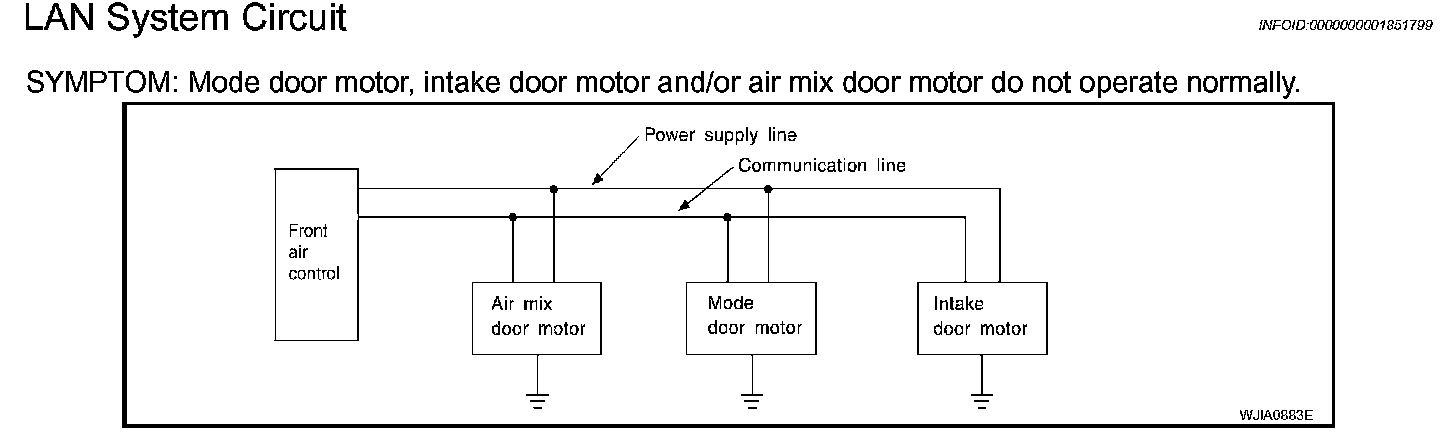

LAN System Circuit

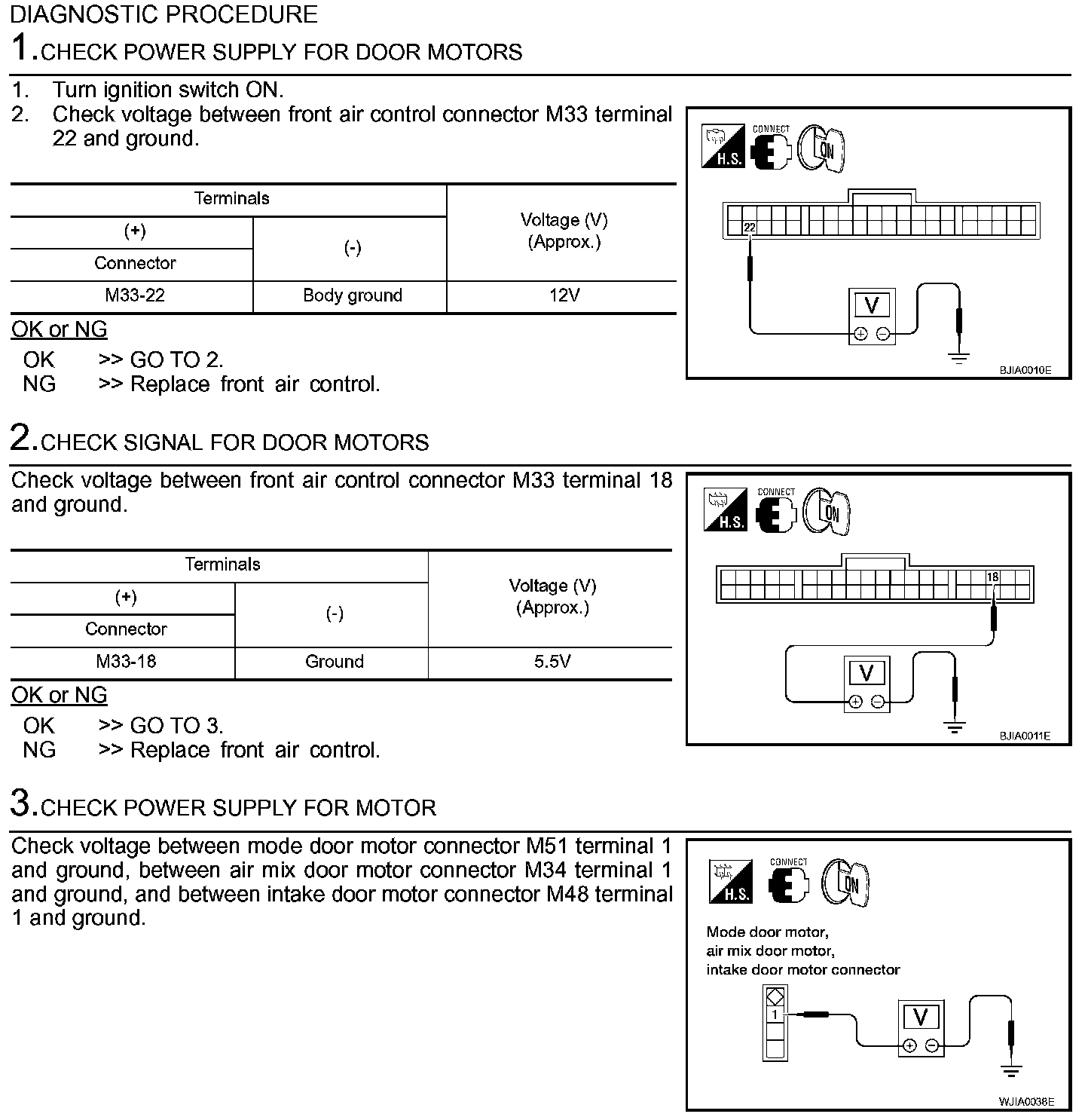

Step 1-3:

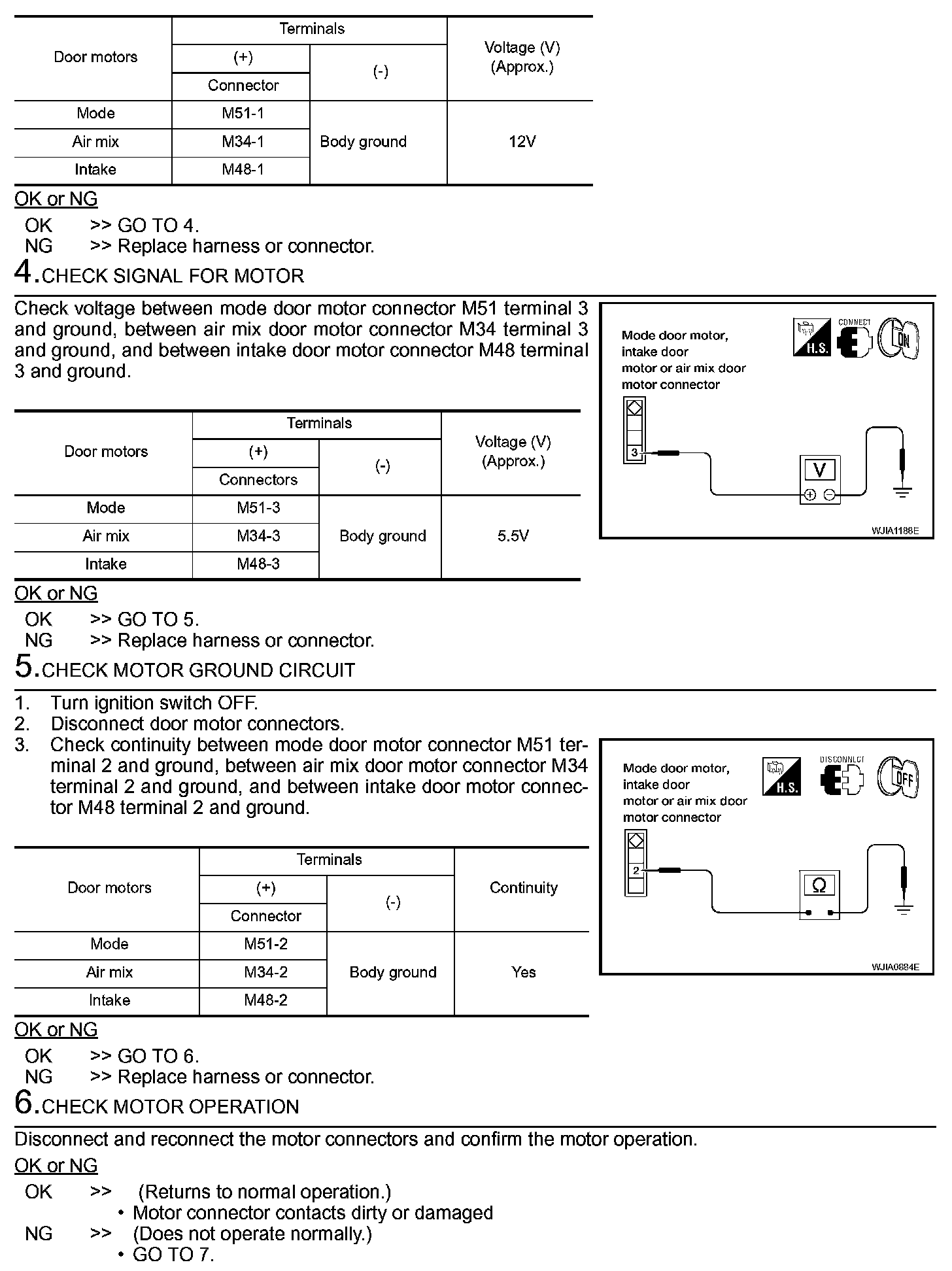

Step 3 (Continued)-6:

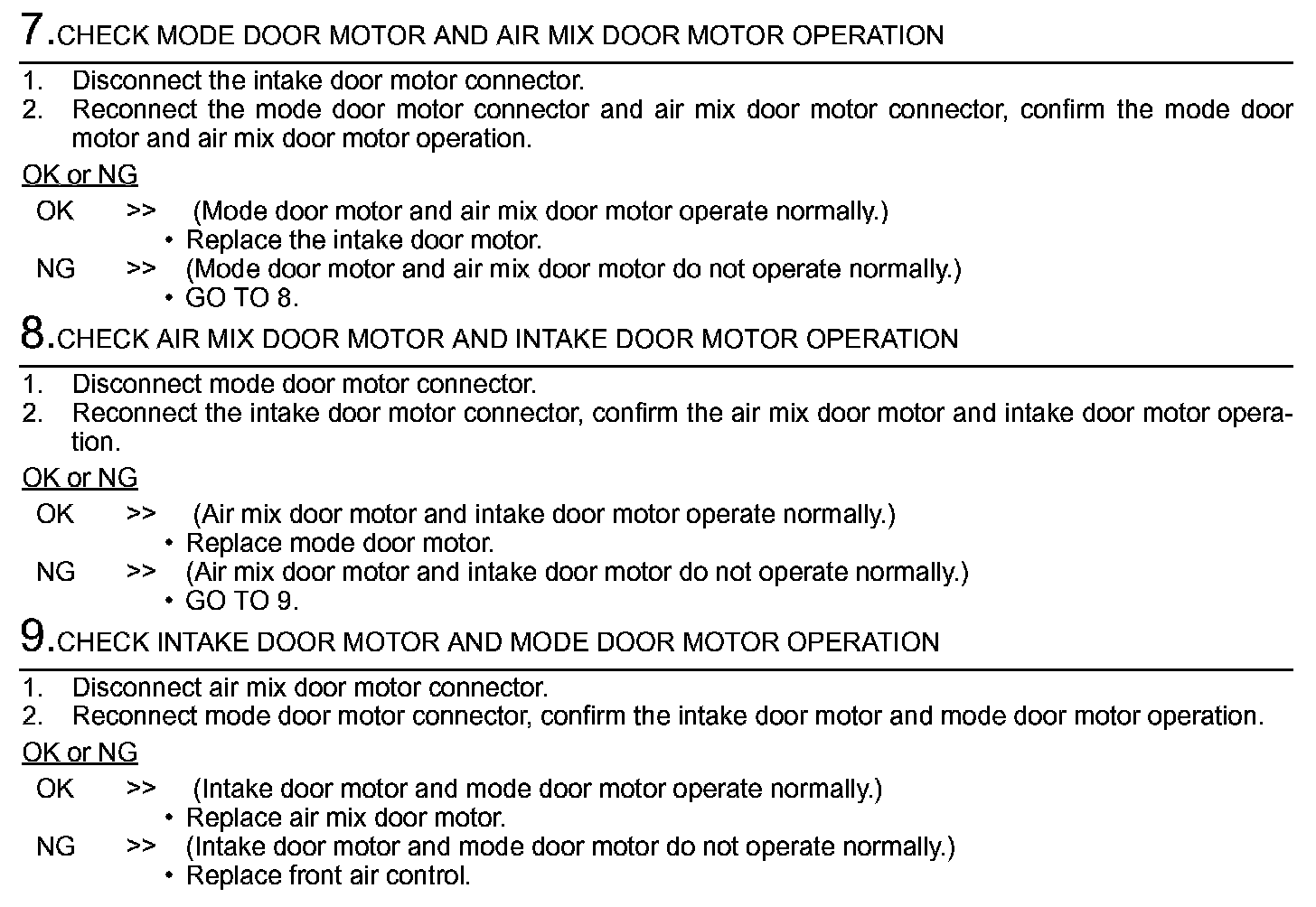

Step 7-9:

DIAGNOSTIC PROCEDURE
