System Diagram

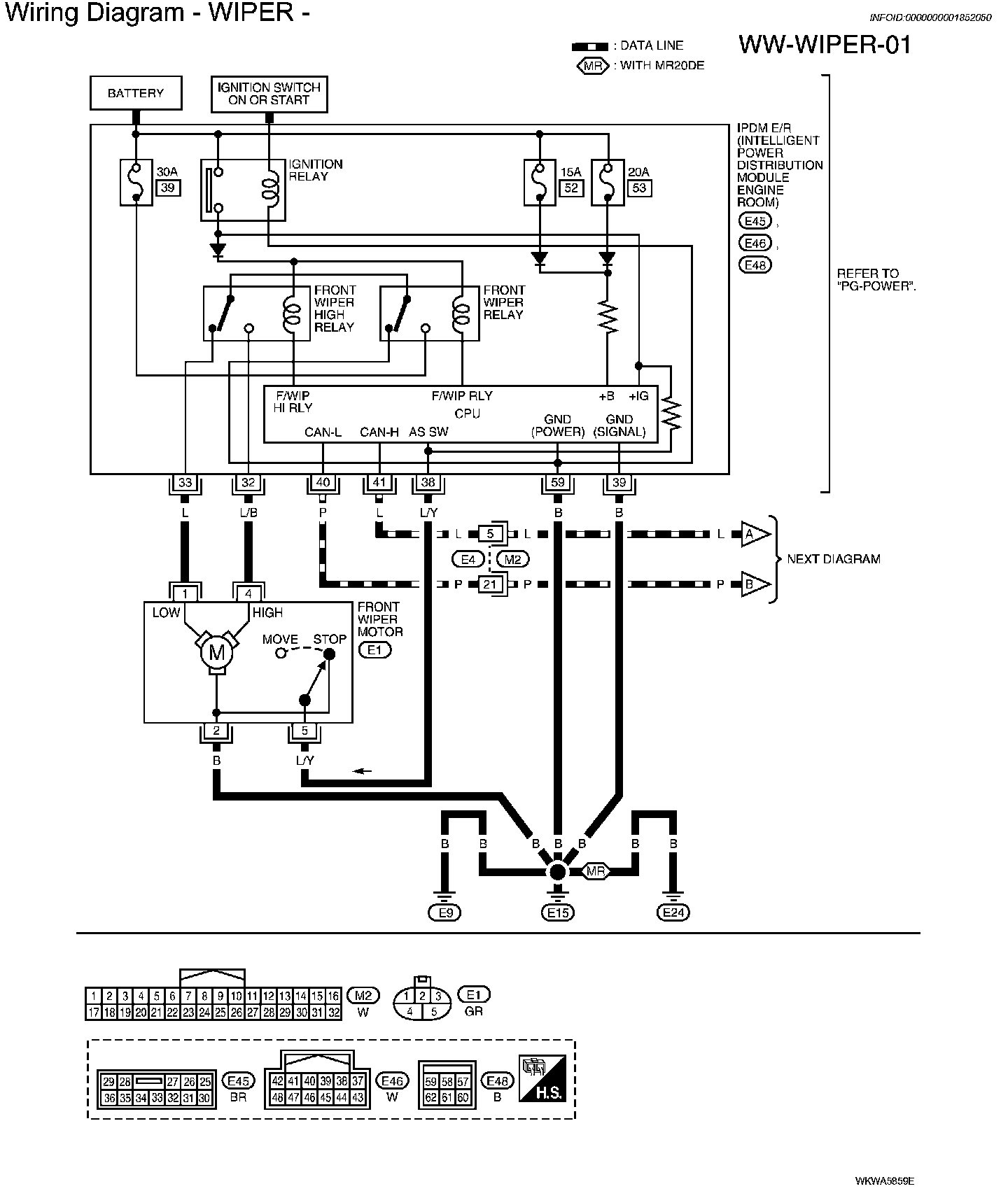

WW-WIPER-01:

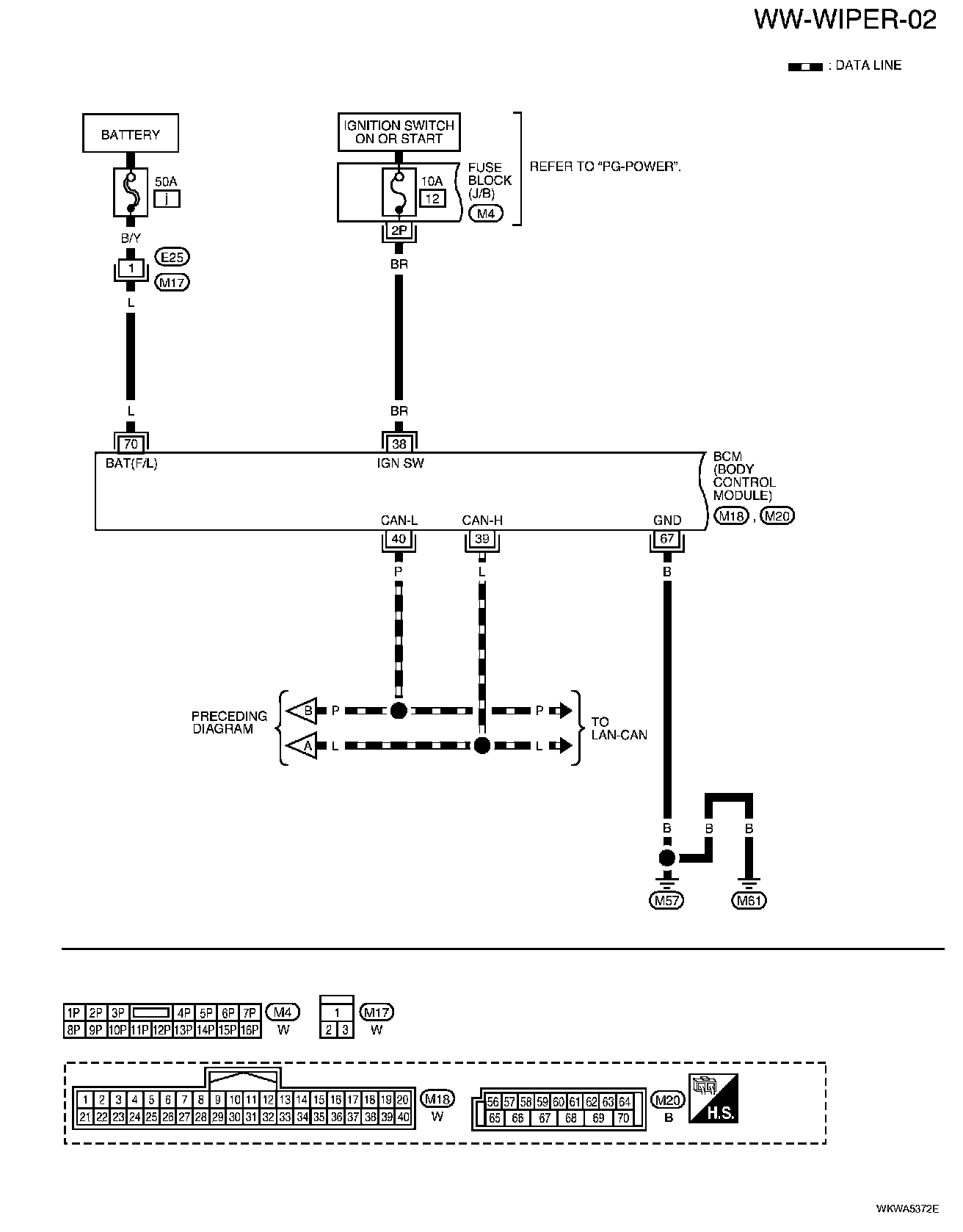

WW-WIPER-02:

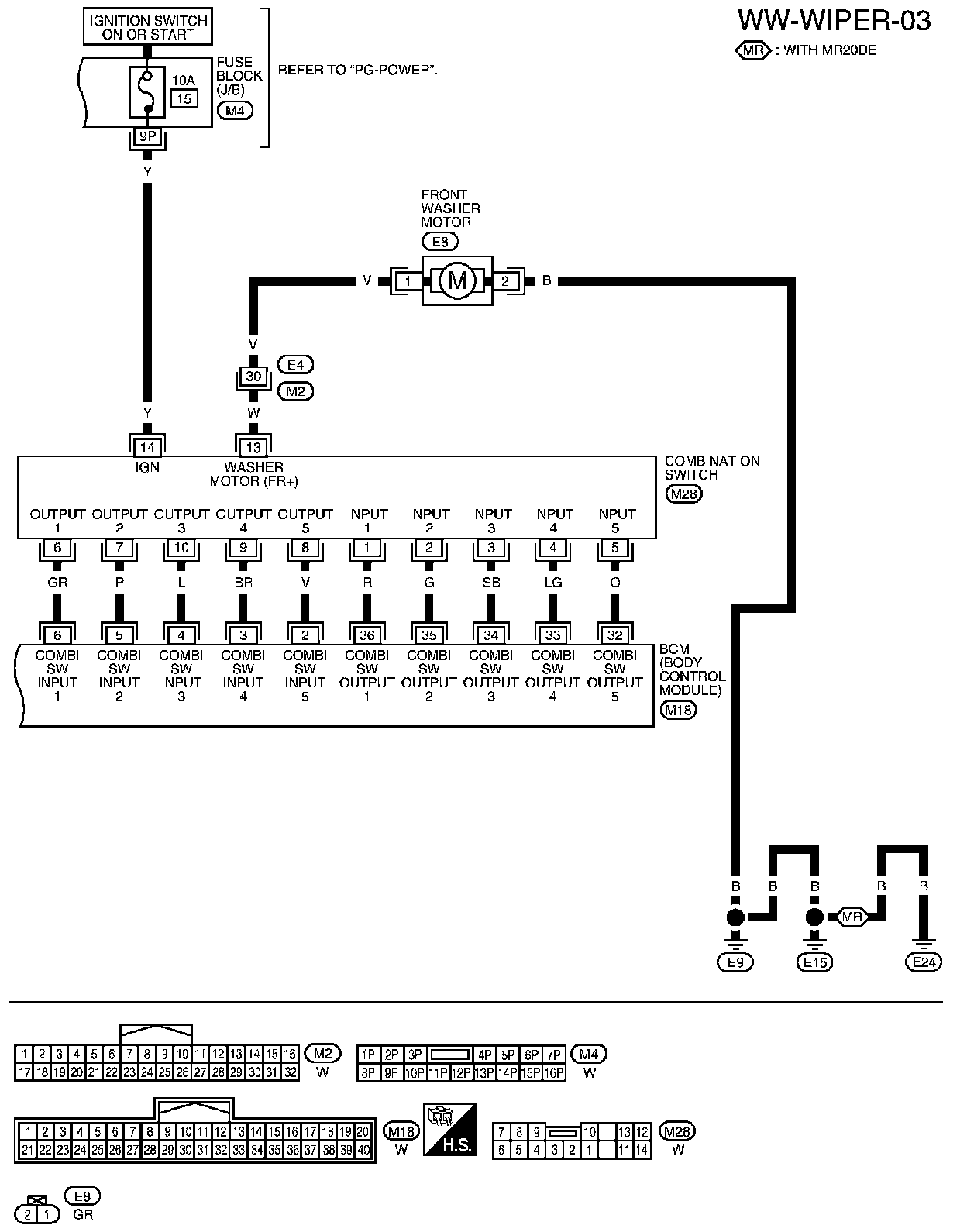

WW-WIPER-03:

Wiring Diagram - WIPER -

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
