Schematic

Schematic

Schematic (With Automatic Close)

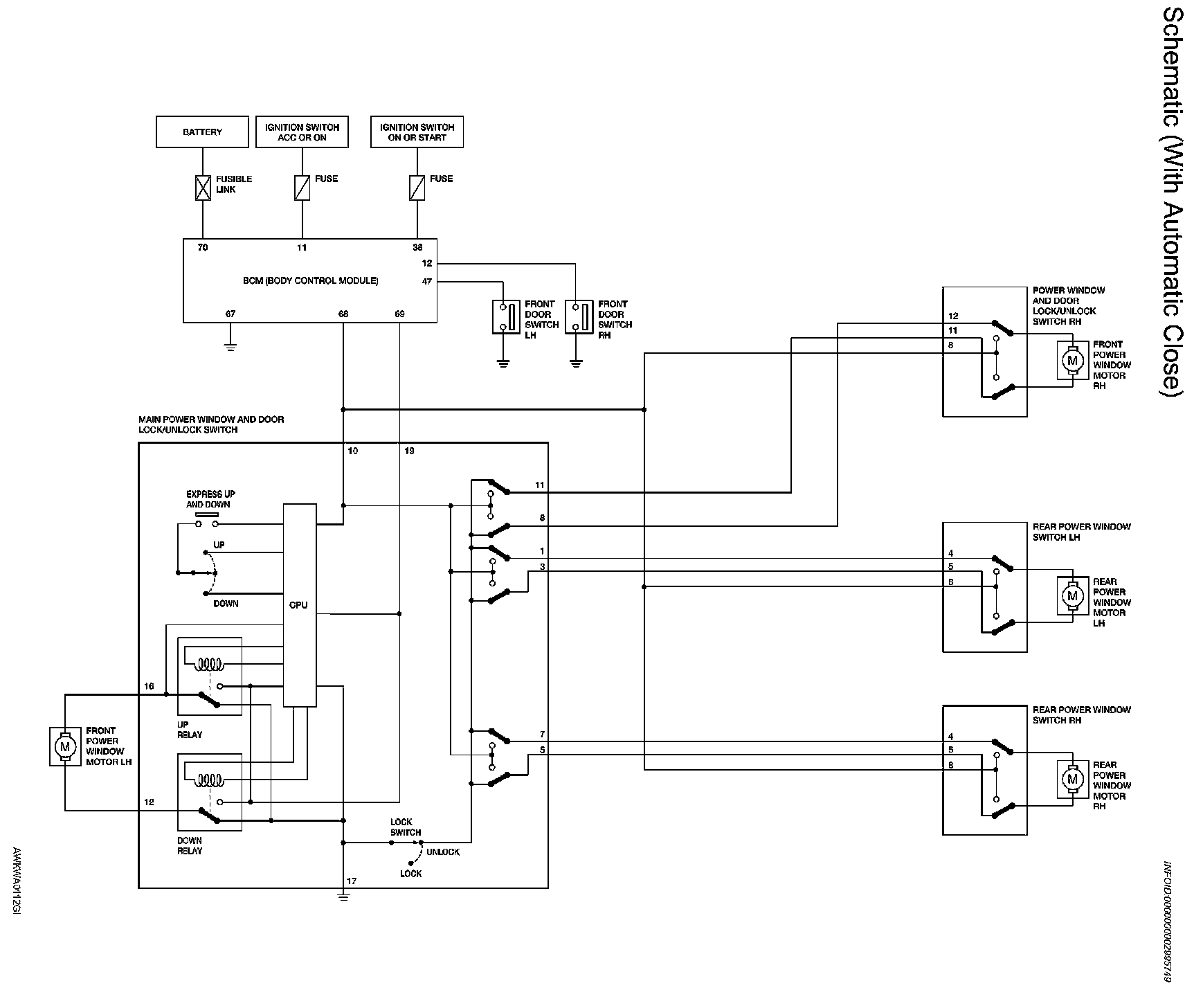

Power Window System Schematic (With Automatic Close):






Schematic (Without Automatic Close)

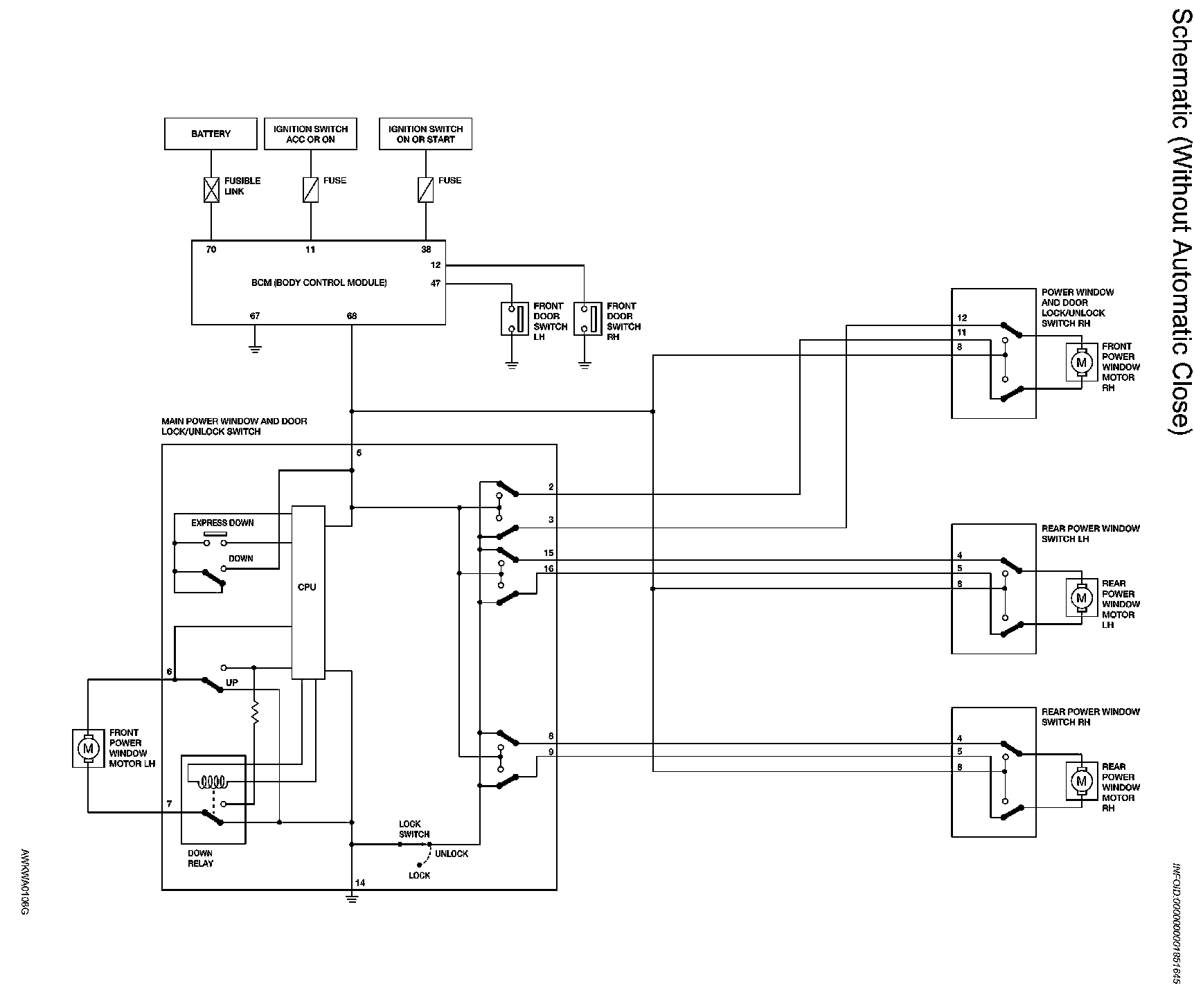

Power Window System Schematic (Without Automatic Close):
