Power Supply Routing Circuit Schematic

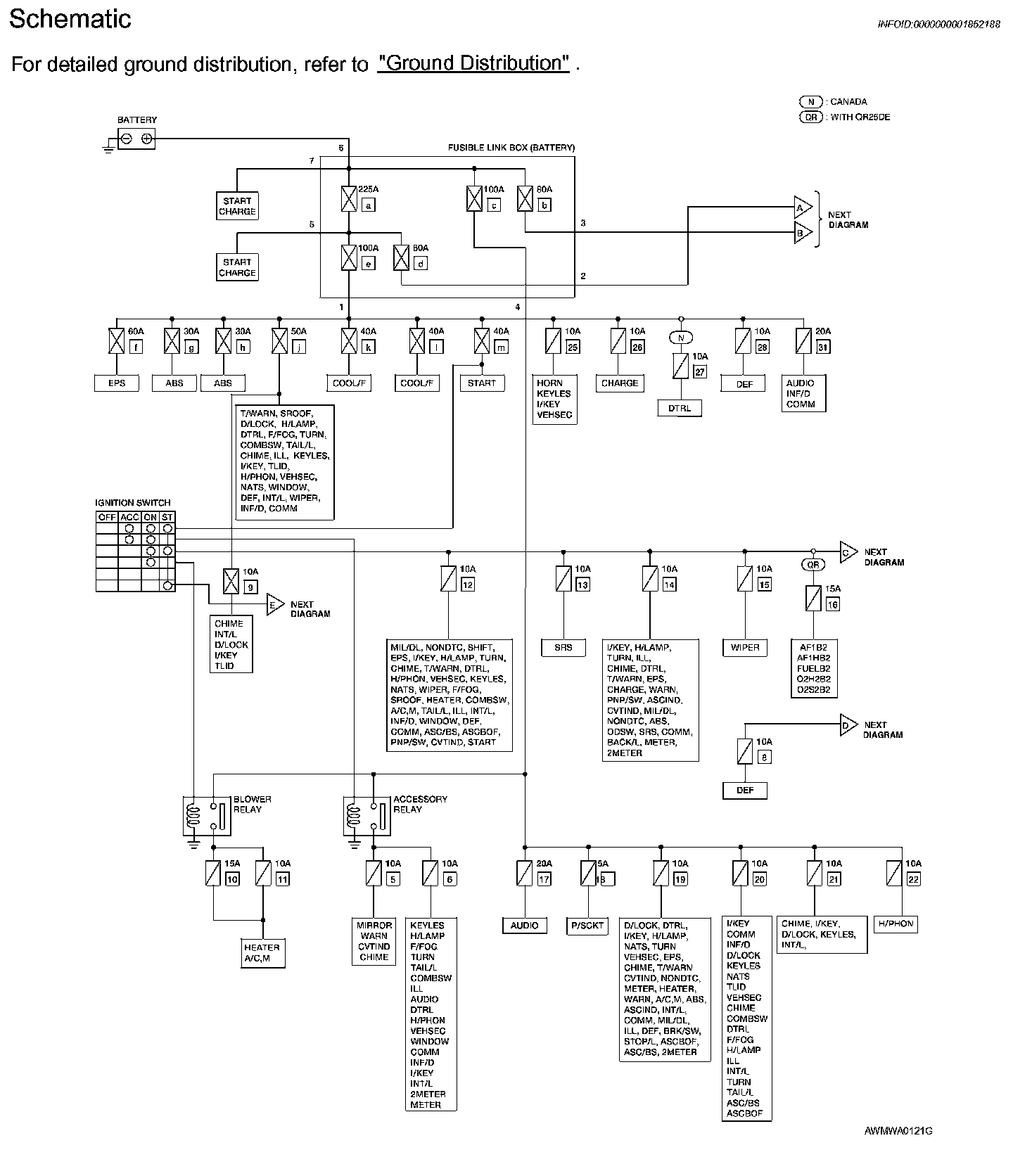

Power Supply Routing Circuit Schematic (Part 1):

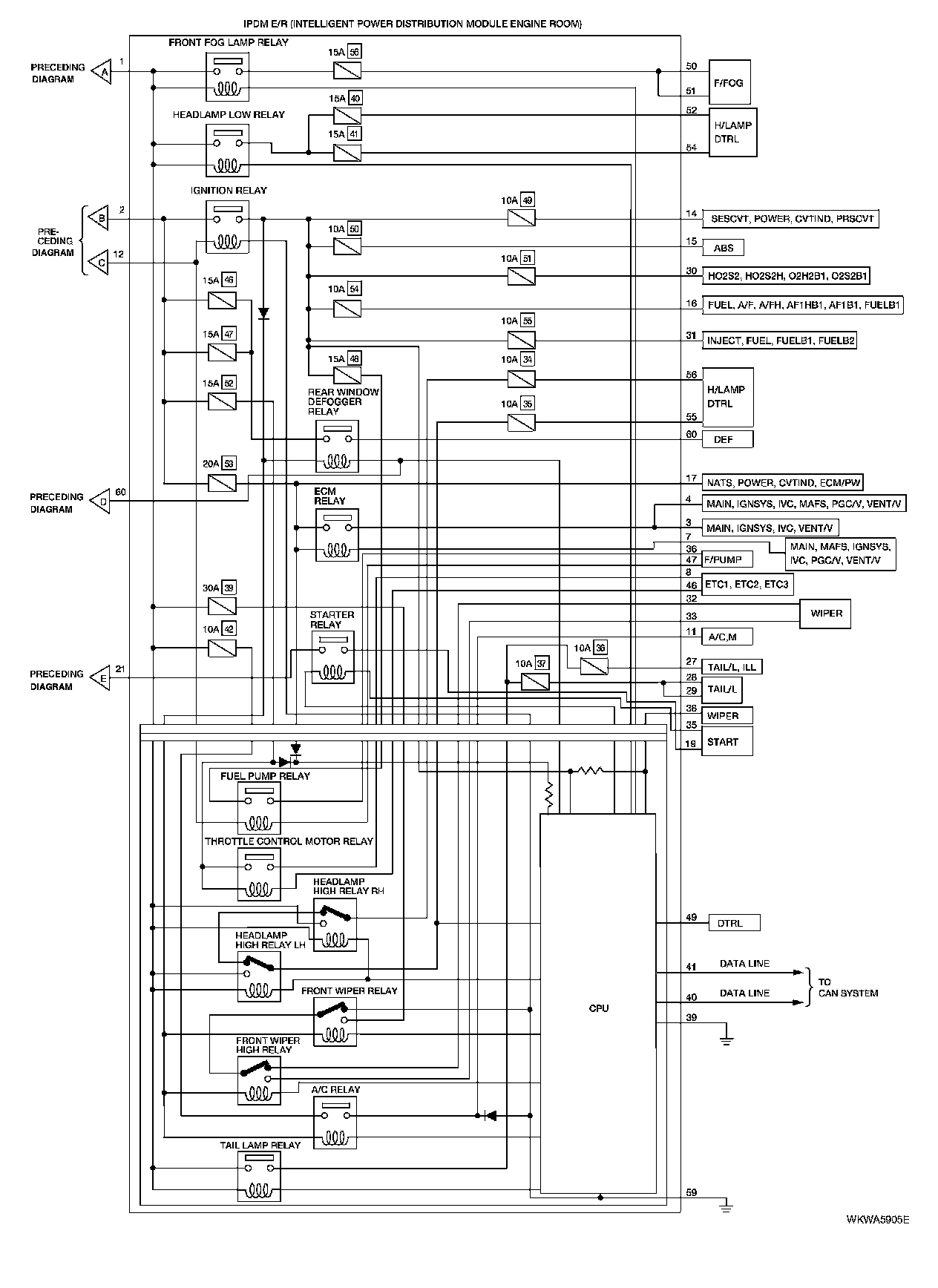

Power Supply Routing Circuit Schematic (Part 2):
