Auxiliary Power Outlet

POWER SOCKET

WW-P/SCKT-01:

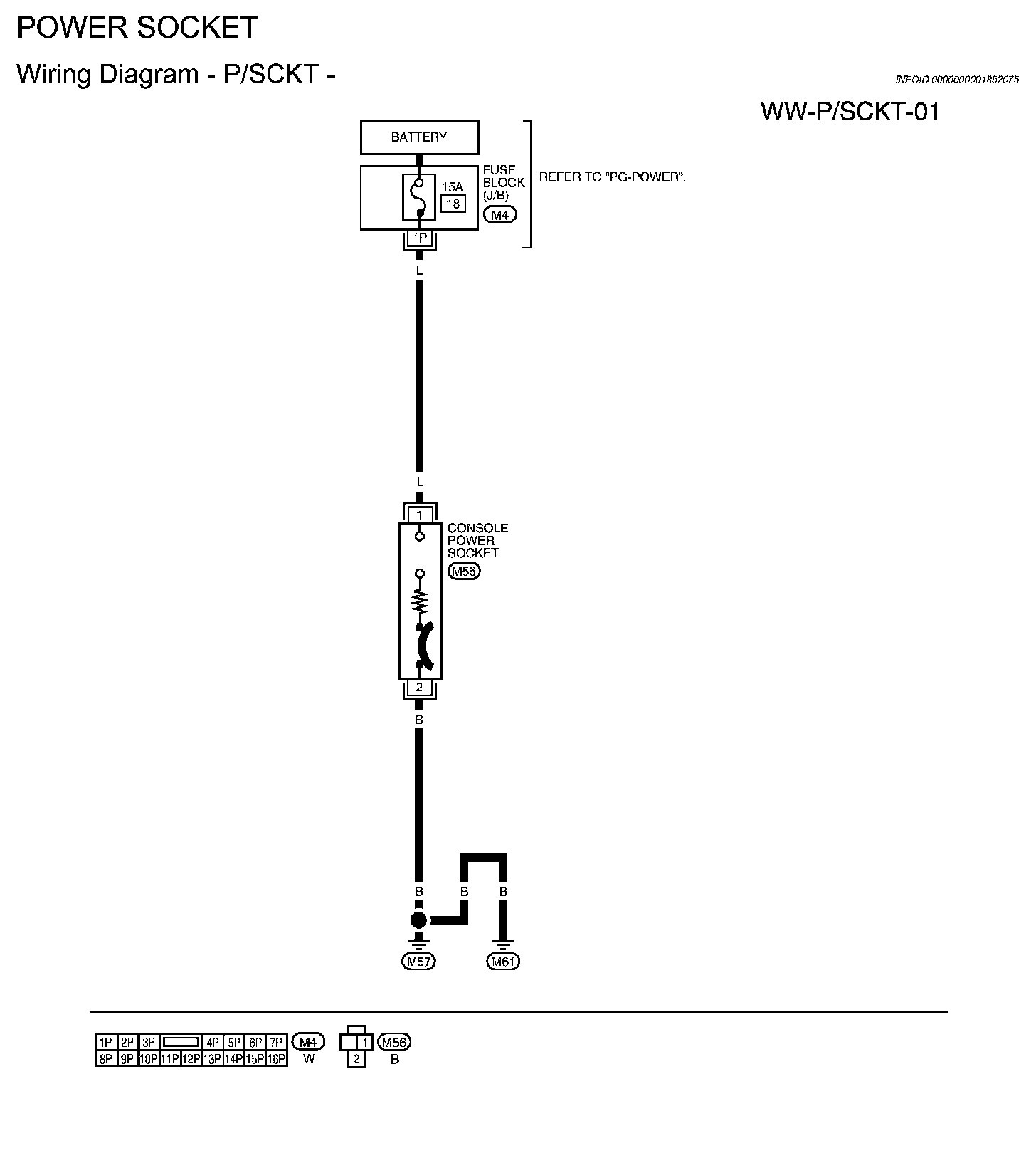

Wiring Diagram - P/SCKT -

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
