BL-D/LOCK

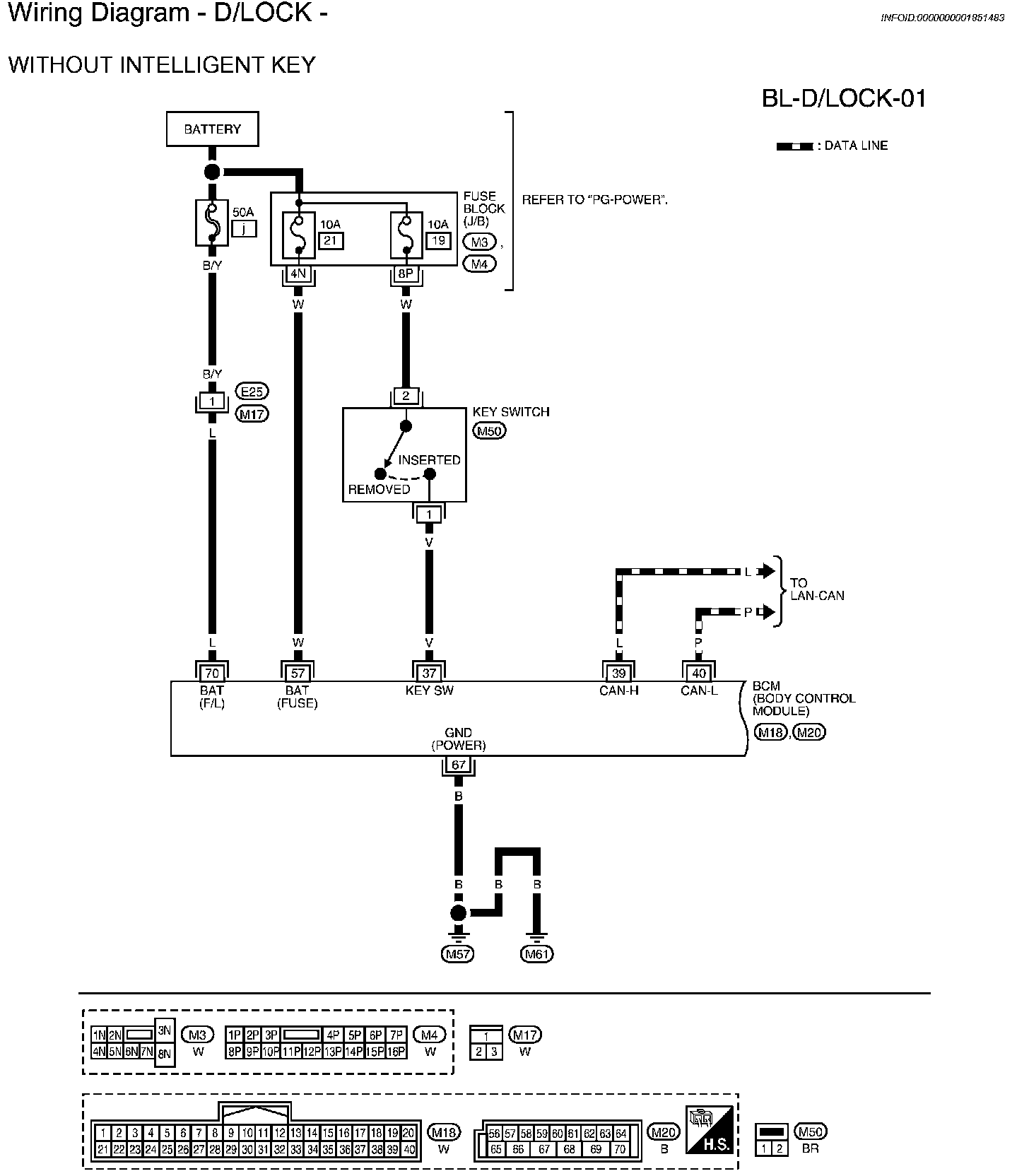

BL-D/LOCK-01:

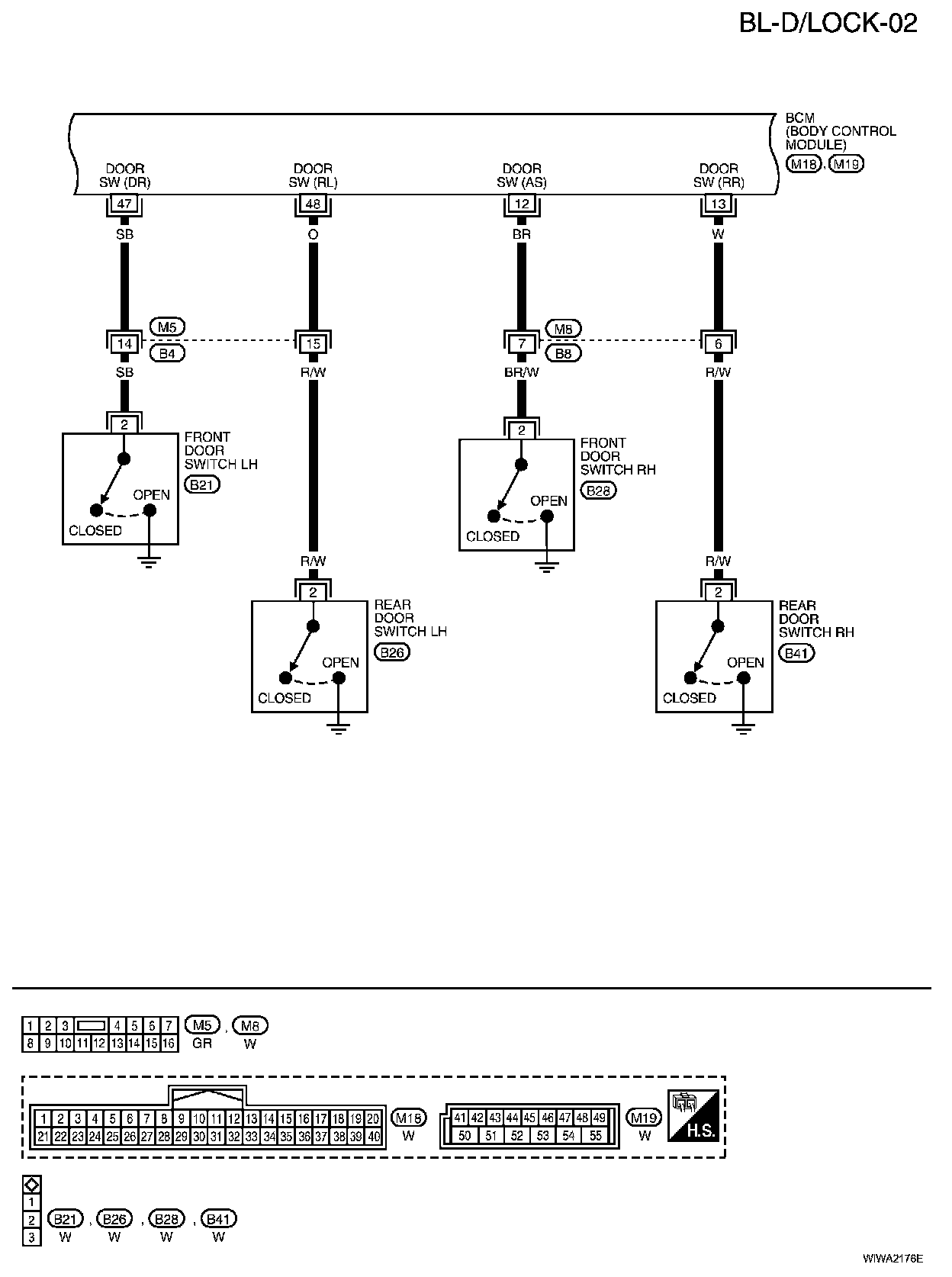

BL-D/LOCK-02:

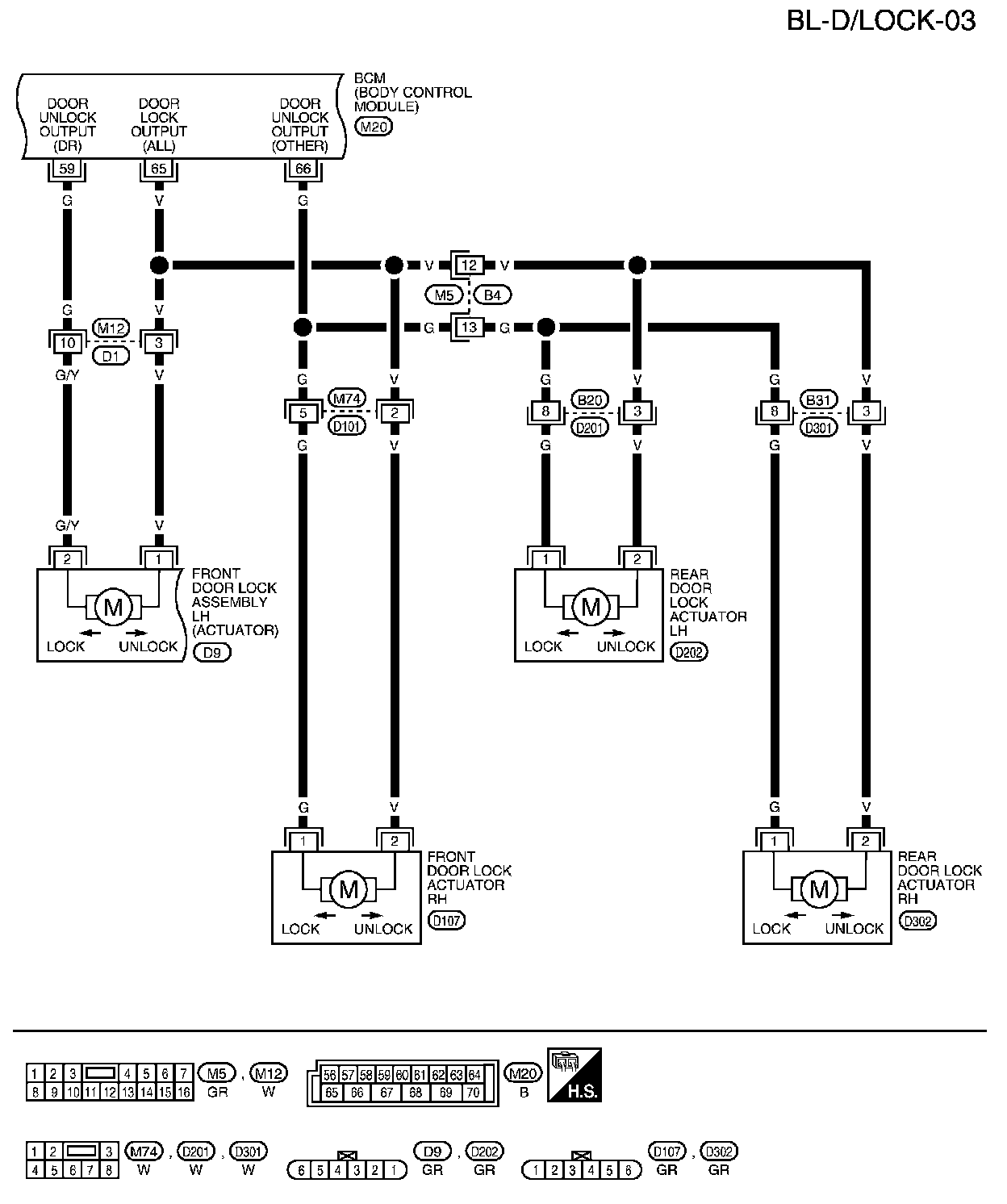

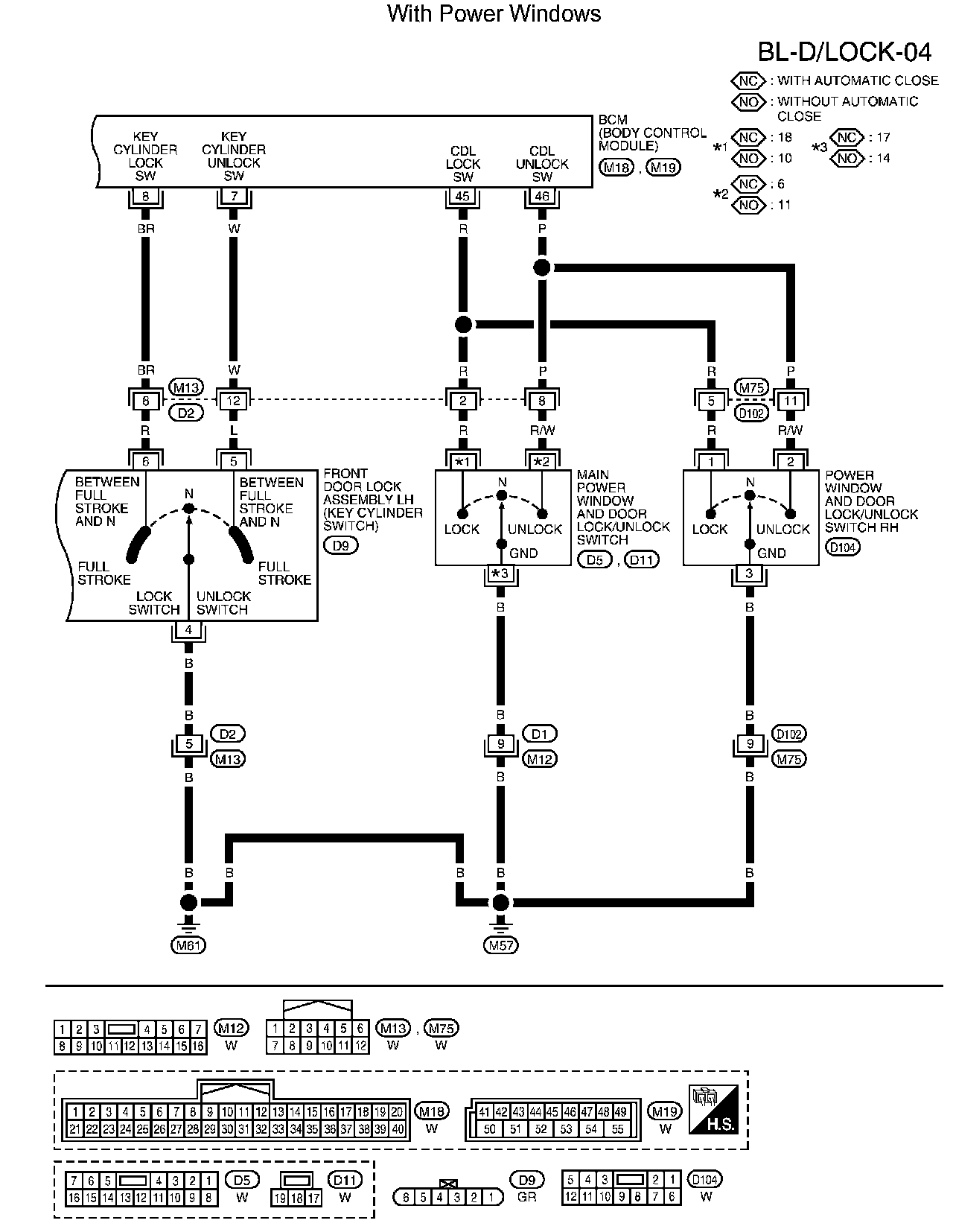

BL-D/LOCK-03:



BL-D/LOCK-04:

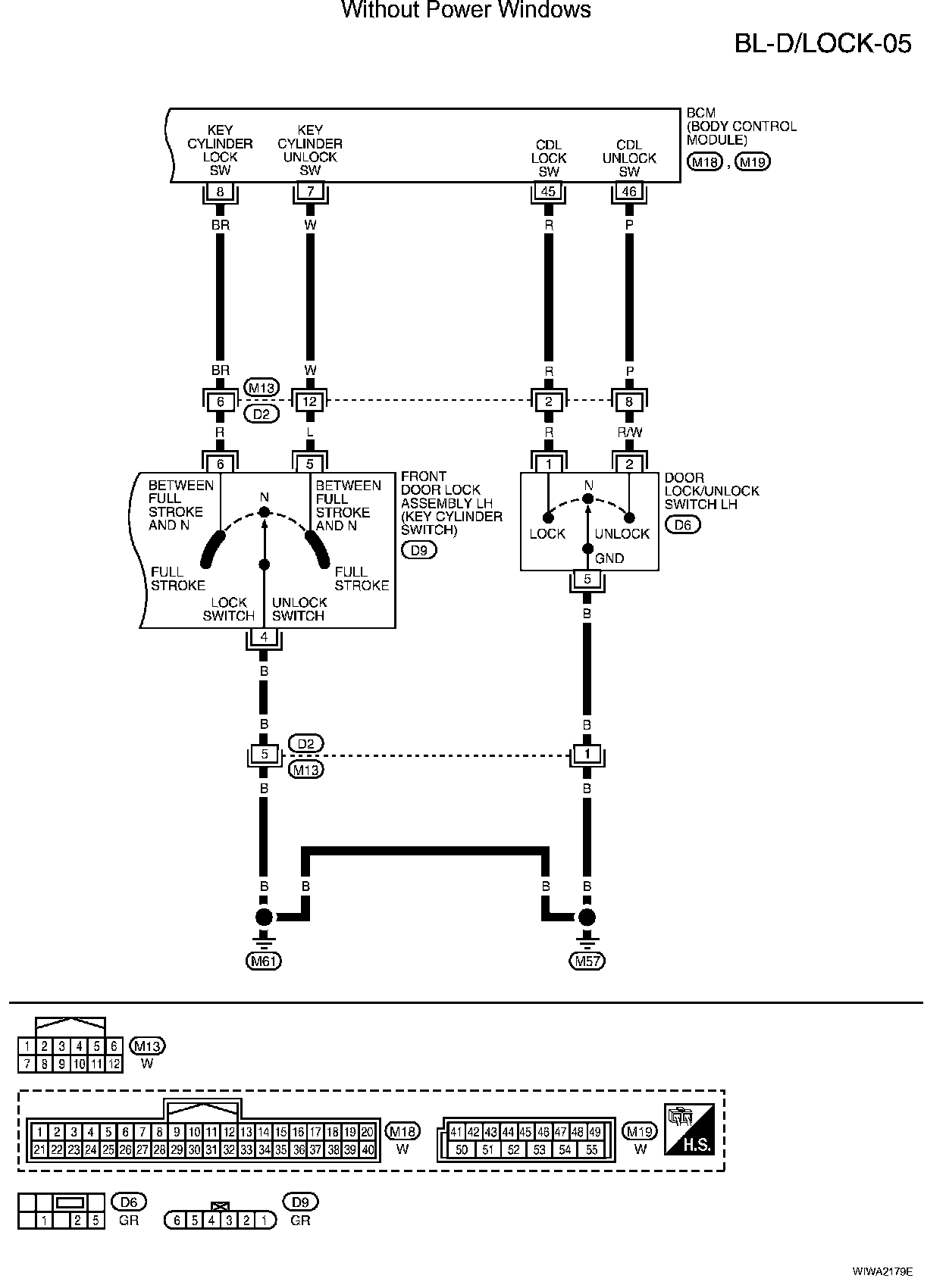

BL-D/LOCK-05:

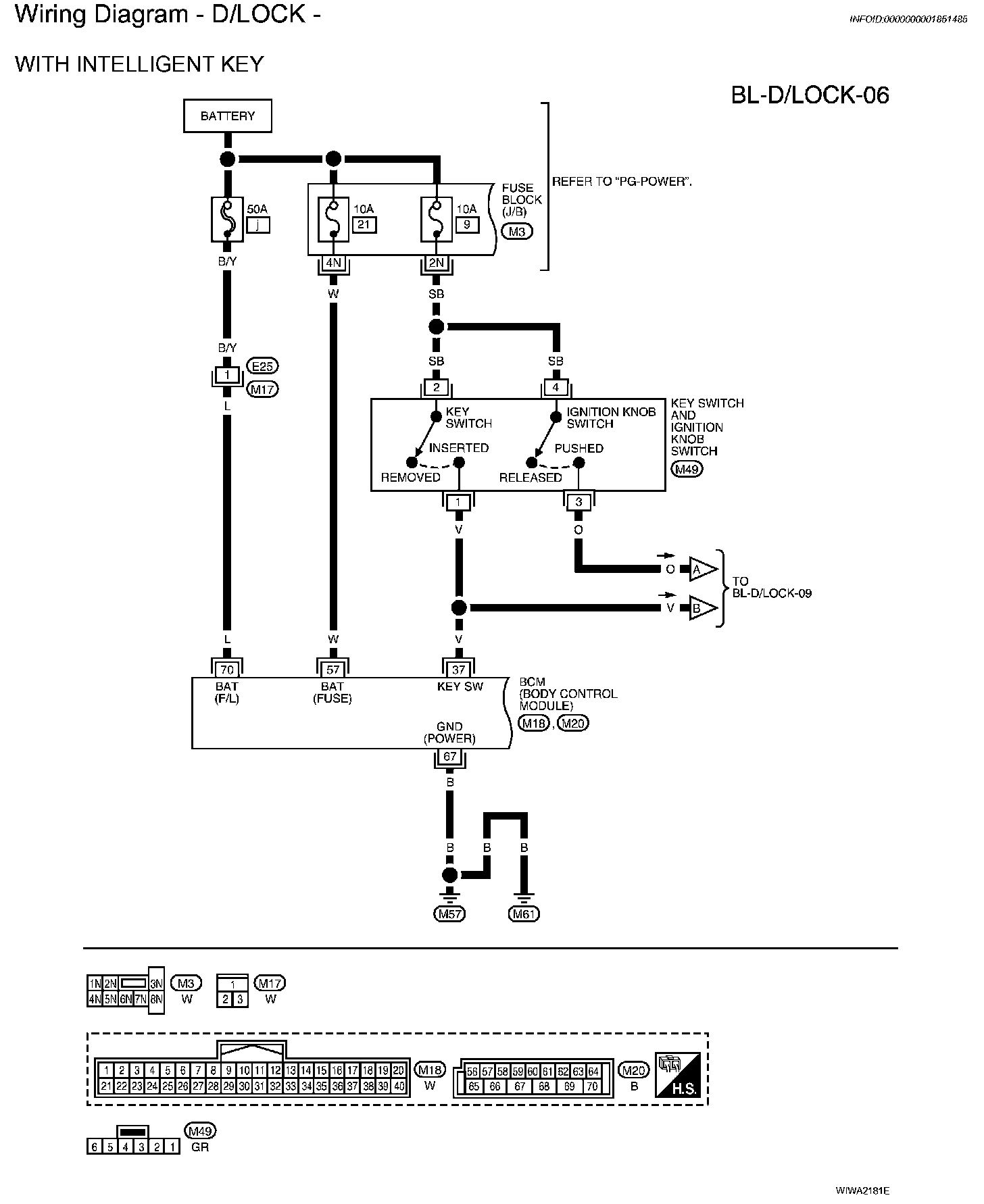

BL-D/LOCK-06:

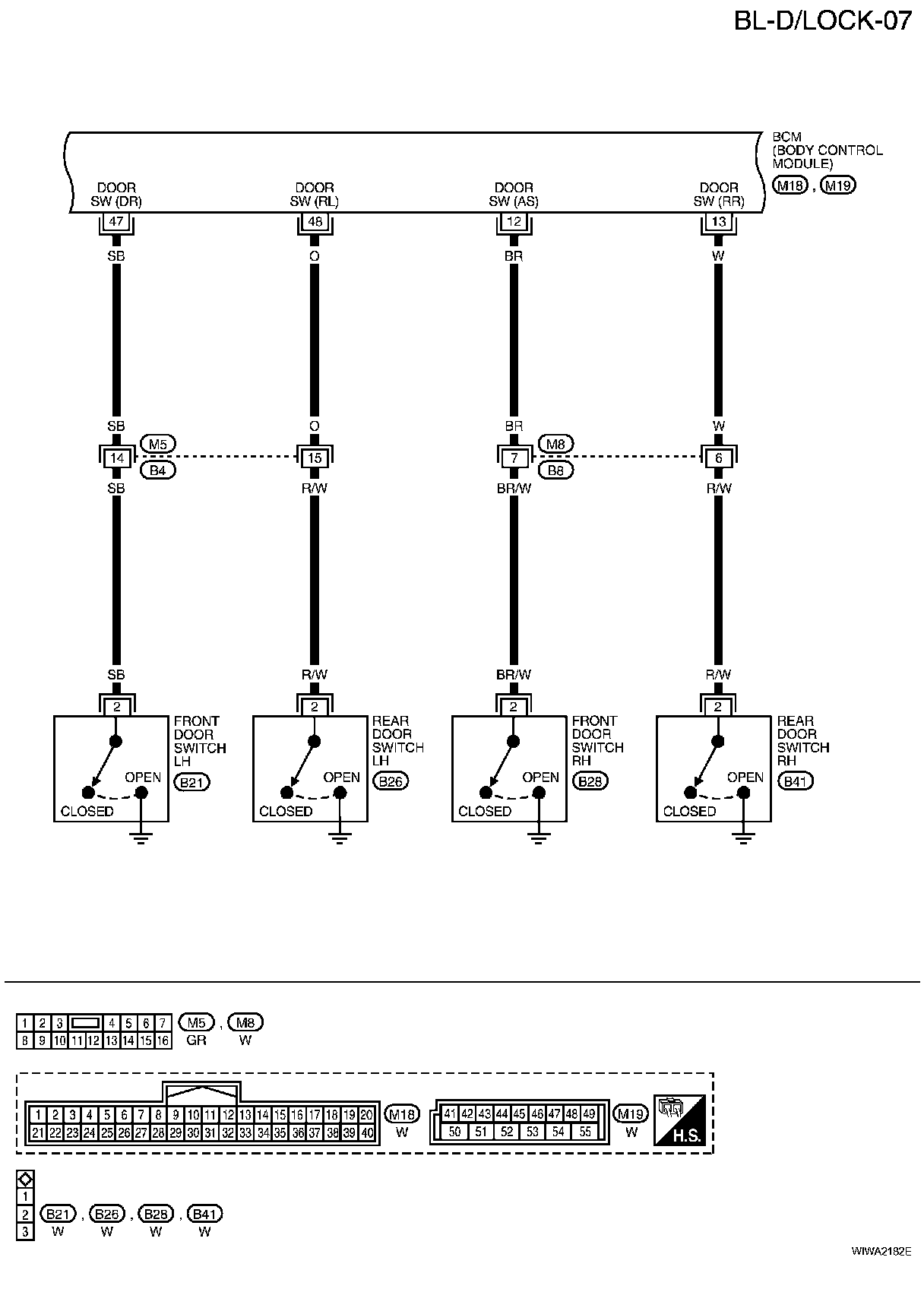

BL-D/LOCK-07:

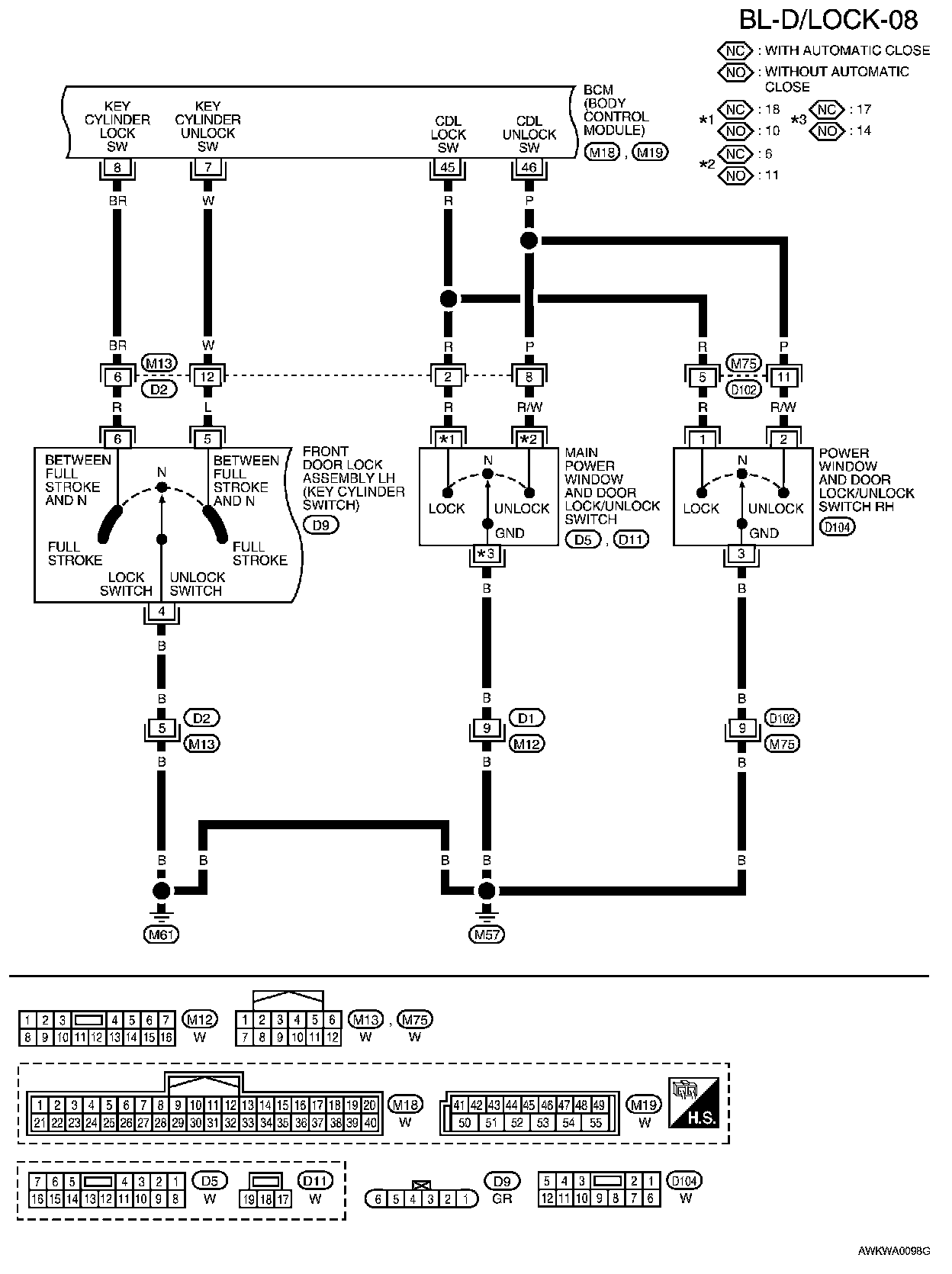

BL-D/LOCK-08:

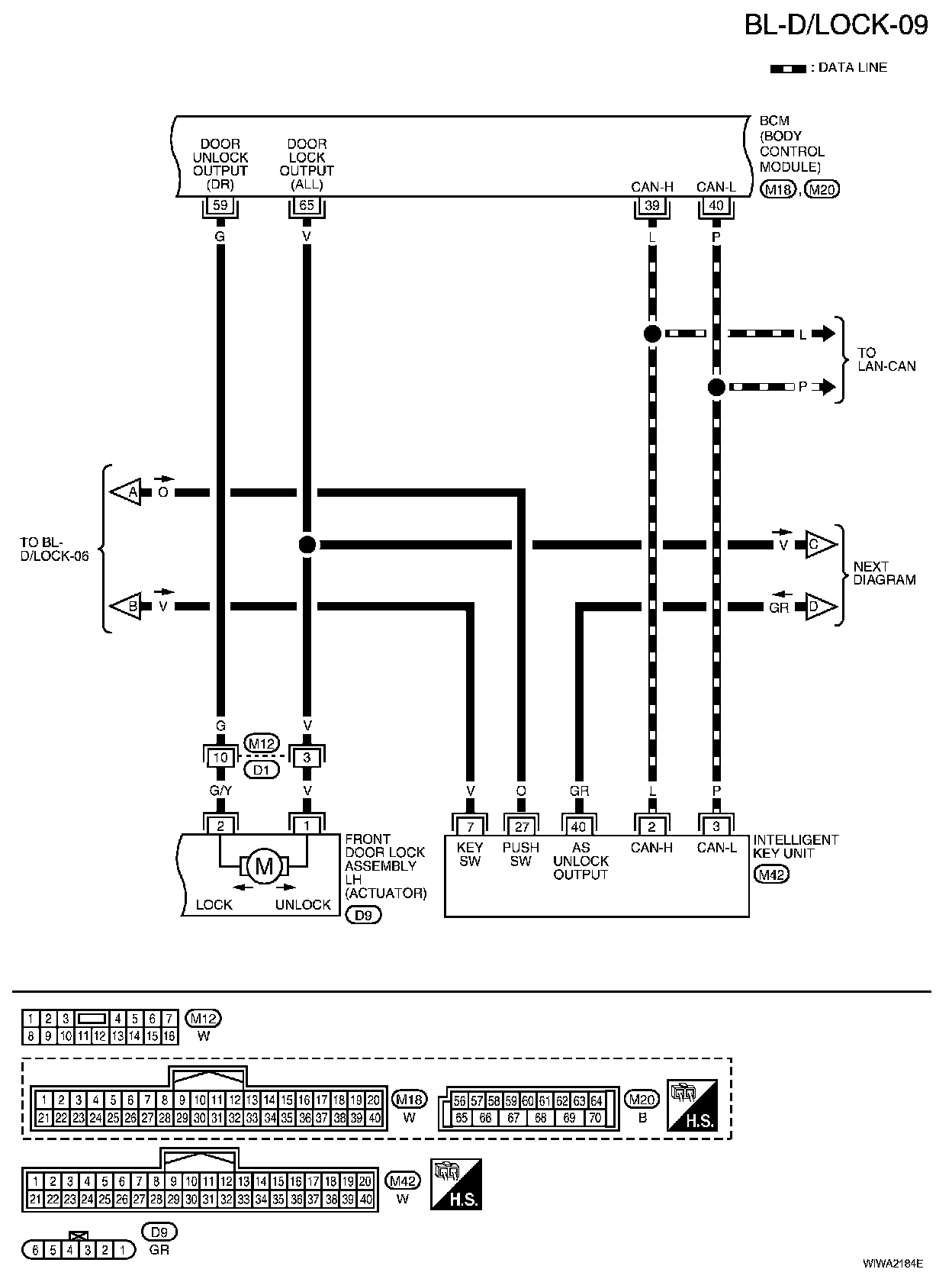

BL-D/LOCK-09:

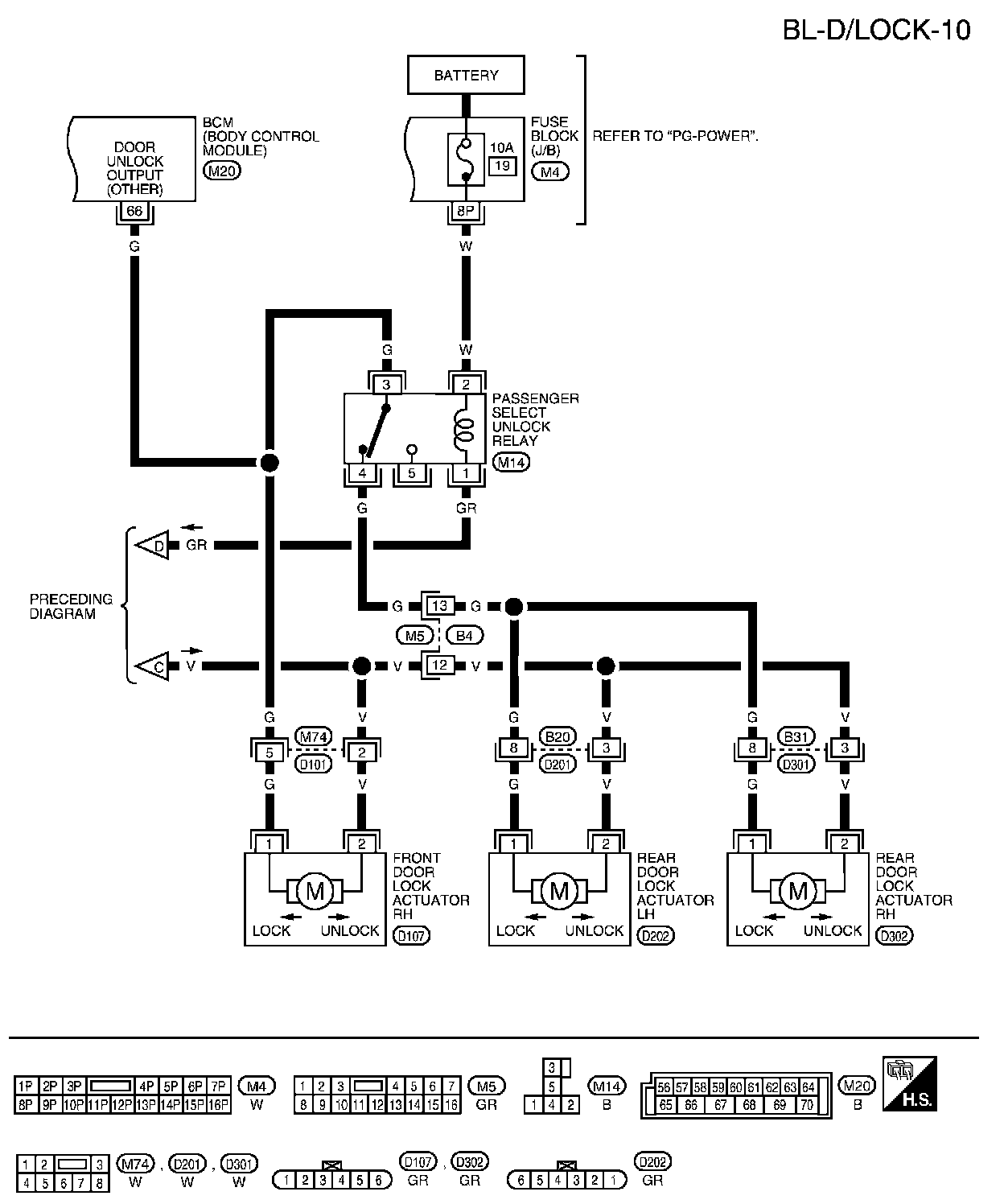

BL-D/LOCK-10:
