AV-AUDIO

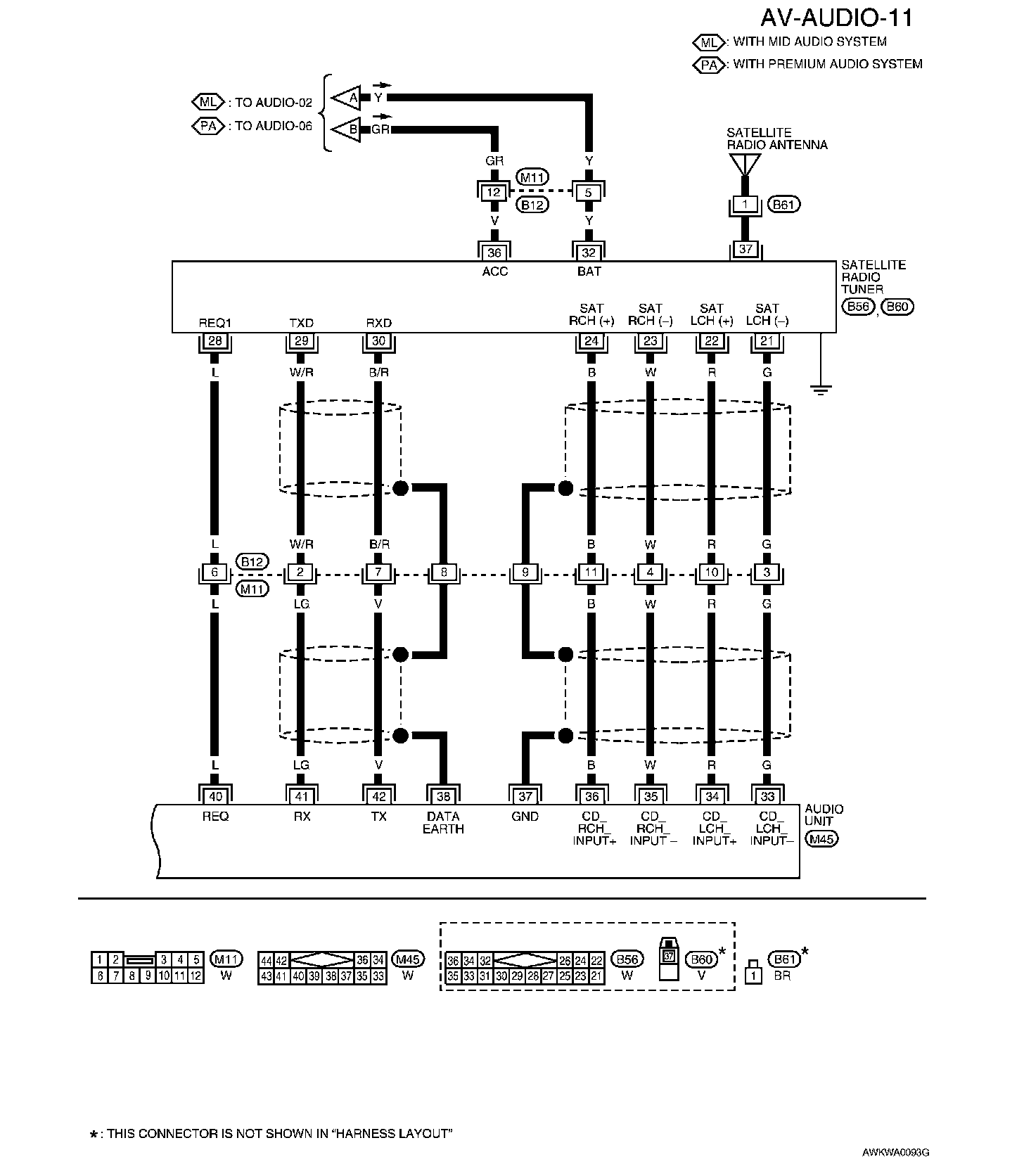

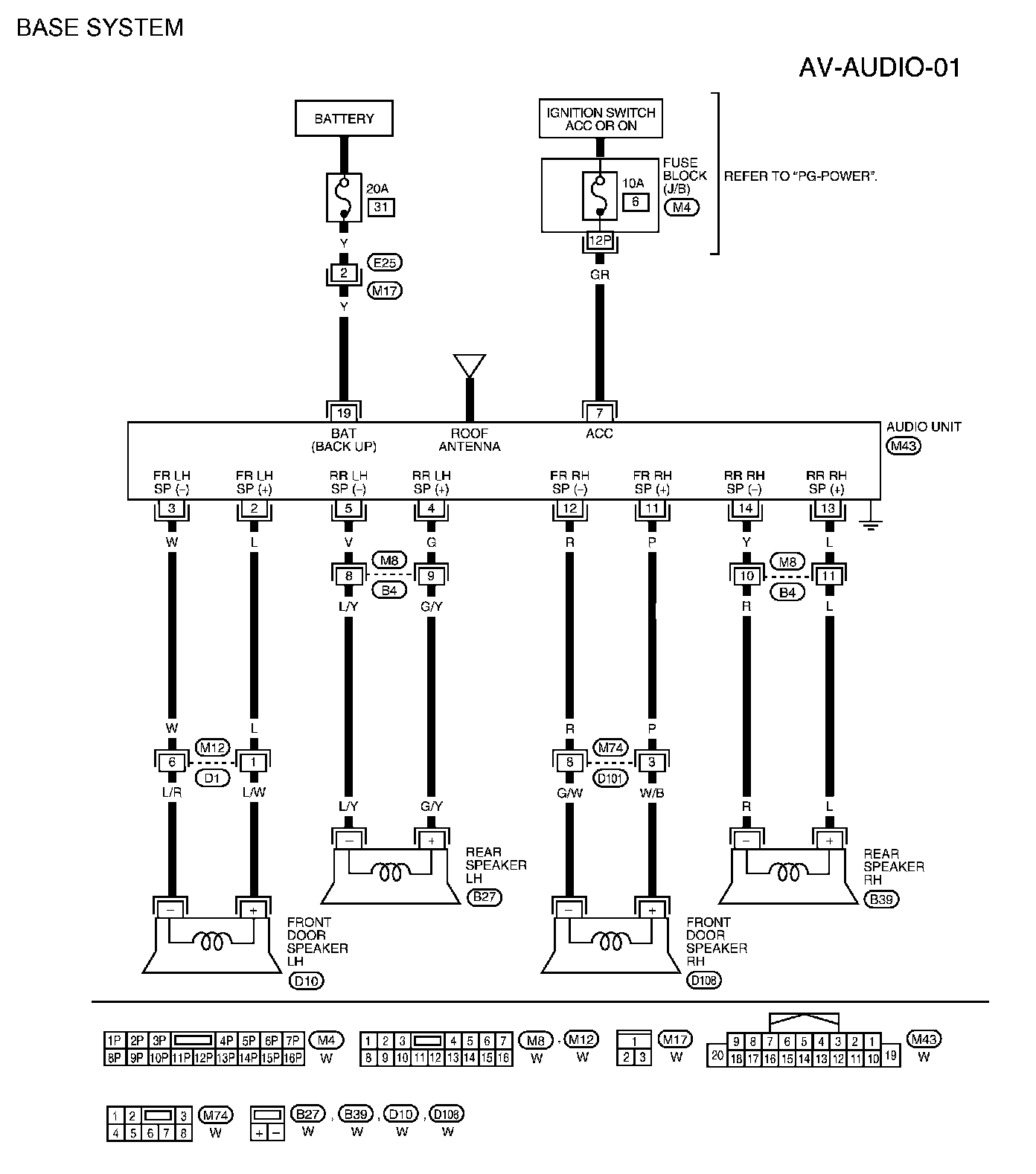

AV-AUDIO-01:

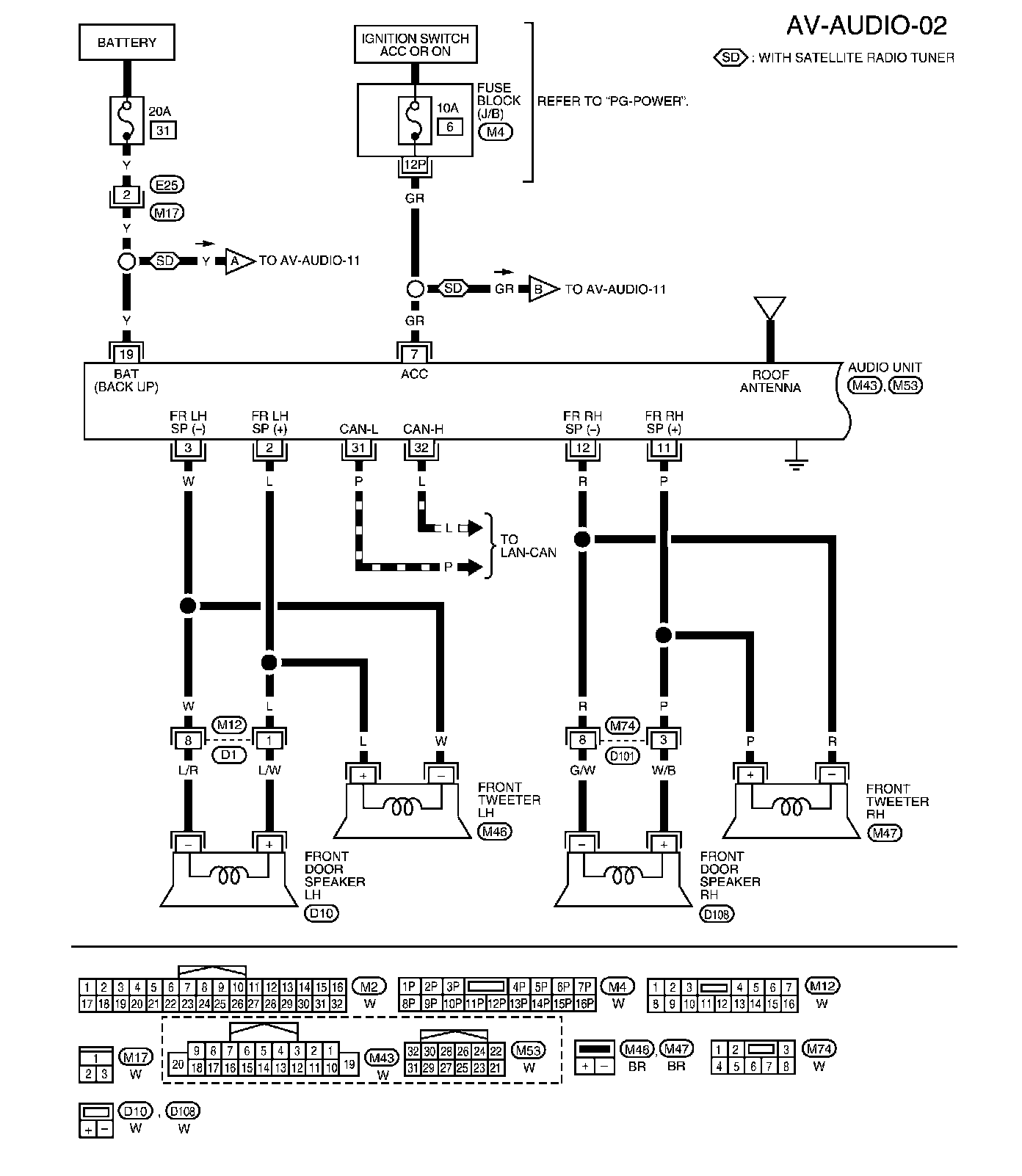

AV-AUDIO-02:

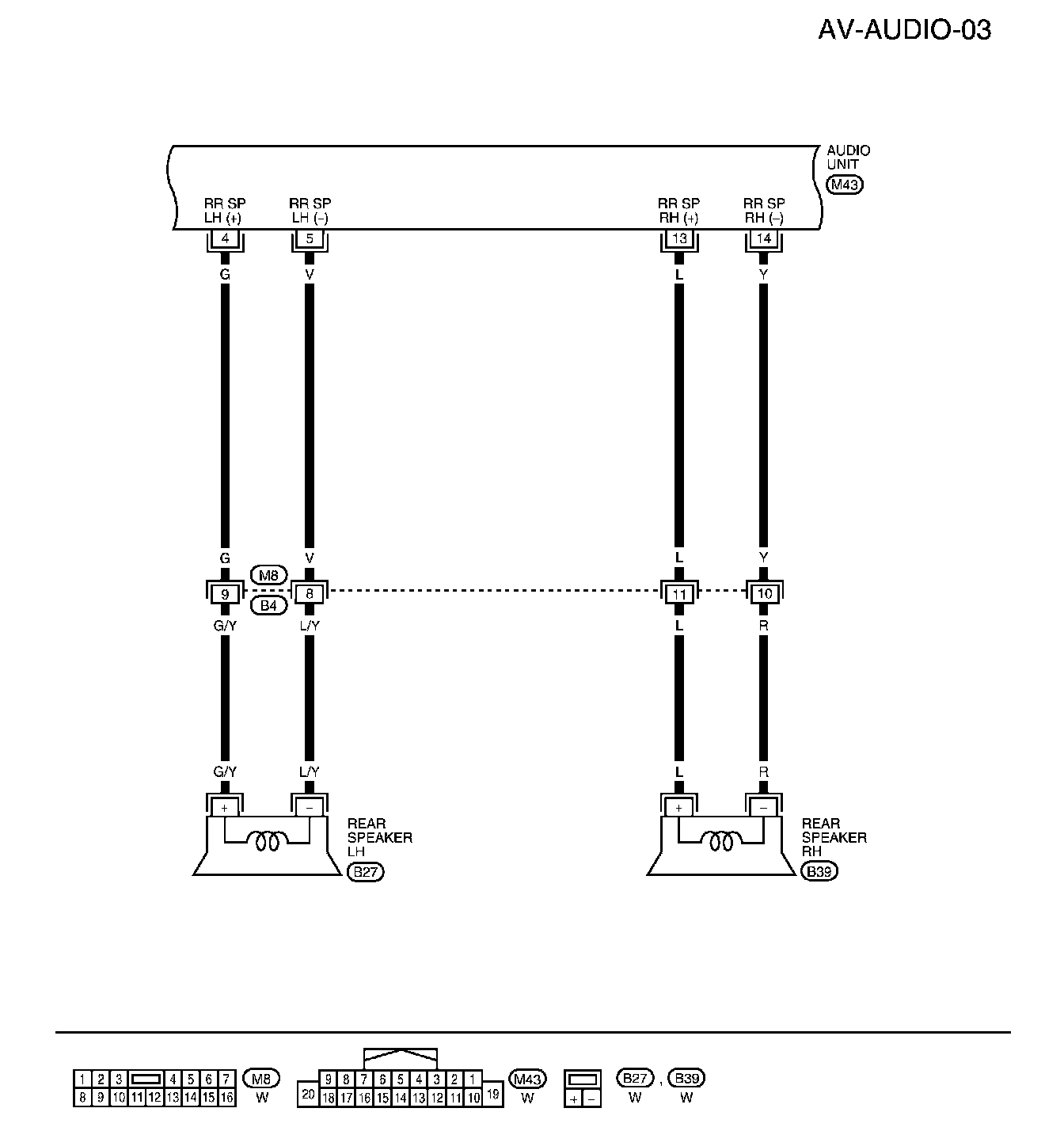

AV-AUDIO-03:

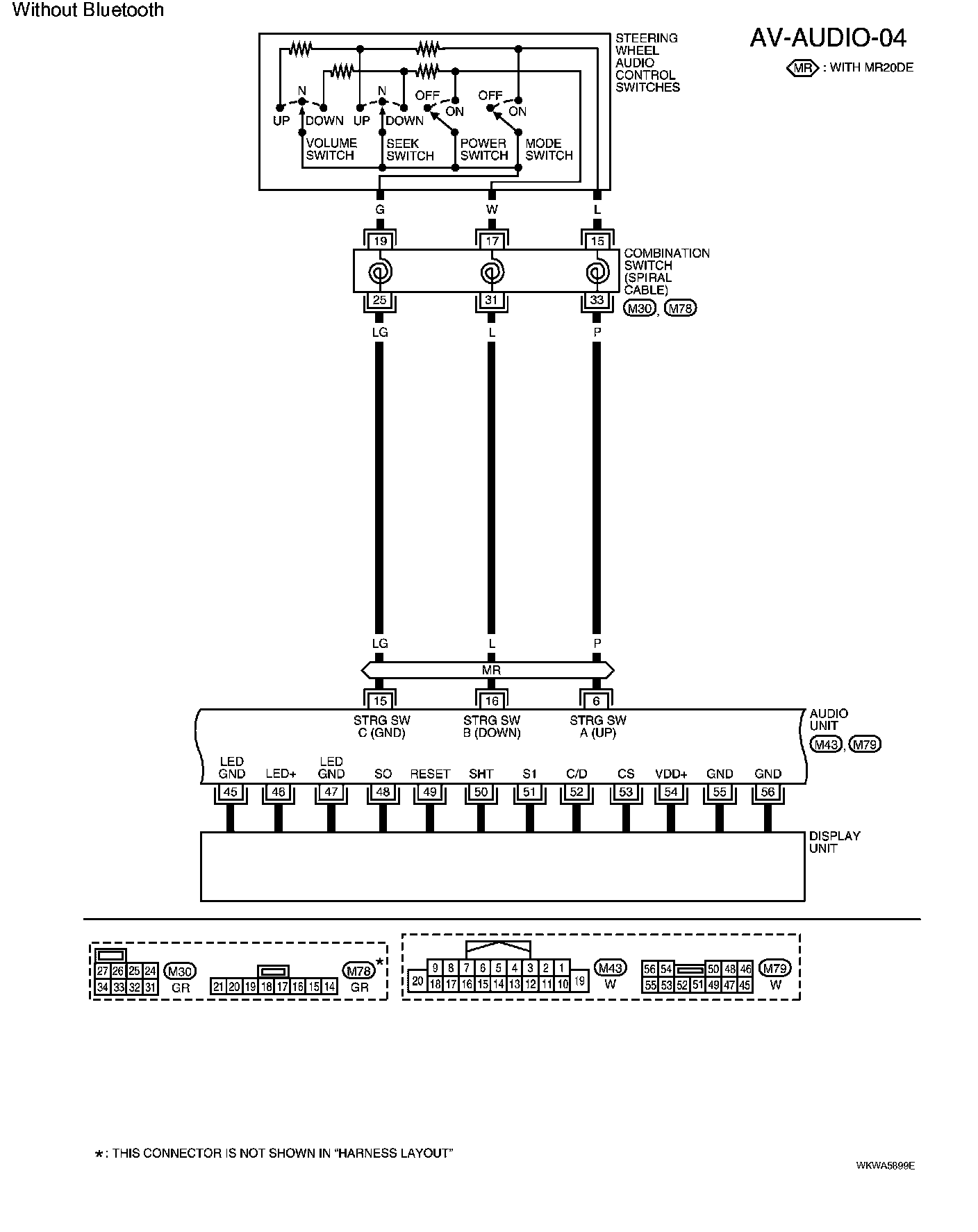

AV-AUDIO-04:

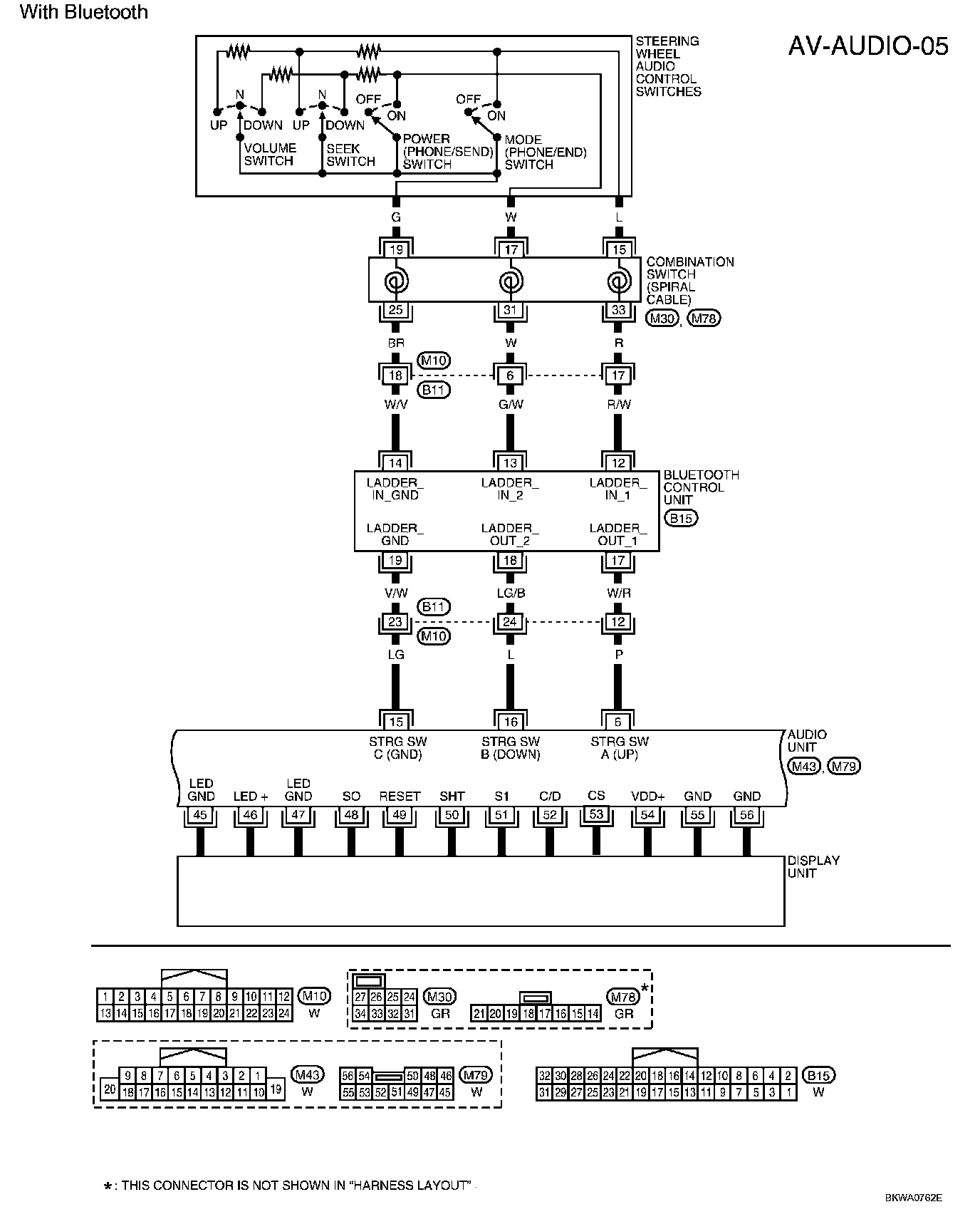

AV-AUDIO-05:

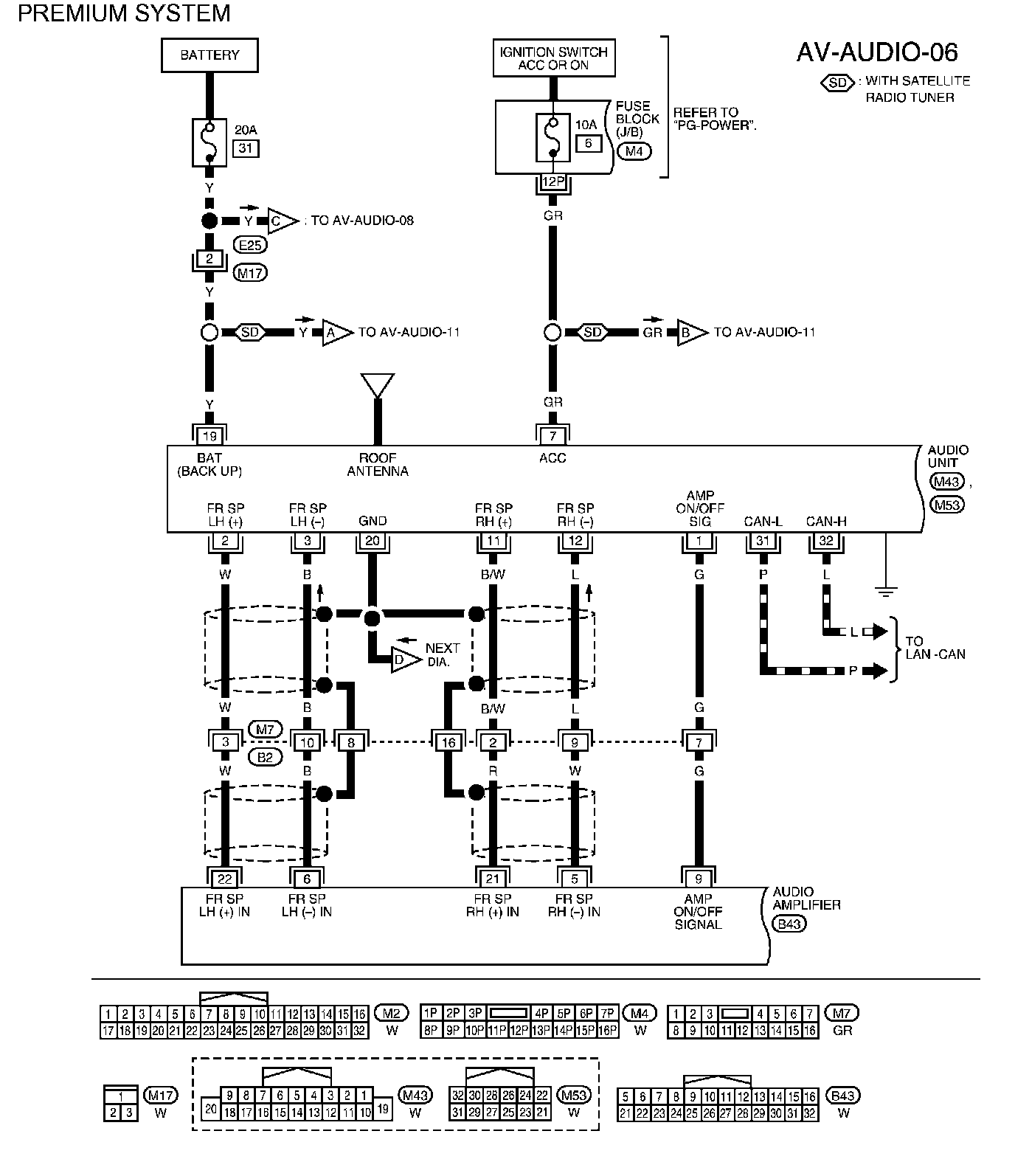

AV-AUDIO-06:



AV-AUDIO-07:

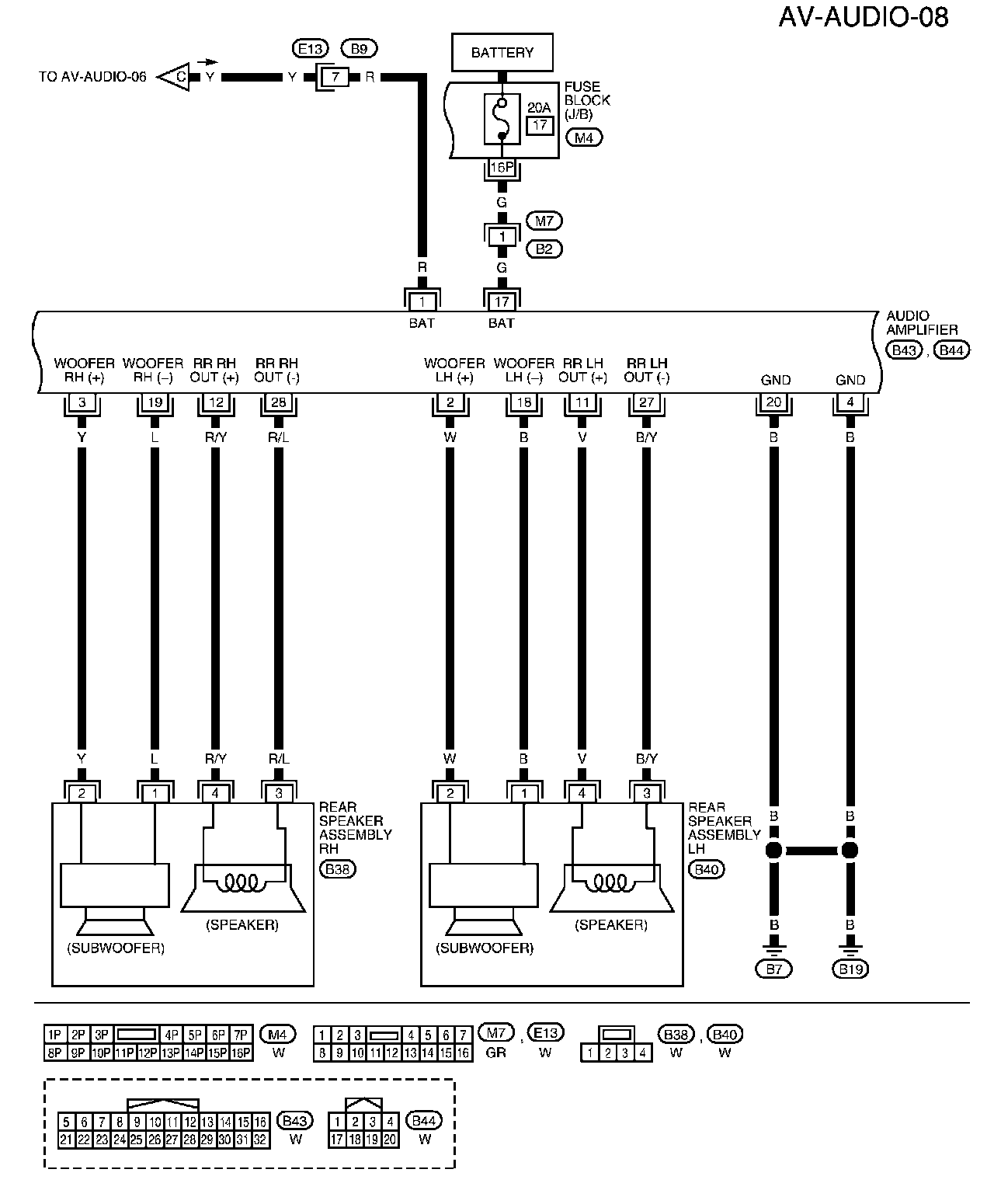

AV-AUDIO-08:

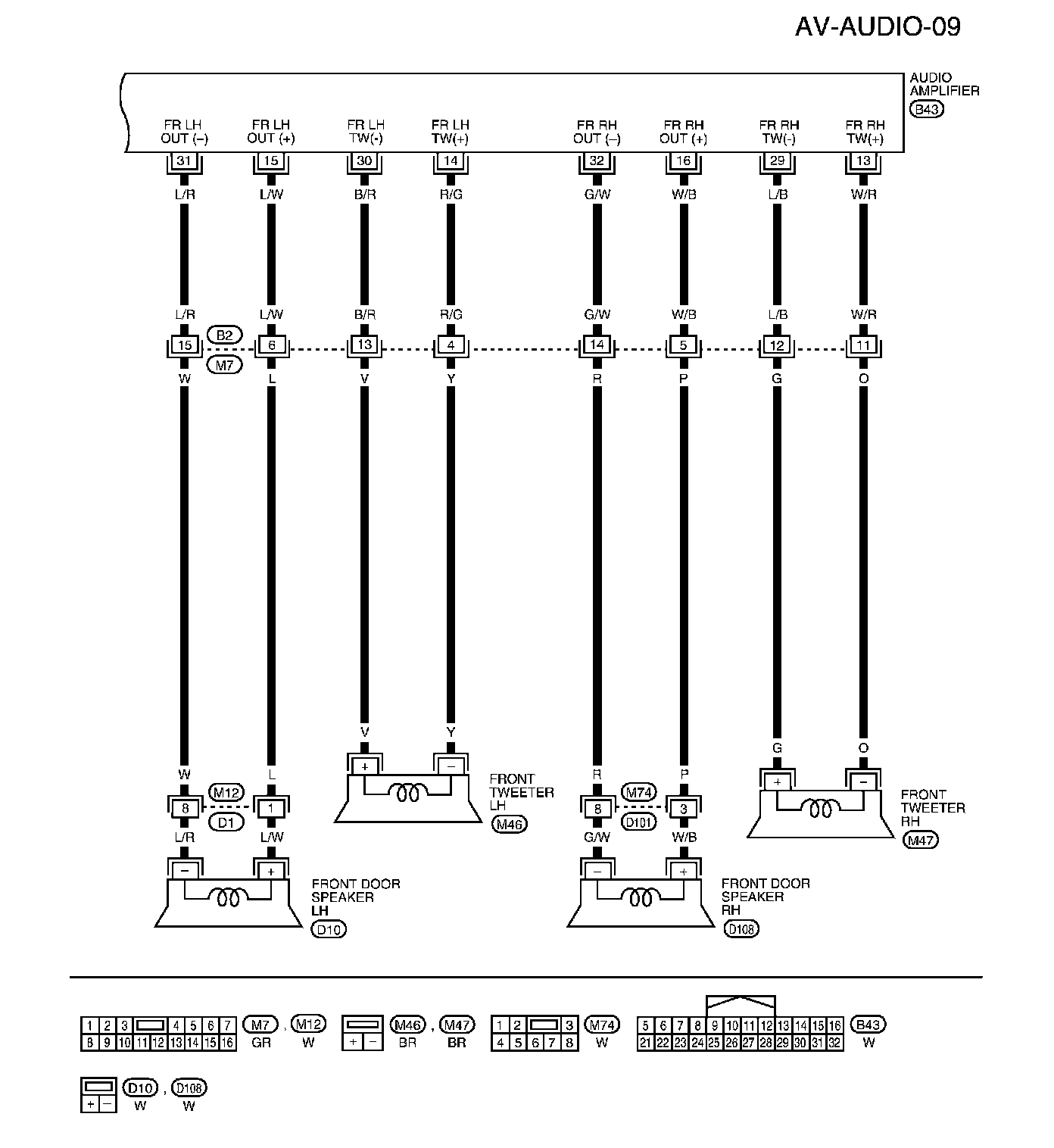

AV-AUDIO-09:



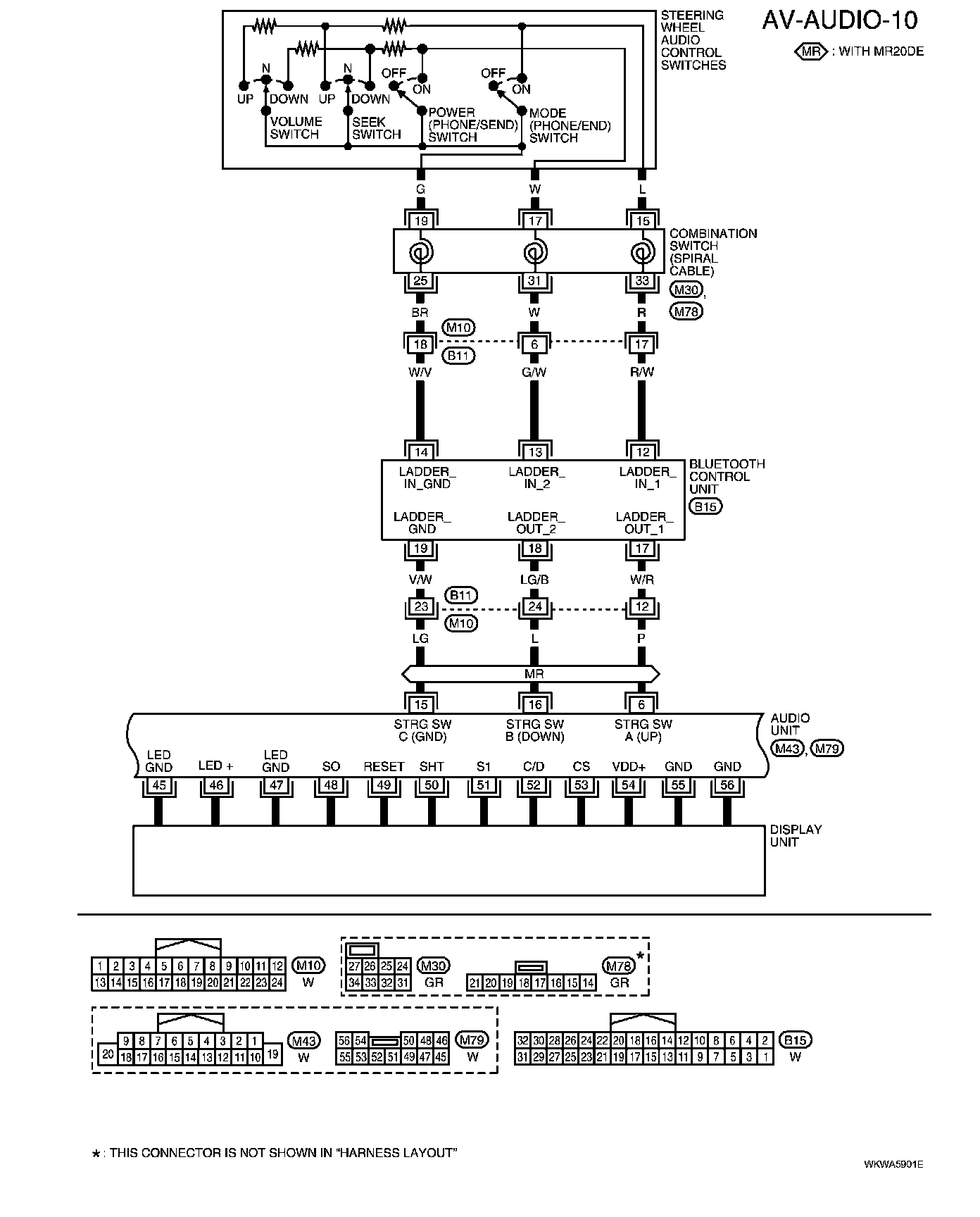

AV-AUDIO-10:



AV-AUDIO-11:
