NATS (Nissan Anti-Theft System)

BL-NATS-01:

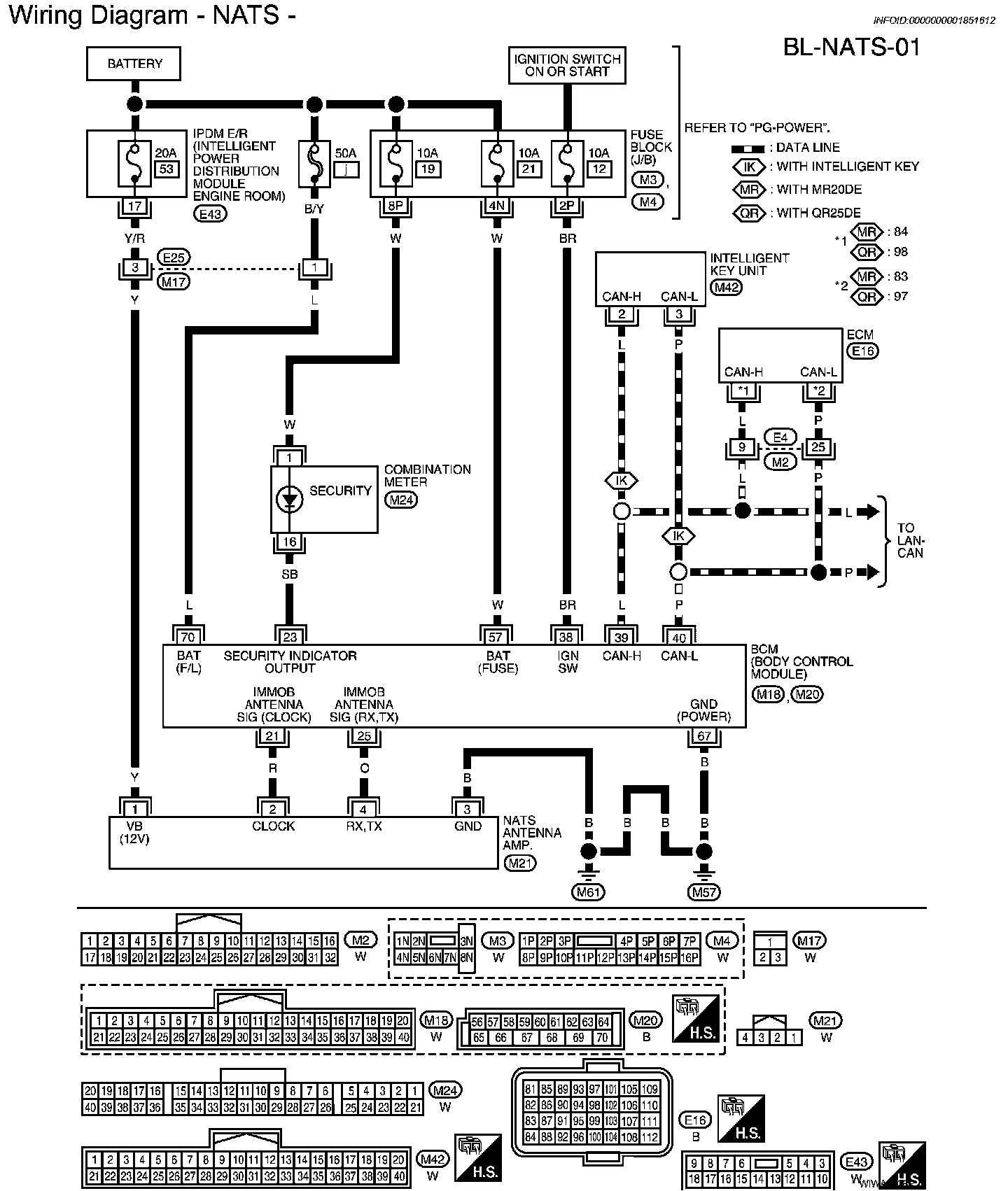

Wiring Diagram - NATS -

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
