Removal and Replacement

REAR SEAT

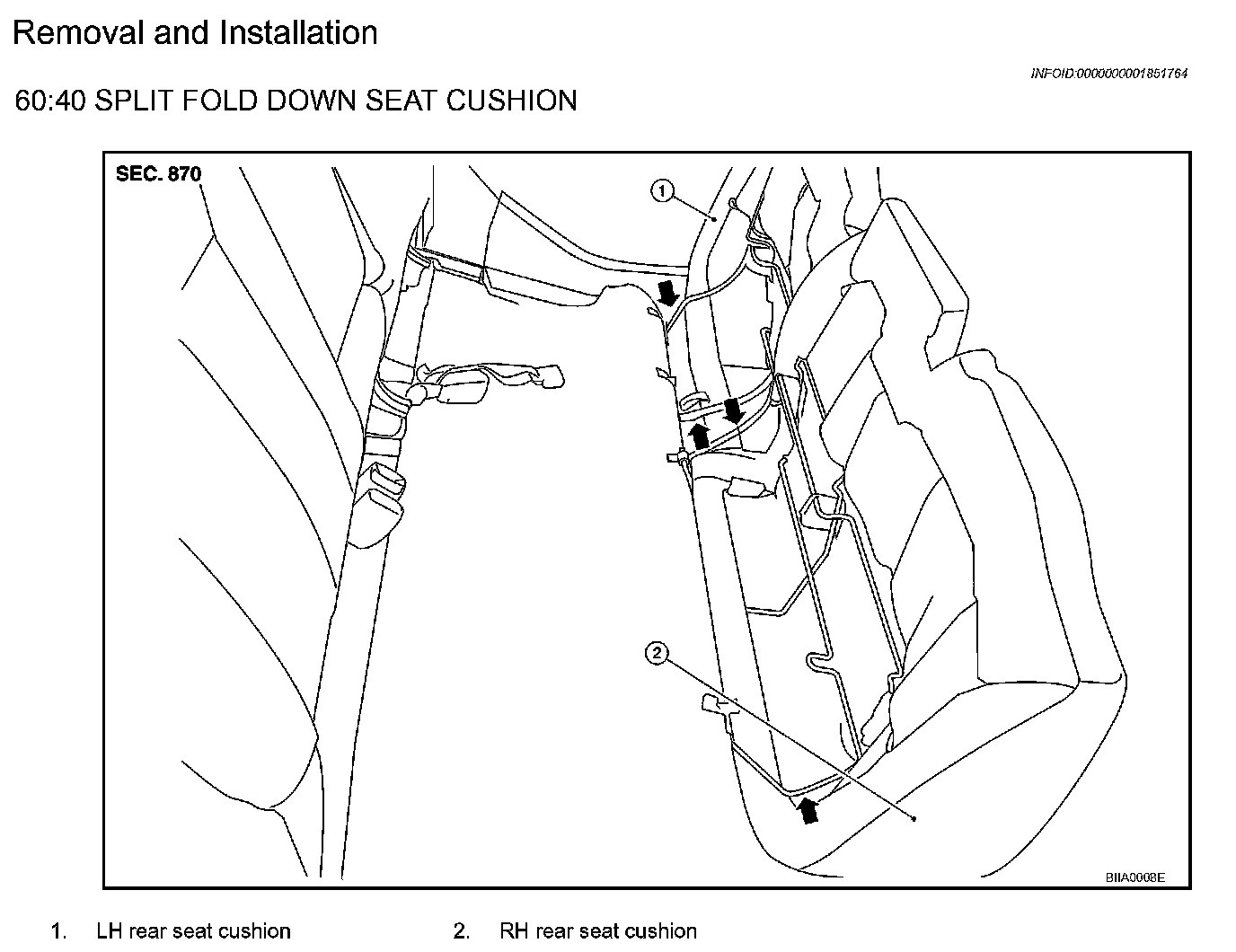

60:40 SPLIT FOLD DOWN SEAT CUSHION






Removal
1. Lift up on the front of the left and right seat cushions and fold forward toward the front of the vehicle.
2. Push the cushion wires inward to disengage from the hinge brackets and remove the seat cushion.

Installation
Installation is the reverse order of removal.

FIXED BACK SEAT CUSHION

Removal





1. Remove the rear seat cushion trim and pad.

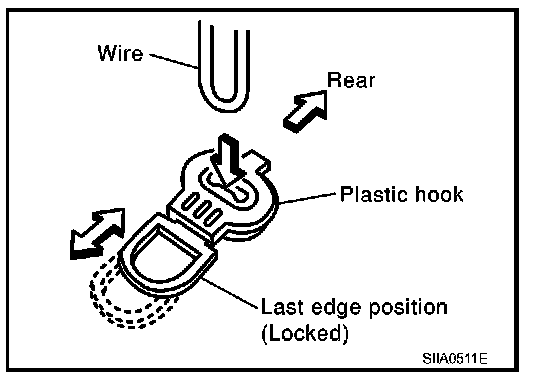

- Pull the lock at the front bottom of the seat cushion forward (1 for each side), and pull the seat cushion upward to release the wire from the plastic hook, then pull the seat cushion forward to remove.

Installation
Installation is the reverse order of removal.
