Sunroof Motor Assembly Power Supply and Ground Circuit Inspection

SUNROOF

SUNROOF MOTOR ASSEMBLY POWER SUPPLY AND GROUND CIRCUIT INSPECTION

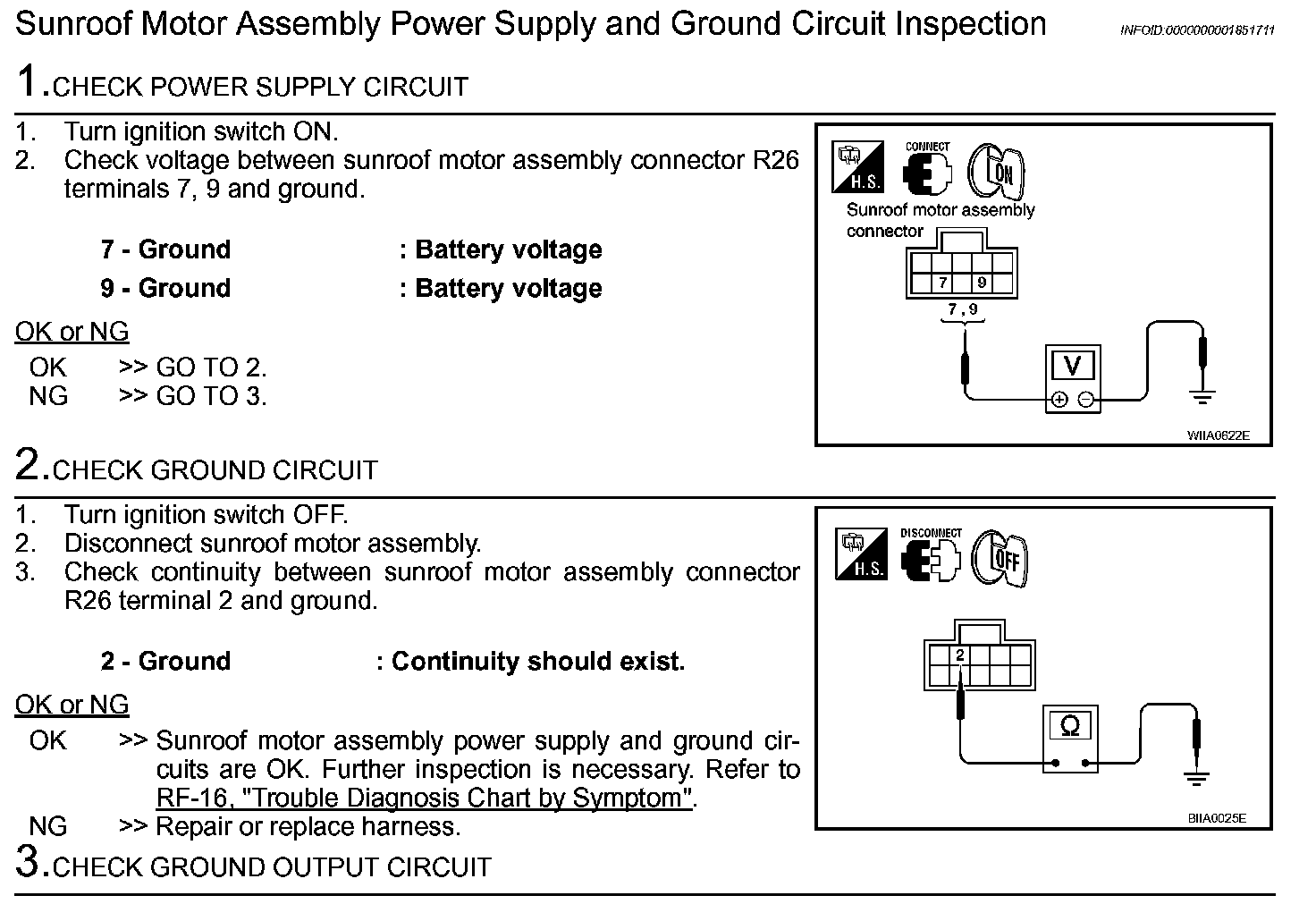

Step 1-3:

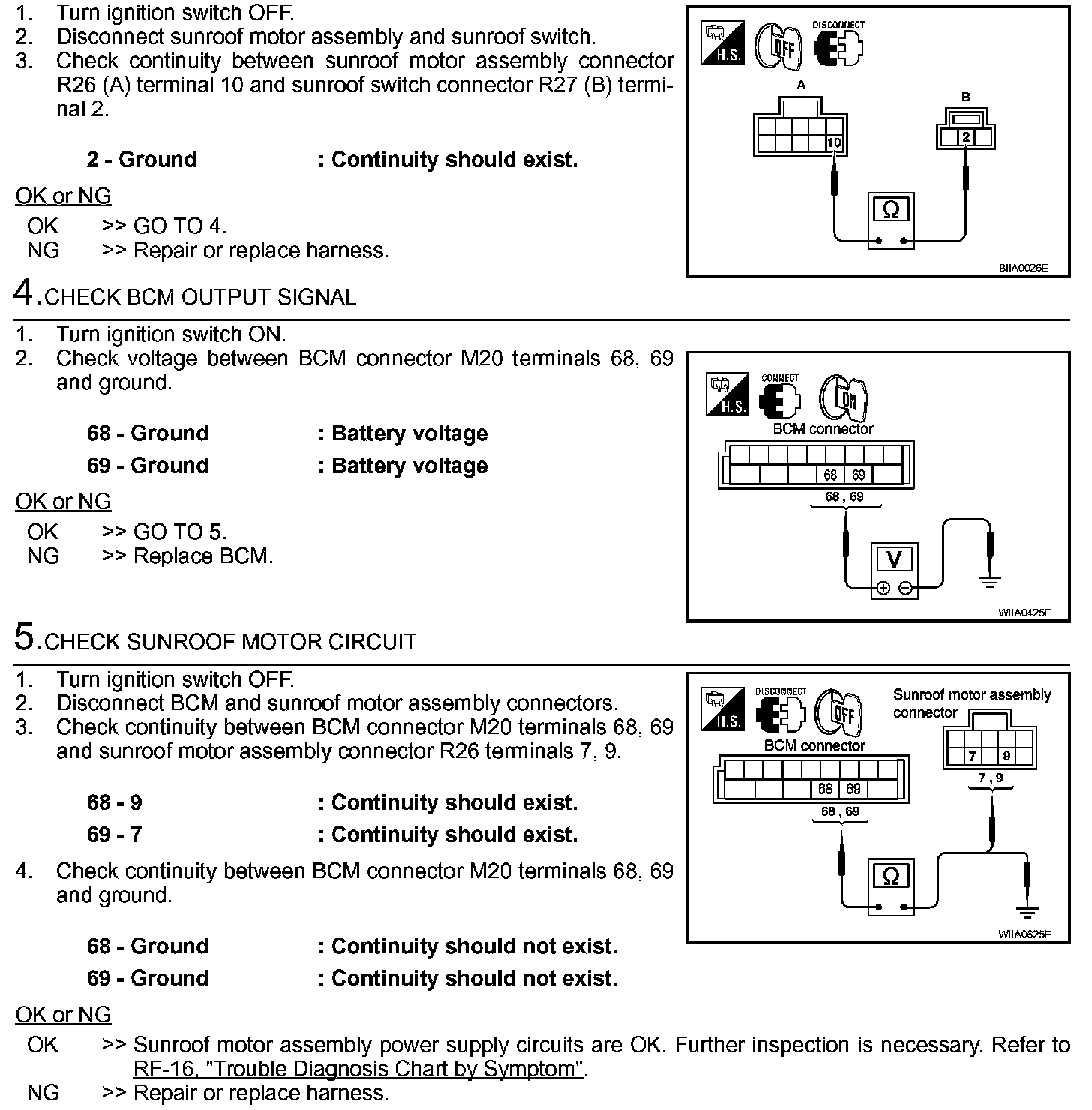

Step 3 (Continued)-5:
