Electrical Diagrams

SUNROOF

Wiring Diagram - SROOF -

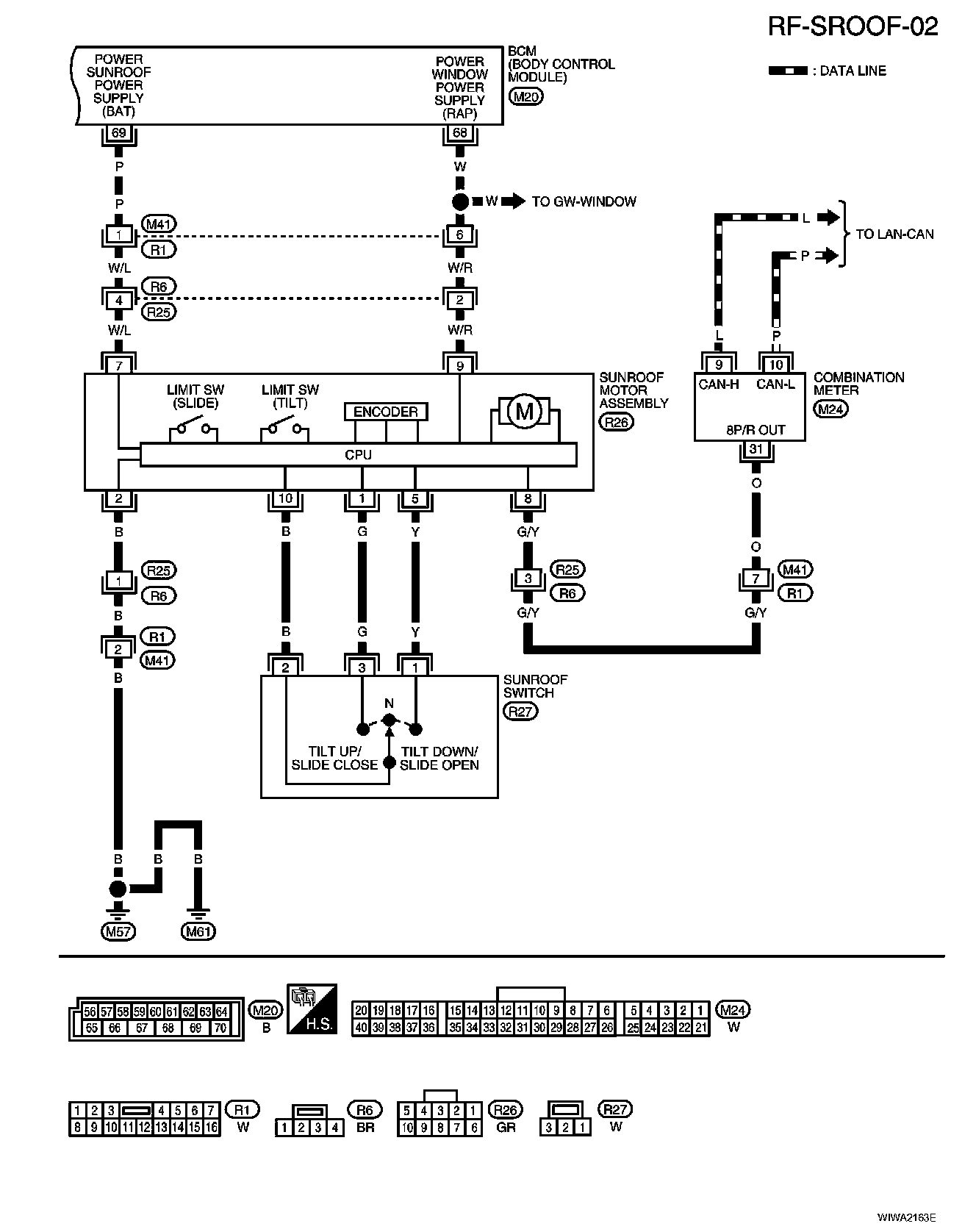

Wiring Diagram - SROOF - Part 1:




Wiring Diagram - SROOF - Part 2:
