Inside Mirror

INSIDE MIRROR

Removal and Installation






REMOVAL

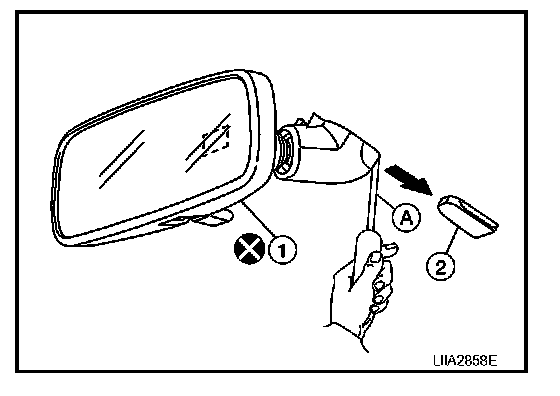

Insert a suitable tool to release the inside mirror (A). Slide the inside mirror (1) upward and remove the inside mirror from the base (2).

CAUTION:
- Do not use excessive force to remove the inside mirror because it is inserted tightly into the mirror base.
- Do not reuse the inside mirror removed from mirror base.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: Be sure to insert the inside mirror to the mirror base until the pawl is engaged to the mirror base.
