Door Mirror Assembly

DOOR MIRROR

Removal and Installation






CAUTION: Be careful not to damage the mirror body.

REMOVAL
1. Remove the front door finisher.

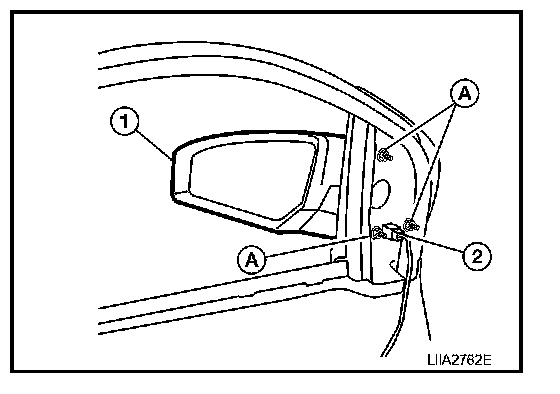

2. Disconnect the door mirror connector (2), remove the door mirror nuts (A), and remove the door mirror assembly (1).

INSTALLATION
Installation is in the reverse order of removal.
