Passenger Select Unlock Relay Circuit Inspection (With Intelligent Key)
Passenger Select Unlock Relay Circuit Inspection (With Intelligent Key)

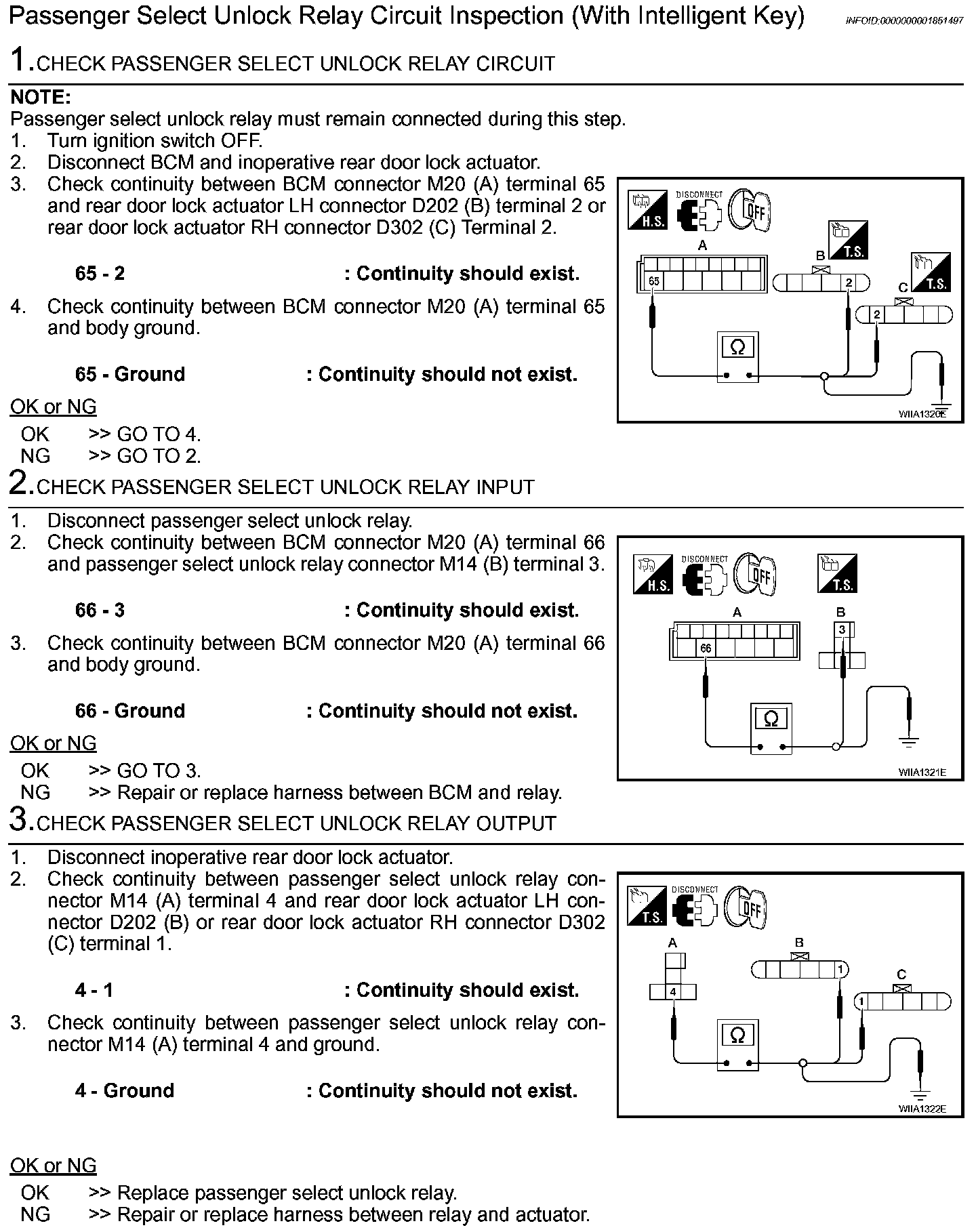

Step 1-3:

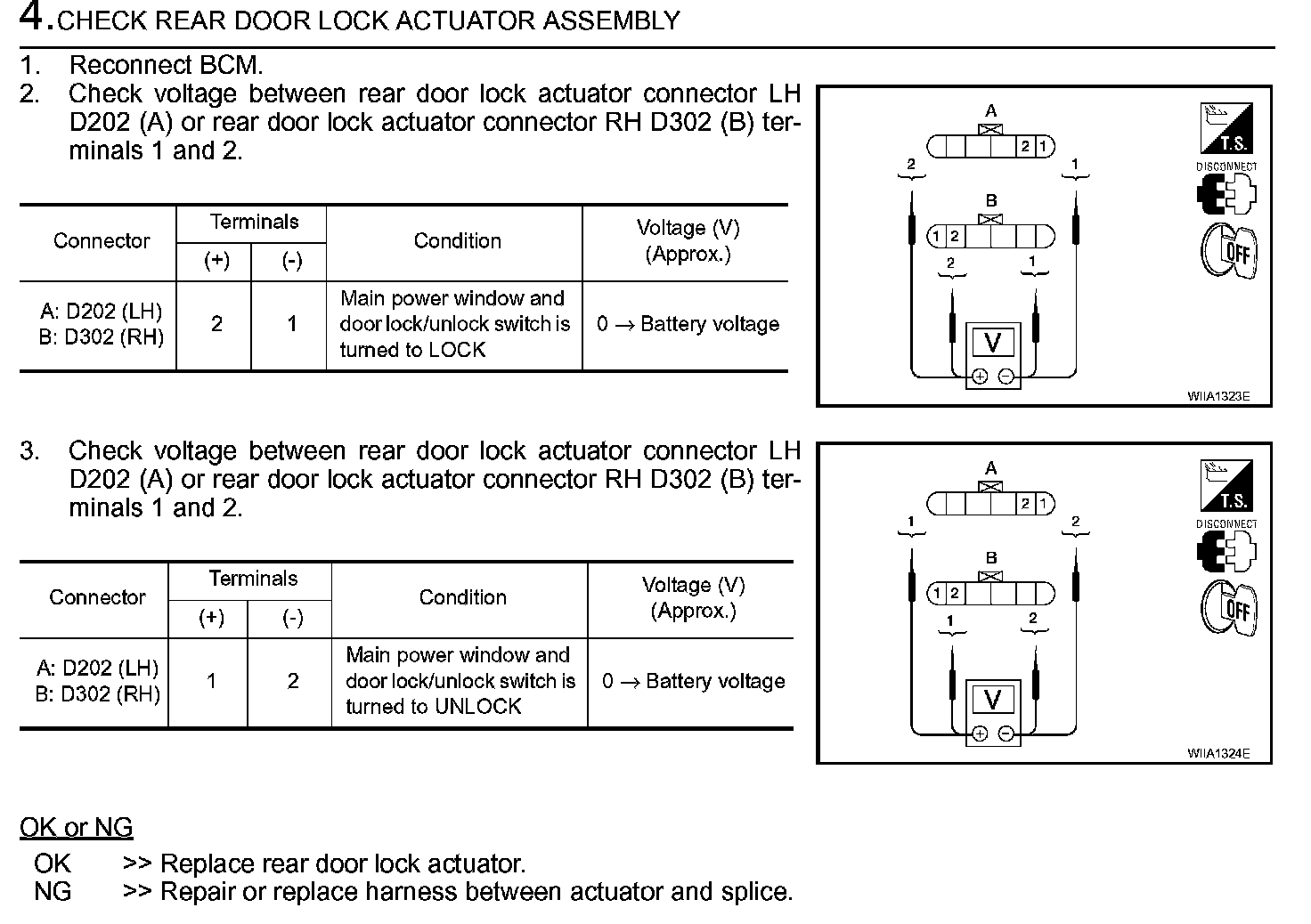

Step 4:
